Sennheiser EM 300-500 G4 (Gw1: 558-608 MHz)
UPC/EAN #615104367036
MPN #509676
True diversity receiver in a full-metal housing, increased bandwidth and transmission power, for the world's biggest live stages. For evolution wireless G4 300/500 Series systems.
Features

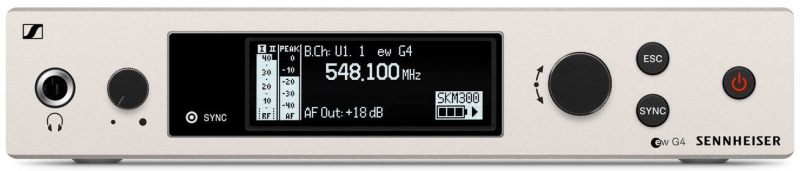

True diversity half-rack receiver in a full-metal housing with intuitive OLED displayEasy to use, fast setup timeIntegrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM SoftwareBroad range of products and existing accessories (such as microphones) allows usage in any kind of environmentUp to 88 MHz bandwidth, up to 32 channelsIncreased RF output power (10/30/50 mW)Transmission Range: up to 100 meters / 330 feetCompatible with wireless speaker system LSP 500 PRORC (remote control) switch available for the bodypack transmitter
Specifications
Frequency range: Gw1: 558-608 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket: (balanced): +18 dBu
Signal-to-noise ratio: 115 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC

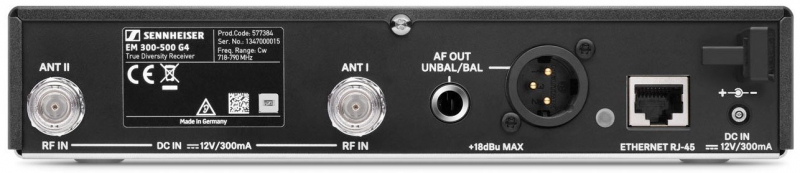

Antenna connector: 2 BNC sockets
Current consumption: 350 mA
Adjacent channel rejection: Typically 75 dB
Intermodulation attenuation: Typically 70 dB
Receiving frequency
Max. 3520 receiving frequenciesadjustable in 25 kHz steps20 frequency bankseach with up to 32 factory-preset channelsno intermodulation6 frequency banks with up to 32 programmable channels
RF sensitivity:
