UPC/EAN #615104365988     MPN #509623

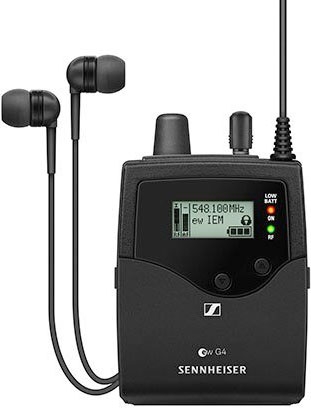

Sennheiser EK IEM G4 (G: 566-608 MHz)

$629.00

Save 20.3%, MSRP $789.00
Financing available
Free shipping in Canada. Conditions

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.



  • Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 50 mW) depending on country regulations
  • Frequency range: G: 566-608 MHz
    Dimensions: Approx. 82 x 64 x 24 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight (incl. batteries) : approx. 125 g
    Signal-to-noise ratio: approx. 90 dBA
    Switching bandwidth: up to 42 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Operating time: approx. 4 to 6 hours (depending on volume level)
    Modulation: Wideband FM
    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: 25 µA
    Adjacent channel rejection: Typically 65 dB
    Audio-Output-Power: 2 x 100 mW at 32
    Intermodulation attenuation: Typically 70 dB
    Limiter: -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
    Powering: 3 V battery / 2.4 V rechargeable battery

    Receiving frequency
  • Max. 1680 frequencies
  • Adjustable in 25 kHz steps
  • 20 frequency banks
  • Each with up to 16 factory-preset channels
  • No intermodulation
  • 6 frequency banks with up to 16 programmable channels

  • RF sensitivity:
