SE BL8
UPC/EAN #819032012031
MPN #SE-BL8
Boundary Cardioid Condenser Mic with EQ Control Kelly Shu Compatible
Bullet-proof, built like a tank and ready for the road, your secret weapon for a variety of applications such as kick drums and other high SPL sources.
The BL8 is a half-cardioid boundary microphone, utilizing the same capsule as the celebrated sE8 small-diaphragm condenser. Its hand-crafted, true condenser capsule utilizes an ultra-thin three-micron gold-sputtered diaphragm for superior transient response. Designed to reproduce low frequencies with stunning accuracy, the BL8 is perfect in combination with the V KICK, but can also be used alone without an additional outer kick drum mic. It is also compatible with The Kelly Shu Flatz? Isolation System, making it ideal for touring applications.
The BL8 utilizes transformerless Class-A circuitry to ensure plentiful headroom without distortion, while its low-noise electronics deliver transparency and clarity. The integrated low-cut filter and optional EQ shaping switch make it a very versatile microphone, excelling at immersive ambience recording, detailed room miking, and it can even be used on acoustic pianos. Thanks to its switchable attenuation pad, the BL8 keeps high-SPL sources from overloading your mixer's input.
Robustly built, the BL8 features an all-metal construction, a dent-proof grille, and gold-plated XLR contacts to ensure long-term reliability.
RECOMMENDED USE
On-Stage Miking, Grand Piano, Boardroom Speech, Room Ambience
Features
Featuring our renowned 1/2" true-condenser sE8 omni capsuleTransformerless Class-A circuitry ensures plentiful headroom without distortionHigh sensitivity and low-noise electronics with stunning transparencyIncredible dynamic range in all areasCharacter switch provides classic & modern voicingIntegrated low-cut filter & pre-attenuation pad enable a variety of applicationsGold-plated XLR connector for loss-free and reliable signal connection
Specifications
Components
Capsule: Hand-crafted small-diaphragm true-condenser capsule
Power
Powering: 48 Volts according to IEC 61938
Electrical impedance: 60 Ohms
Current consumption: 5.0 mA

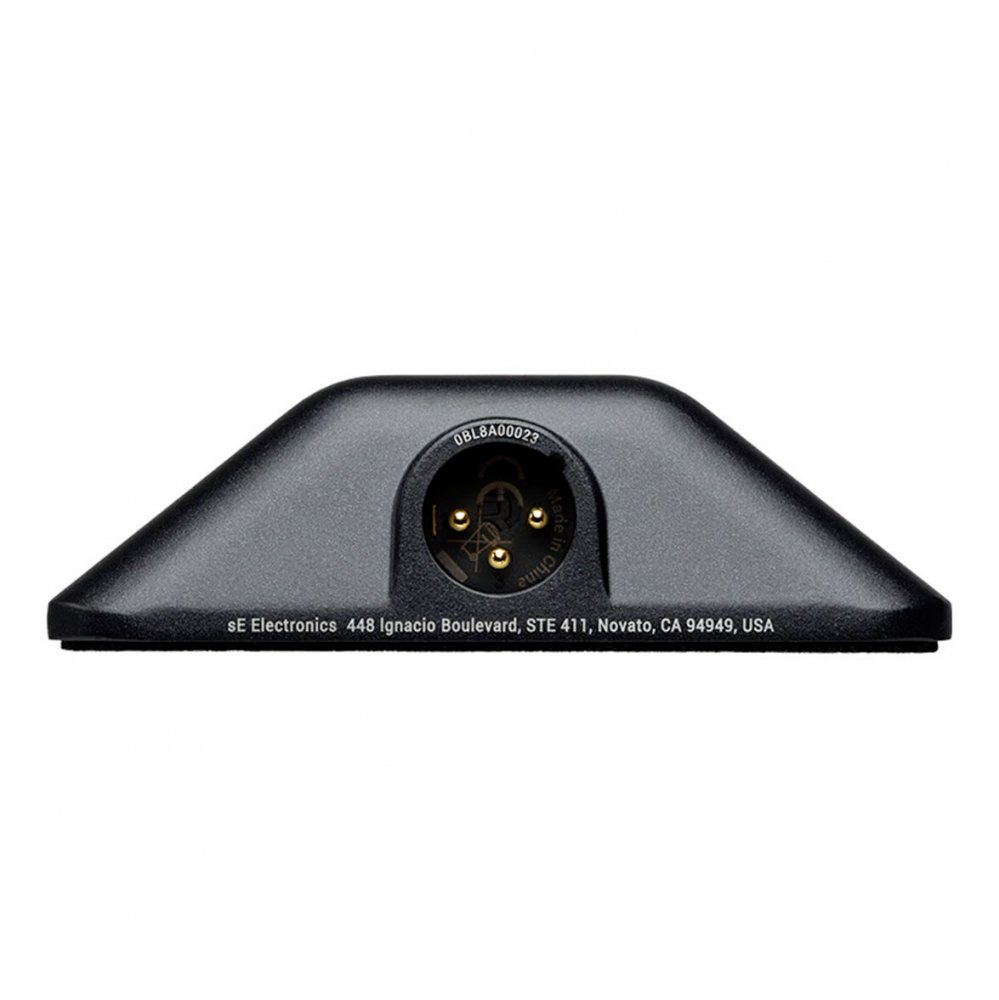

Connectivity: 3-pin male XLR connector
Sound
Polar patterns: Omni-Directional
Frequency range: 20 " 20,000 Hz
Sensitivity: 50 mV/Pa (-26 dBV)
Max. SPL (0.5% THD): 143 / 153 / 163 dB SPL (0/10/20 dB attenuation pad)
Equivalent noise level: 14 dB(A)
Dynamic range: 129 / 139 / 149 dB (0/10/20 dB attenuation pad)
Signal-to-noise ratio: 86 dB

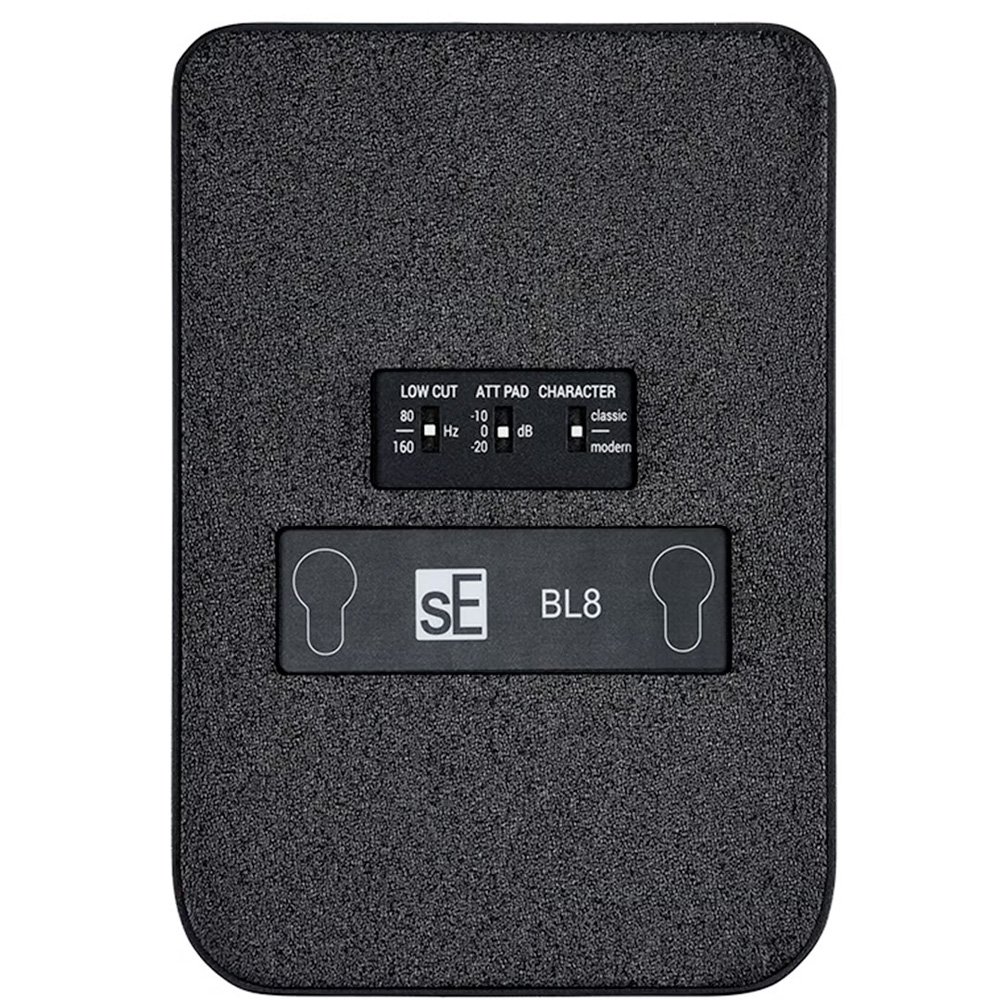

Low-cut filter: 80 / 160 Hz, 6 dB/oct, switchable
Attenuation pad: 10 / 20 dB, switchable
Recommended load impedance: >1k Ohms
Dimensions
Mic length: 139 mm (5.47 in.)
Mic Width: 95 mm (3.74 in.)
Mic Height: 28.5 mm (1.12 in.)
Mic weight: 538 g (18.98 oz.)
What's in the box: BL8 omni microphone, Pouch
