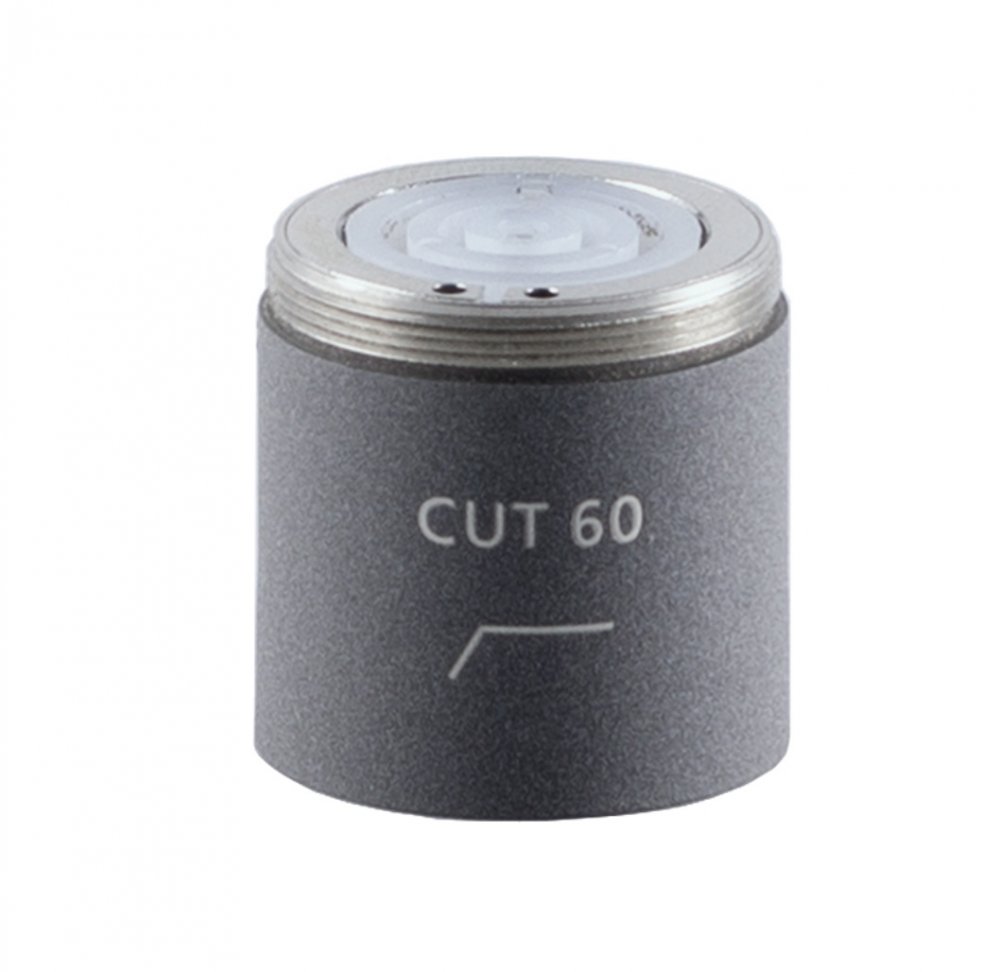

Schoeps Cut 60 Low-Cut Filter
MPN #133105
CUT 60g, 60Hz Active Low-Cut Filter for CMC Series, matte gray
The CUT 60 is inserted between the capsule and the microphone amplifier.
It prevents the effect of infrasonic disturbances from being passed on to any succeeding device. In particular, pressure-gradient transducers (directional microphones) produce very high infrasonic signal levels when exposed to wind or in elastic suspensions. These can saturate an input transformer or an amplifier stage even before the audible portion of the disturbance becomes noticeable.
To avoid this, a very sharp (24 dB/oct) infrasonic filter at 60 Hz is permanently engaged. It has no effect on speech.
PRACTICE
The CUT 60 raises the sensitivity of CMC 6 or CMC 5 amplifiers by 5 dB, but doesn't change the sensitivity of the CMC 1.
Features
recommended for use with the MK 41 on a boomcan be screwed between MK capsules and CMC amplifiervery effective suppression of low-frequency wind noise and solid-borne noiseextremely steep filter (24 dB/oct.)The speech signal is not affected.
Specifications
Surface finish: matte gray (g) or custom color
Weight: 18 g / 0.6 oz
Slope: 24 dB/oct
Length: 17 mm
Diameter: 20 mm
