Schertler YELLOW SINGLE
MPN #YELLOW-SINGLE
YELLOW series preamps have been specially developed to offer musicians and sound engineers flexible solutions that meet a range of performing and recording requirements.
The preamps combine CLASS-A electronics with a modern, sophisticated design and lightweight yet robust aluminium housing. Every single section has been engineered to ensure maximum potential from any kind of sound source.

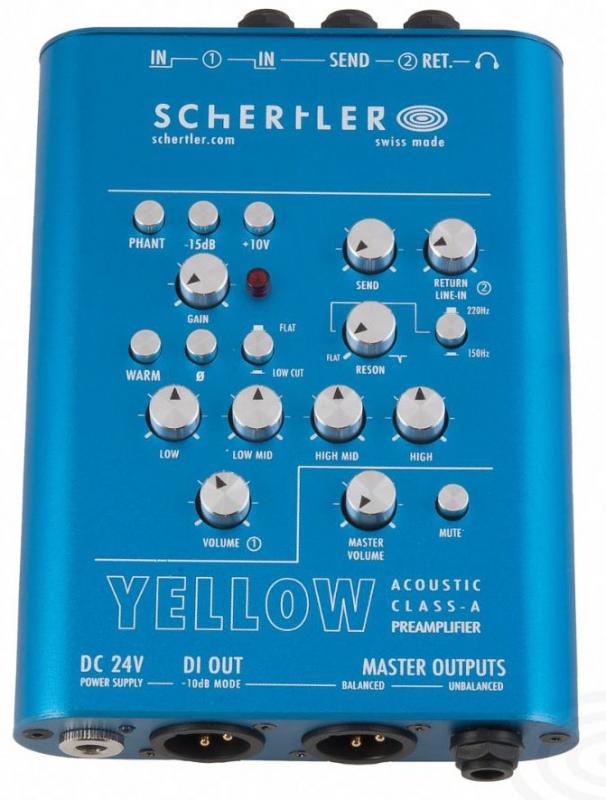

As its name suggests, YELLOW SINGLE has one dedicated input channel that accommodates a range of microphones, pickups and instruments. The Return socket can also be used as a second input for line sources. Output options and other features are similar to its larger sibling.
Yellow Single is included in all STAT-PRO sensor packages. Yellow Blender is included in all STAT-ROAD packages.
Features
Modern, sophisticated design, built in a robust and light aluminum case.Two input channels (maximum) for all kind of microphones and pickups.Four output lines (maximum) with multiple connectionsHeadphone outputSend & Return for effect loopFour band EQ and extra dedicated filters on the main channel to ensure awide range of tonal controls and maximum flexibility.Hi-end pure class A electronics for the best possible sound performance
Specifications
Weight :
0.32 kg (0.68lb)
Dimensions :
15x10x3.8cm (5.9x4.25x1.49 in)
Frequency Response :
10 Hz to 25 kHz (+/- 3dB)
Construction :
Anodized aluminium box

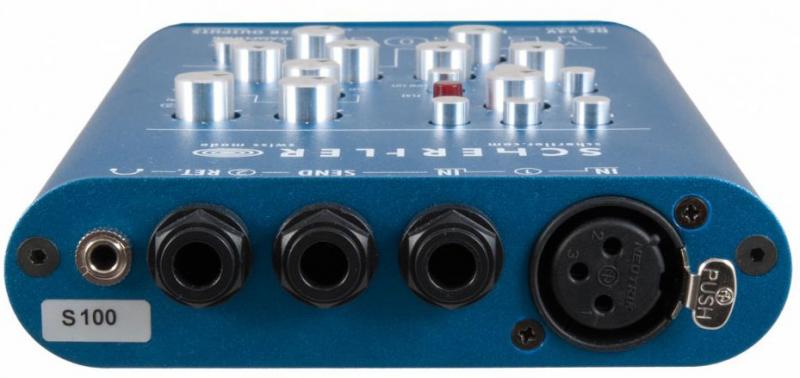

MIC IN:
XLR balanced
Sensitivity: -56 dB
Impedance: 4.7 Kohm
LINE IN:
1/4" Jack
Sensitivity: -52 dB
Impedance: 3 Kohm with 10V on
Impedance: 200 Kohm with 10V off
RETURN/LINE input :
1/4" stereo balanced Jack
Sensitivity: -30 dB
impedance 22 Kohm
EQ :
4 band EQ + adjustable notch filter
warm and low cut

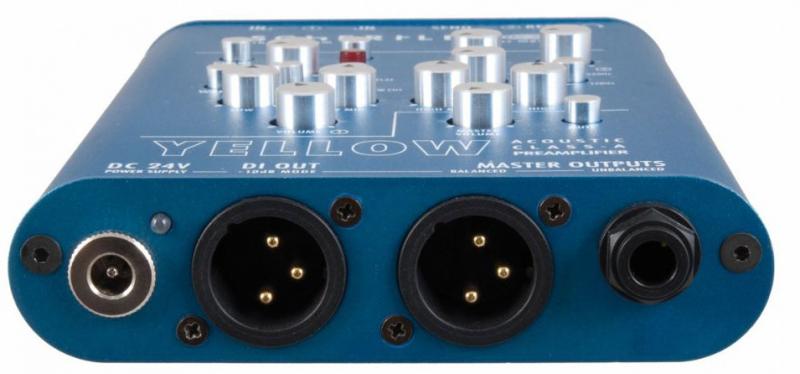

Master Outputs :
XLR balanced, output level +20 dBu
Impedance 100 ohm
1/4" Jack unbalanced, output level +14 dBu
Impedance 100 ohm
DI output :
XLR balanced, sensitivity +5 dBu
Impedance 100 ohm
SEND output :
XLR balanced, sensitivity +5 dBu
Impedance 100 ohm
Headphone :
High class headphone preamplifier
1/8" Jack, sensitivity +10 dBu
Impedance 10 ohm
Supply :
24VDC 210 mA regulated power supply
