The Sanken CUK-100K Super Wide Range 3-Way Microphone: Cardioid (Far), Cardioid (Near) and Omni modes

The CUX-100K super wide range professional microphone is based on the very popular single omni-mode CO-100K design but with the ability to change modes with three settings: Cardioid (Far), Cardioid (Near) and Omni modes. The CUX-100K is a truly unique design, perfect for high-resolution, high sample rate recordings. Check out some of the Sanken Chromatic Artist stories about the CO-100K to see how top engineers and producers have embraced the concept of 100K high resolution recording for orchestral and Broadway main microphone arrays, Foley, location sound effect recording, as well as for all types of acoustic instruments.

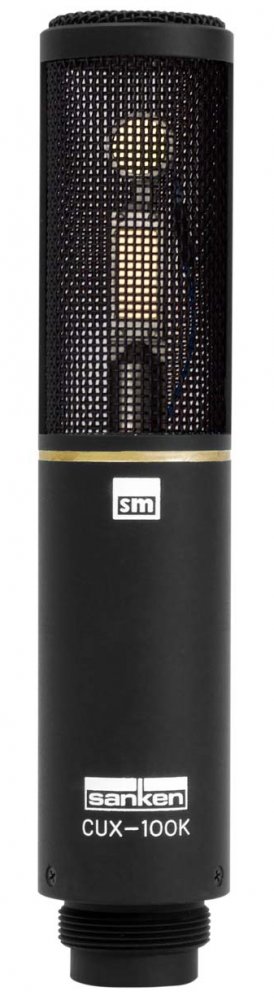

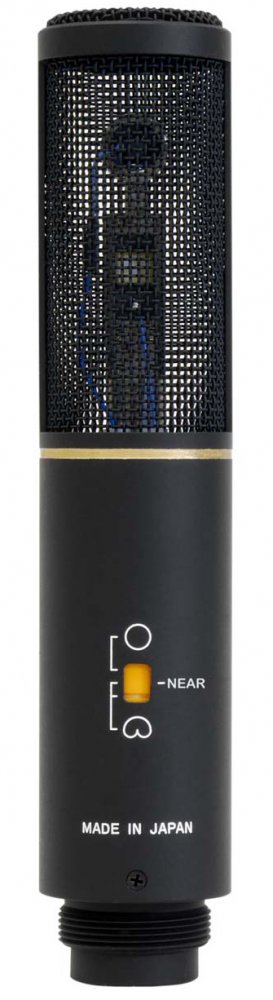

Sanken CUX-100K Front & Rear

Acoustic Guitar
Background or Chorus Vocals
Orchestra Mains
Sound Design, Effects, and ATMOS
Model Name: CUX-100K
Transducer: DC biased condenser and Self-polarised condenser
Directivity: Cardioid (Near & Far) & Omni
Frequency response:
20Hz - 100kHz Omni and Cardioid (Far)
20Hz - 50kHz Cardioid (Near)
Sensitivity (nominal at 1kHz): -28dBPa, 40mVPa
Equivalent noise levelA-weighted 17dBSPL (Cardioid), 22dBSPL (Omni)
Max SPL(1% THD): 132dB SPL
Output impedance( 1kHz ): 140 ohms
Powering: +48V phantom
Current consumption: 4.5mA
Weight: 207g/ .46lbs
Dimensions: 148mm x 30mm(D), 5.8in x 1.18in (D)
Surface finish: Matte black
Connector: XLR-3M

Included Accessories
  • measurement data
  • instruction manual
  • warranty card
  • vinyl case
