Sanken CUB-01-PT
MPN #CUB-01-PT

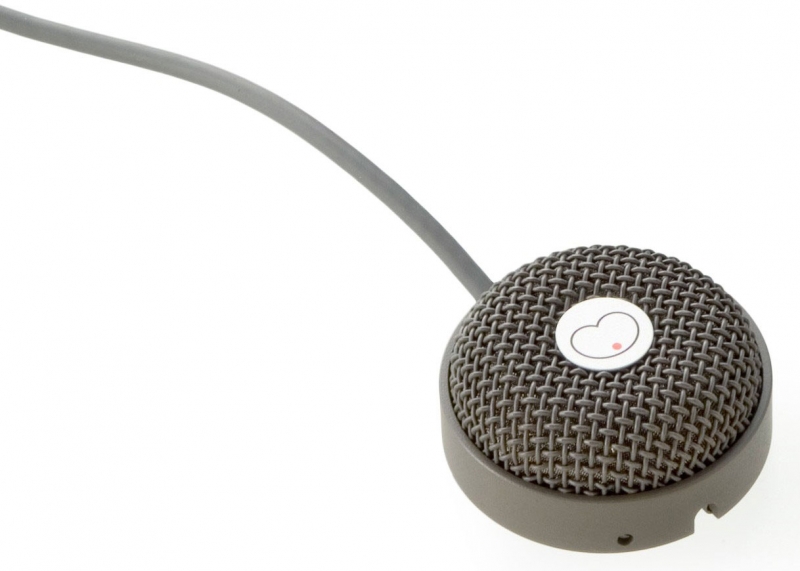

The Sanken CUB-01 is a miniature cardioid boundary microphone. Pigtail version, 3m cable, tinned ends. Available in gray or beige
Using Sanken's advanced technology, the CUB-01 has a unique square-shaped capsule housing the diaphragm. With this proprietary design, the effective area of the diaphragm is significantly enlarged. Due to the CUB-01's cardioid directional characteristics, human narration and dialogue are clearly recorded while eliminating unnecessary background noise.
The Sanken CUB-01 offers a totally new design that overcomes the limitations of previous boundary microphones. Generally speaking, most boundary microphones have almost the same sound characteristics, heard as "thin," "solid," and "metallic." Using Sanken's advanced technology, the CUB-01 has resolved this problem with its unique square-shaped cardioid capsule. This proprietary design significantly enlarges the effective area of the diaphragm, resulting in a boundary microphone whose sound is rich and natural, with a flat response to 70Hz. Now it is possible to capture a "full bodied" and "clear" sound human narration and dialogue are clearly caught while excluding unnecessary background noise.
Features
Overcomes the limitations of previous boundary microphonesExtremely rich and full-bodied sound comparable to much larger microphonesSmall footprintDesigned for use in TV and film, field shooting to broadcast, studio production, & conference table recordingEasy to conceal from the camera, can be positioned in a variety of environments e.g. attached to the ceiling of a cartinned ends, no connectorIncluded accessories: RB-01 rubber base X 2, WM-01-BK foam wind screen (black), instruction manual, warranty card, vinyl case
Specifications
Directivity: Cardioid/front side of hemisphere
Transducer: Self-polarised condenser
Frequency range: 60Hz - 15kHz
Sensitivity (nominal at 1kHz): 40mV/Pa (-28dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 16dB-A
Max SPL (1% THD): 120dB SPL
Output impedance at 1KHz: 180 ohms
Powering: +48±4V phantom
Current consumption: less than 1.8mA
Weight: 45g (including cable) , 55g (48V I/F)
Dimensions: 32.5mm (diameter) X 14.0mm
Connector: none
