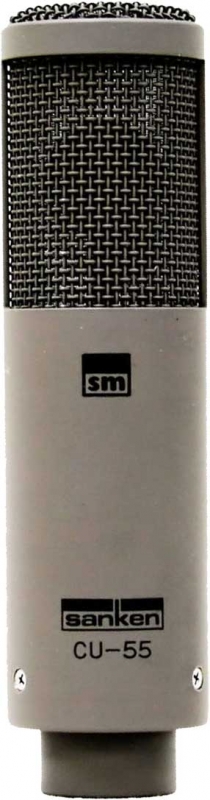

Sanken CU-55
MPN #CU-55
Small cardioid microphone suitable for acoustic instruments recording
Small, wide frequency range condenser microphone designed mainly for music recording, the CU-55 captures sound beautifully not only for a full orchestra, but also in solo acoustic instrument performances.
The pad switch has a -10dB attenuation and gives the CU-55 two different sensitivity positions, which makes the CU-55 particularly suited for cleanly capturing sound ranging from slight sound to such explosive, high pressure sound sources as trumpets, percussions and drums. In addition to a very flat frequency response (40Hz to 20,000Hz), high maximum SPL of 137 dB at 1% THD and 15dB Equivalent Noise Level performances of the CU-55 offers very wide dynamic range.
Like all other Sanken microphones, the CU-55 is especially renowned not only for its high-quality audibility, but also its reliability.
Features
Small, lightweight microphone with high sensitivity; easy to set up for the studio recordingCaptures natural, uncolored sound in versatile applications, especially in acoustic instruments performancesBeautiful cardioid pattern and frequency response not only on-axis but at other angles
Specifications
Directivity: Cardioid
Transducer: DC biased condenser
Frequency range: 40Hz - 20kHz
Sensitivity (nominal at 1kHz): -26dB (50.1mV , 0dB=1V/Pa) : PAD 0dB
-36dB (15.8mV , 0dB=1V/Pa) : PAD -10dB
Equivalent noise level (A-weighted): 15dB-A
Max SPL (1% THD): 137dB SPL : PAD 0dB, 147dB SPL : PAD -10dB
Switch: PAD switch 0/-10dB
Output impedance at 1KHz: 180 ohms
Powering: +48±4V phantom
Current consumption: 3.5mA
Weight: 180g
Dimensions: 113mm X 30mm (diameter)
Surface finish: matte brown paint
Connector: XLR-3-12(M)
Included Accessories
measurement datawarranty cardvinyl case
