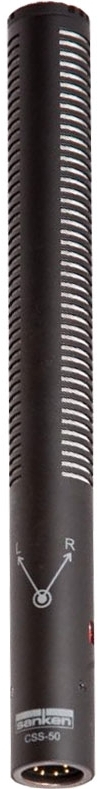

Sanken CSS-50
MPN #CSS-50
The Sanken CSS-50 is an short lightweight model featuring a 3 capsule design to provide three modes of operation. Sharp mono, directional stereo, or a wide 140º pattern
* Thanks to original thin square capsule design, capsules can be installed
in a short acoustic tube,maintaining basic shotgun performance equivalent
to the CSS-5 in 215mm length compact body.
* Newly designed high-performance electret condenser capsules is adopted,
providing equivalent frequency response, sensitivity and noise level to
DC-biased capsules.
* Adopting X-Y stereo method, featuring precise localization effect and
less wind/vibration noises.
* Selectable three distinct operation modes:
MONO : Offers sharp shotgun directivity.
NORMAL : Provides precise stereo localization.
Features
Unique (3) Capsule DesignWide 100Hz-15kHz frequenzy responseStandard XLR5 connectorShort 8.5 inchesMono - For sharp shotgun directivity and excellent low frequency definitionNormal - For precise directional hyper-cardioid focus with accurate stereo localizationWide - Expanded 140 degree stereo image for cinematic ambiance and stereo sound effects
Specifications
Directivity: Mid-High: lobar Mid-Low: Rear rejection by second gradient two capsules
Transducer: Back electret condenser x 3
Frequency range: 70Hz - 18kHz
Sensitivity (nominal at 1kHz): 71mV/Pa (-23dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): Rear rejection ON: 16dB SPL, Rear rejection OFF: 15dB SPL
Max SPL (1% THD): 123dB SPL
Output impedance at 1KHz: 150 ohms
Powering: +48±4V phantom
Current consumption: 4.5mA
Weight: 170g
Dimensions: 250mm x 22mm (diameter)
Surface finish: matte black
Connector: XLR-3M
