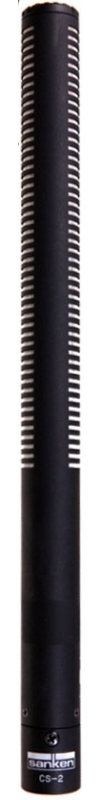

Sanken CSR-2
MPN #CSR-2
Shotgun microphone, suppressing back ground sensitivity at wide frequency range
Suppressing back ground sensitivity at wide frequency range by narrow-angle directivity with line microphone method at mid-high frequency range and by cancelling back ground sensitivity with two capsules at low-mid frequncy range.
Easy to handle and operate by using general purpose 48V Phantom powering.
Sharper narrow-angle directivity can be gained because of long acoustic tube with square capsule being superior in space efficiency.
Features
Super long reach, only 10" in lengthSuppresses background sensitivity using Sanken's exclusive rear cancellation technologyVery Sharp DirectivityProprietary rectangular capsule design for compact, super-sharp directivityFlat frequency response 70Hz to 20kHzEasy to handle and operate using 48V phantom powerQuick power-upStandard XLR3 connector
Specifications
Directivity: Mid-High: lobar Mid-Low: Rear rejection by second gradient two capsules
Transducer: Back electret condenser x 3
Frequency range: 70Hz - 18kHz
Sensitivity (nominal at 1kHz): 71mV/Pa (-23dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): Rear rejection ON: 16dB SPL Rear rejection OFF:15dB SPL
Max SPL (1% THD): 123dB SPL
Output impedance at 1KHz: 150 ohms
Powering: +48±4V phantom
Current consumption: 4.5mA
Weight: 170g
Dimensions: 250mm x 22mm (diameter)
Surface finish: matte black
Connector: XLR-3M
