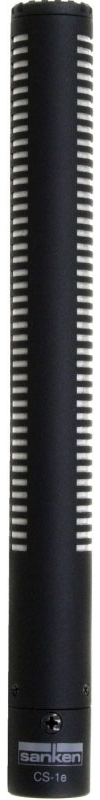

Sanken CS-1e
MPN #CS-1e
Short shotgun microphone for boompole and camera mount
The CS-1e is Sanken's solution to a large demand from many engineers in the video and film Industries. This shotgun mic is easily hidden from the camera's view because of its short length. Although only 181.5mm, the CS-1e has very sharp directivity and provides excellent sound in a wide variety of professional engineering applications. The CS-1e is very effective on boom poles, and also works extremely well with various kinds of camera mounts for one- man ENG operations. Affordably priced, the CS-1e is ideal for today's highly mobile operators.
Features
Very sharp directivity in a 181.5mm length bodyFlat frequency response beyond 20kHz (on axis)High sensitivity -24 dB/PaAccepts high SPLs, more than 130 dB SPL(1% THD), with no distortion in close mikingNarrow angle directivity over the entire frequency range,Light weight, only 80g, easy to operate on a boom poleSanken original square-type DC-biased condenser capsule
Specifications
Directivity: Cardioid / Lobar
Transducer: DC biased condenser
Frequency range: 50Hz20kHz
Sensitivity (nominal at 1kHz): 63.1mV/Pa (-24dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 15dB-A
Max SPL (1% THD): 130dB SPL
Output impedance at 1KHz: 120ohms
Powering: +48V±4VU.P.F
Current consumption: 3.5mA
Weight: 80g
Dimensions: 181.5mm x 19mm(diameter)
Surface finish: matte black
Connector: XLR-3M
Included accessories: WM-1e wind screen, ROCS Rubber O-Ring Set (2pcs), Measurement data, Instruction manual, Warranty card, Vinyl case
