Sanken COS-11D TA5F for Lectrosonics (Normal sensitivity, with accessories, Black)

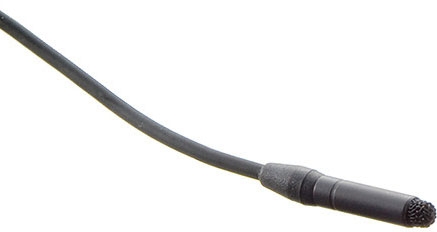

COS-11D TA5 is an Omni-Directional Miniature Electret Lavalier Microphone terminated with a TA5 connector universal wiring. Normal sensitivity, 1.8 meter, with accessories.
The COS-11D overcomes RFI (radio frequency interference) from the digital transmitter. In today's wireless transmission systems the microphone must remain unaffected by new forms of digital transmitter signals. They present new challenges in the area of emission protection. In many cases, noise levels increase and the S/N ratio is deteriorated by the interference of digital transmitters. Sanken has designed the COS-11D specifically to diminish the instances where interference is an issue.

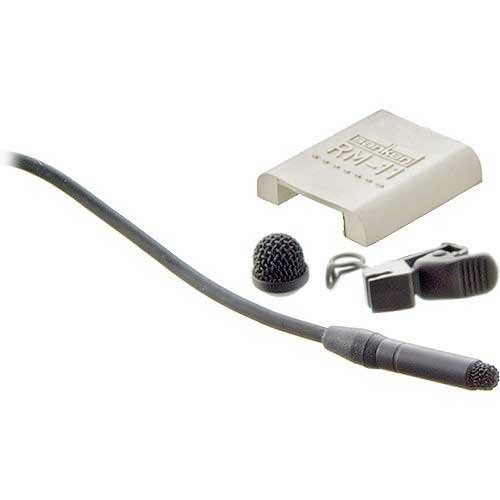

TA5 Connector Lectrosonics Universal Wiring for all UM and SM modelOvercomes digital transmitter RFIWater ResistantDurable DesignGreat Clear and Rich SoundBlack ColorImproved Moisture ResistanceOriginal Vertical Diaphragm DesignOptimized for the Human VoiceIncluded accessories: HC-11 holder clip, WS-11 metal windscreen, RM-11 rubber mount (BE,WH type) RM-11-BK (BK,GY type), instruction manual, warranty card, plastic case
Directivity: Omni directional
Transducer: Self-polarized condenser
Frequency range: 50Hz - 20kHz
Sensitivity: (nominal @ 1kHz) 8.9mV/Pa (-41dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 28dB-A
Max SPL (1% THD): 123dB SPL
Output impedance at 1KHz: 700 ohms
Powering: +3V to +10V
Current consumption: less than 0.5mA
Cable Length: 5.9' (1.8 m)
Dimensions: 16.1mm X 4.0mm (diameter), 1.8m (cable length)
August 17, 2017
The best lav on the market. A classic!
