Sanken COS-11D PigTail (Normal sensitivity, with accessories, 1.8 m, White)
MPN #SAN-11DWNPTWH18

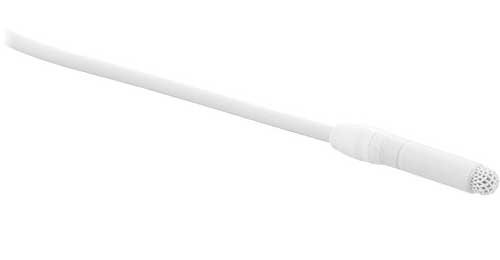

The Sanken COS-11D-PT is an Omni-Directional Miniature Electret Lavalier Microphone with stripped end, without connector. Normal sensitivity, 1.8 meter, accessories included.
The COS-11D overcomes RFI (radio frequency interference) from the digital transmitter. In today's wireless transmission systems the microphone must remain unaffected by new forms of digital transmitter signals. They present new challenges in the area of emission protection. In many cases, noise levels increase and the S/N ratio is deteriorated by the interference of digital transmitters. Sanken has designed the COS-11D specifically to diminish the instances where interference is an issue.
Features
Pigtail Version, +3 to +10V BiasOvercomes digital transmitter RFIWater ResistantDurable DesignGreat Clear and Rich SoundWhite ColorImproved Moisture ResistanceOriginal Vertical Diaphragm DesignOptimized for the Human VoiceIncluded accessories: HC-11 holder clip (AL type doesn't include), WS-11 metal windscreen(AL type doesn't include), RM-11 rubber mount (AL type doesn't include), instruction manual, warranty card, plastic case
Specifications
Directivity: Omni directional
Transducer: Self-polarized condenser
Frequency range: 50Hz - 20kHz
Sensitivity: (nominal @ 1kHz) 8.9mV/Pa (-41dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 28dB-A
Max SPL (1% THD): 123dB SPL
Output impedance at 1KHz: 700 ohms
Powering: +3V to +10V
Current consumption: less than 0.5mA
Cable Length: 5.9' (1.8 m)
Weight: 10g
Dimensions: 16.1mm X 4.0mm (diameter), 1.8m (cable length)
Connector: connector-less
