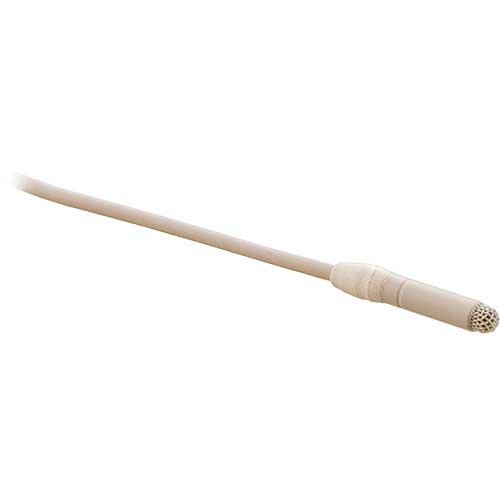

Sanken COS-11D PigTail (Normal sensitivity, no accessories, 3 m, Beige)
MPN #SAN-11DANPTBE30
Sanken COS-11D-PT-AL 3.0 is an Omni-Directional Miniature Electret Lavalier Microphone with stripped end, without connector. Normal sensitivity, 3 meters, no accessories.
The COS-11D overcomes RFI (radio frequency interference) from the digital transmitter. In today's wireless transmission systems the microphone must remain unaffected by new forms of digital transmitter signals. They present new challenges in the area of emission protection. In many cases, noise levels increase and the S/N ratio is deteriorated by the interference of digital transmitters. Sanken has designed the COS-11D specifically to diminish the instances where interference is an issue.
Features
Pigtail Version, +3 to +10V BiasOvercomes digital transmitter RFIWater ResistantDurable DesignGreat Clear and Rich SoundBeige ColorImproved Moisture ResistanceOriginal Vertical Diaphragm DesignOptimized for the Human VoiceIncluded accessories: None
Specifications
Directivity: Omni directional
Transducer: Self-polarized condenser
Frequency range: 50Hz - 20kHz
Sensitivity: (nominal @ 1kHz) 8.9mV/Pa (-41dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 28dB-A
Max SPL (1% THD): 123dB SPL
Output impedance at 1KHz: 700 ohms
Powering: +3V to +10V
Current consumption: less than 0.5mA
Weight: 19g
Cable Length: 9.84' (3 m)
Dimensions: 16.1mm X 4.0mm (diameter), 3.0m (cable length)
Connector: connector-less
