Sanken CMS-50
MPN #CMS-50 M-S

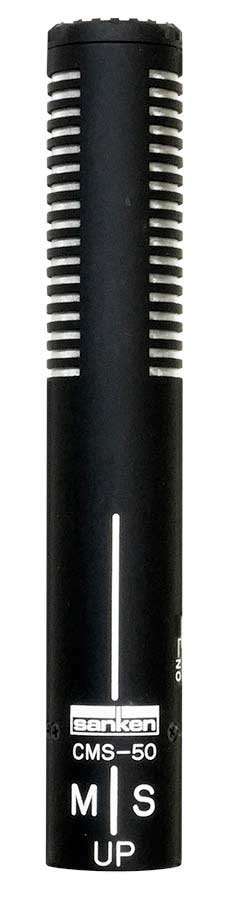

The unique CMS-50 is a 5.4 compact stereo condenser shotgun that weighs only 4.6oz.

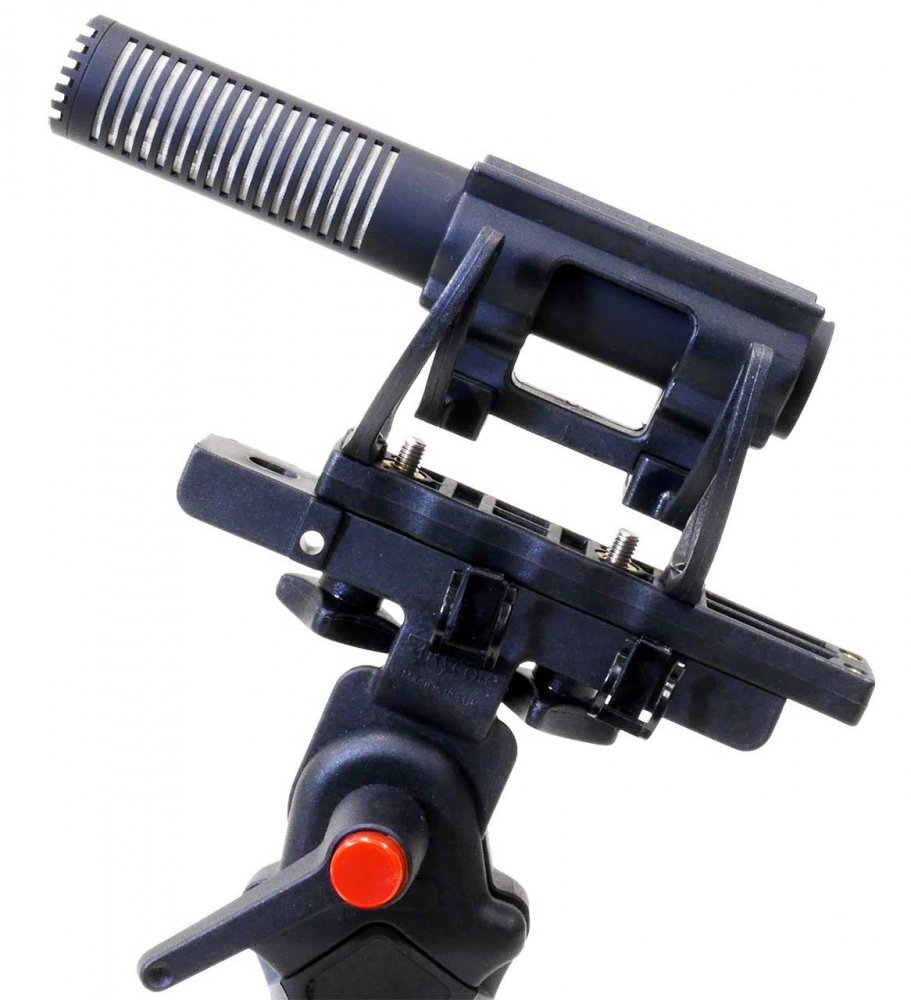

The mic is especially suited to shoots where tight patterns and premium sound are the goal. It can be camera mounted without interfering with even a short lens, yet still provide the quality of audio demanded by today's professionals.
It is an M-S (Mid-Side) configuration which makes it possible to adjust the stereo width from mono to stereo at the mixer or in post production. The shotgun includes two outputs, a cardioid and figure of 8, which can be fed into the mixer for width adjustments. If both outputs are recorded then width can be managed in post.
Like all Sanken shotguns it is rugged and dependable with a wide range of applications where sound clarity and noise rejection are critical requirements.
The CMS-50's lightweight, rugged design and unique components assure optimum resistance to humidity and adverse temperature changes.
Features
Unique Sanken lightweight designSharp directivityM and S component outputs to compose Stereo signal, conveninent for pre and post processingHigh sound qualtity, suitable for ambient recording such as Field Sports, Movies, Operas etc.Beautiful Cardioid and Figure-8 patterns provide smooth and coherent StereoShort 5.4 length, lightweight (less than 5oz) for easy operationIdeal for boom pole operation on drama and film shootsIdeal for mounting on cameras with short lensAdvanced RFI rejectionHPF Switch to change low frequency characteristicWide 60Hz - 20kHz frequency rangeRugged and dependable design
Specifications
Model Name: CMS-50
Transducer: Self - polarised condenser
Directivity: M: Cardioid, S: Figure-8
Frequency response: (60Hz - 20kHz)
Sensitivity (at 1kHz): -28dB (40mV)(0dB = 1V/Pa)
Equivalent noise level (A weighted): 18dB SPL (A weighted)
Max SPL (1% THD): 138dB SPL
Output impedance( 1kHz ): 140 ohms
High pass filter cut off freq.: 60Hz
Powering: +48V ± 4VPhantom U.P.F
Current consumption: 4 mA (each channel)
Weight: 4.6oz (130g)
Dimensions
5.4 (137mm) length0.87 (22mm) diam.
Surface finish: Matte Black
Connector
XLR-5-12C(M) equivalent( 1: GND, 2: M-Hot, 3: M-Cold, 4: S-Hot, 5: S-Cold )
Included Accessories
WM-MS50 Foam Windscreen for CMS-50CMS-50 Vinyl Case
