The Nanosyncs HD Multi Standard Sync Engine is an intricate electronic gearbox which locks PAL, NTSC or slow PAL, progressive or interlaced HD Trilevelsyncs and digital audio reference signals together in any required combination.

Audio word clock, AES/EBU reference, video sync, tri-level sync and timecode generator.

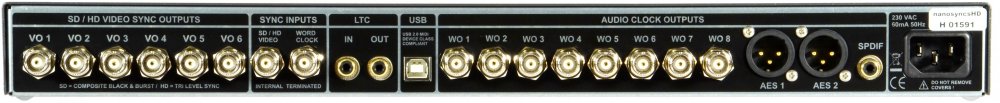

OUTPUTS:

8 word clocks, 2 AES/EBU and 1 SPDIF reference outputs

6 video sync outputs, individually configurable as standard video syncs or HD tri-level syncs

LTC (SMPTE 12M) timecode output.

INPUTS:

video reference input, accepts standard and HD tri-level signals

word clock input, LTC timecode input

SECTIONS:

DDS audio clock generator, jitter < 12ps RMS within the audio spectrum (20Hz -20kHz), sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz including all +/- 0.1% or +/- 4% pulls

Internal timebase: 0.2 ppm accurate, temperature compensated crystal oscillator

SD video sync generator: 23.98 FPS, 24 FPS, PAL 25 FPS, NTSC 29.97 FPS

HD tri-level sync generator: 720p, 1080p and 1080i at 23.98, 24, 25, 29.98, 30, 50, 59.97, 60 FPS

Timecode generator: 23.98, 24, 25, 29.98, 30 FPS, local or remote controlled via USB

Timecode reader: all rates, LTC to MTC conversion, generator jam sync

USB: device class compliant audio device with MIDI port, MTC, MMC and Rosendahl SysEx, free remote software nanoSETUP for Mac OSX and Windows available
