Roland XS-1HD
UPC/EAN #761294510360
MPN #XS-1HD

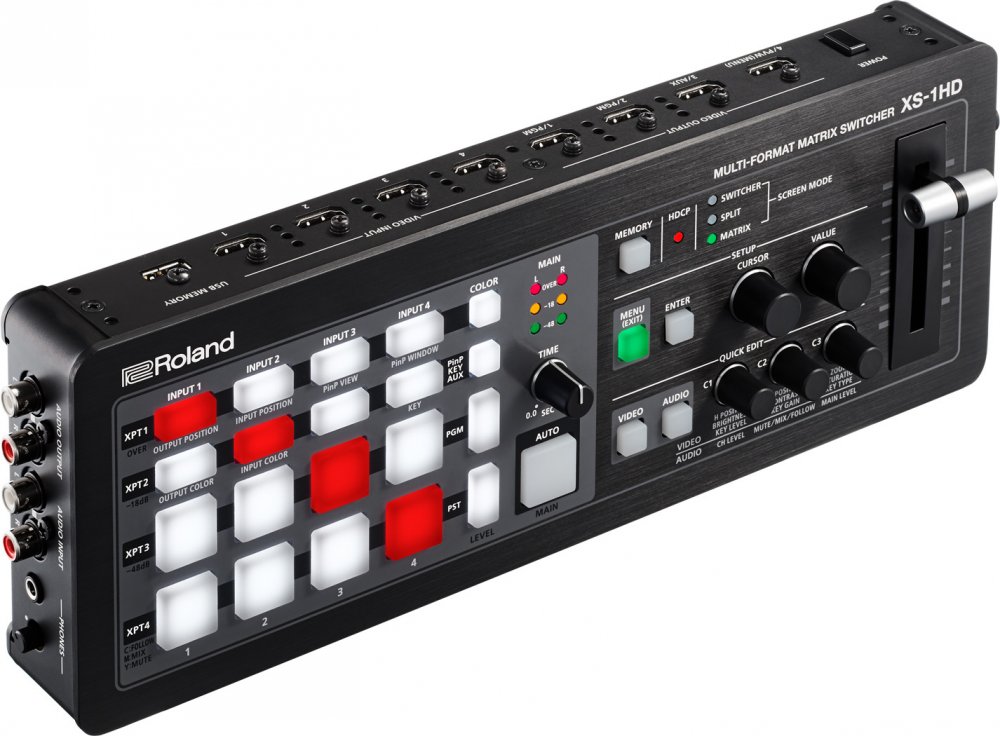

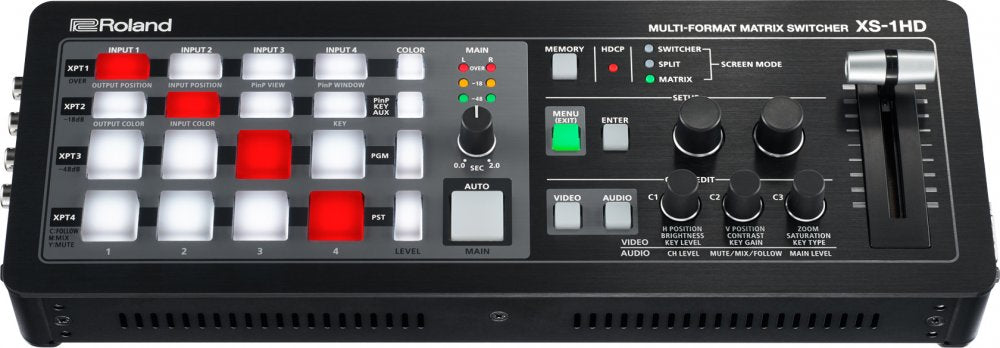

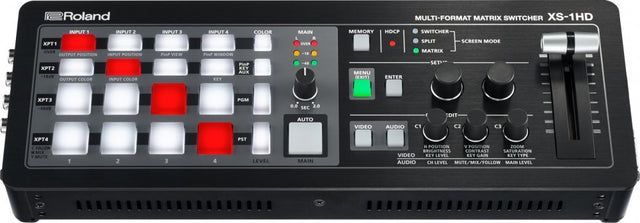

The Roland XS-1HD is a Multi-format Matrix Switcher
A versatile and compact switcher with muti-screen output and video compositing. A Multi-format Matrix Switcher with scalers that supports up to full HD.
Features
A table-top matrix switcher that's the width of a 13" laptop, equipped with four HDMI inputs and outputsHigh-quality 4:4:4/10-bit processing at up to WUXGA/1080pFrame synchronizer and scaler on all inputsThree operation modes Matrix Mode allow switching of 4 sources to any of 4 outputsSwitcher Mode allows PinP, key-compositing, and dissolve transitionsSplit Mode allows PinP of up to three inset windowsBuilt-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog inputBuilt-in EDID emulator, and HDCP-compliant
Specifications
VIDEO
Processing:
4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits
Input Connectors:

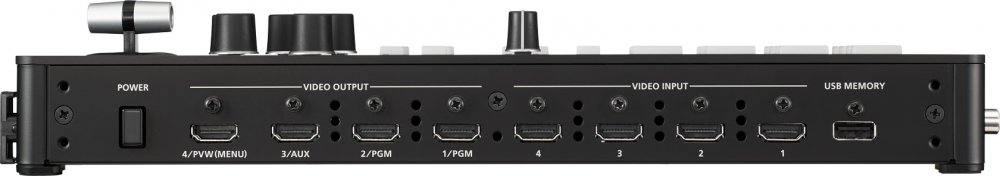

HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported
Output Connectors
HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported
Formats: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
Effects
Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 1 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
Still Image
Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sampling Rate: 24 bits/48 kHz
Input Connectors: HDMI : HDMI type A x 4
AUDIO INPUT : RCA pin type
Output ConnectorsHDMI : HDMI type A x 4

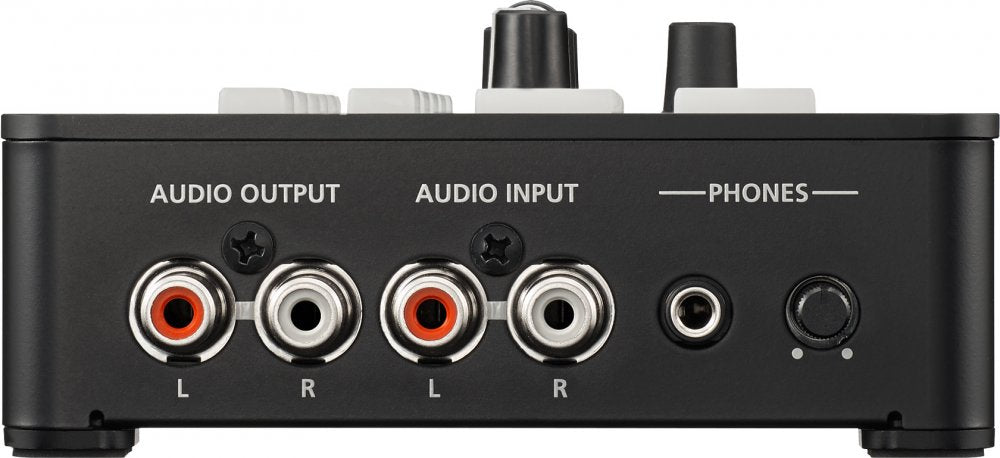

AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini typeInput Level
AUDIO INPUT : -10 dBu (Maximum : +8 dBu)Input Impedance
AUDIO INPUT : 15 k ohmsOutput
Level
AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)Output ImpedanceAUDIO OUTPUT : 1 k ohm
PHONES : 10 ohmsFormatsHDMI : Linear PCM, 24 bits, 48 kHz, 2 chProcessingMixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator
OTHERS
External Connectors:

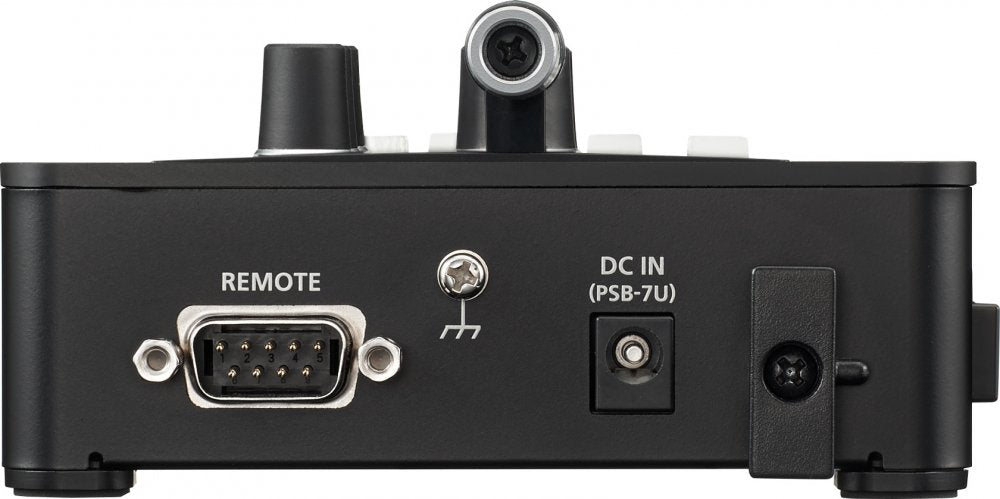

REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)
Preset Memory: 16
*Auto Memory Function
Power Supply: AC Adaptor
Current Draw: 2.1 A
Power Consumption: 25 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inchesWeight1.2 kg
2 lbs 11 oz
Accessories
Owner's Manual
AC adaptor
Power cordNotes* 0 dBu = 0.775 Vrms
