$1629.00

Free shipping in Canada. Conditions

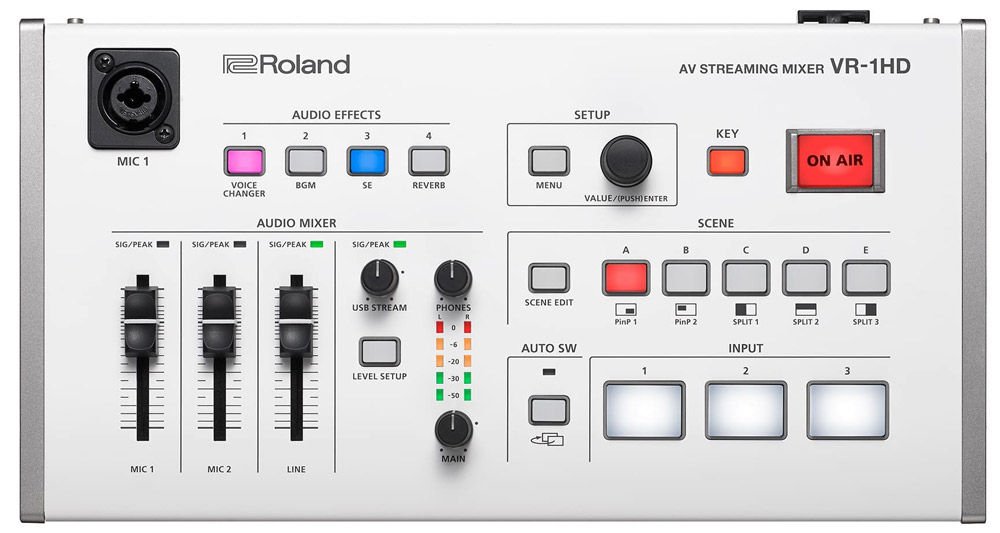

Roland VR-1HD Live AV Streaming Mixer



Real-Time Engagement
Command your audience's attention with live-switched content

Plug-and-Play Broadcast Studio
Mix and match a variety of video and audio inputs via three HDMI ports and two XLR/TRS combo inputs

Scene Switching & Effects
PiP (Picture in Picture), keying, and five preset scene buttons work with your editing software to produce dynamic, layered video

Three Auto Switching Modes
Video Follows Audio, Beat Sync, and Auto Scan switching modes enable you to concentrate on your performance, even without a director

Auto Mixing Audio Mode
Preset input priorities, eliminate input competition, and balance audio with the Auto Mixing function

Audio Controls & Effects
Equalizers, Gate Settings, Compressors, Stingers, and Voice Transformers enable you to customize your audio output

Full HD Broadcasting
Connects to your computer via USB 3.0 (Type-B) for up to 1080p30 Full HD broadcasting

Features

  • 3 x HDMI Inputs, 3 x HDMI Outputs
  • Stream up to 1080p30 Video, USB Type-B
  • NTSC/PAL, HD, Computer Signal Compatible
  • 2 x XLR/1/4" TRS Combo Mic Inputs
  • Specifications

    Video
    Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit

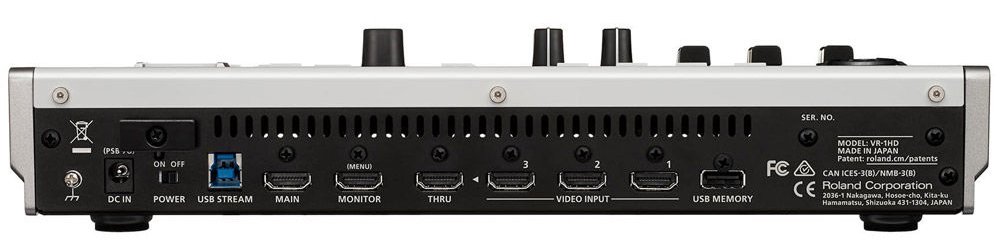

    Input Connectors:
    VIDEO INPUT 1--3 connectors: HDMI type A x 3
    * HDCP Supported.
    * Multi-format Supported
    Output Connectors:
    MAIN connector: HDMI type A
    * HDCP Supported
    MONITOR connector: HDMI type A
    * HDCP Supported
    THRU connector: HDMI type A
    * HDCP Supported
    USB STREAM port: USB B type
    Input formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The refresh rate is the maximum value of each resolution.
    * Conforms to VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200, 60 Hz: Reduced blanking
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

    Output formats:
    MAIN, MONITOR connectors:
    720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, XGA (1024 x 768/60 Hz) (*1), WXGA (1280 x 800/60 Hz) (*1), SXGA (1280 x 1024/60 Hz) (*1), FWXGA (1366 x 768/60 Hz) (*1), SXGA+ (1400 x 1050/60 Hz) (*1), UXGA (1600 x 1200/60 Hz) (*1), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
    (*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.

    USB STREAM port:
    854 x 480/29.97p, 854 x 480/25p, 854 x 480/59.94p, 854 x 480/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
    Still Image:
    Maximum Size: 1920 x 1200 pixels
    Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
    * It can be loaded up to 2 files from USB memory at startup.
    Video Effects:
    Scene: PinP, Split
    Transition: Black fade, Mix fade
    Key Composition: Luminance key
    Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

    Audio
    Audio Processing: Sample rate: 48 kHz, 24 bits
    Audio formats: VIDEO INPUT 1--3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
    USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
    Input Connectors: VIDEO INPUT 1--3 connectors: HDMI type A
    MIC IN 1--2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
    LINE IN jacks: RCA phono type
    USB STREAM port: USB B type
    Output Connectors: MAIN connector: HDMI type A
    MONITOR connector: HDMI type A
    LINE OUT jacks: RCA phono type
    USB STREAM port: USB B type
    PHONES jack: Stereo miniature phone type
    Nominal Input Level: MIC IN 1--2 jacks: -60--+4 dBu (Maximum input level: +28 dBu)
    LINE IN jacks: -10 dBu (Maximum input level: +8 dBu)
    Input Impedance: MIC IN 1--2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0--+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +17--+64 dBu)
    LINE IN jacks: 15 k ohms
    Nominal Output Level: LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
    PHONES jack: 92 mW + 92 mW (32 ohms)
    Output Impedance: LINE OUT jacks: 1 k ohms
    PHONES jack: 10 ohms
    Audio Effects: Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer
    Audio Player: Number of Players: 4
    Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo)

    Common Section
    Connectors: USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
    USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO stereo (USB 2.0): 1 IN/1 OUT, Remote control)
    DC IN jack
    Functions: Scene memory: 5
    Panel lock function
    EDID emulator
    Auto switching (Auto scan, Beat sync switching, Video follow audio)
    Power Supply: AC Adaptor
    Current Draw 2 A
    Power Consumption: 24 W
    Operation Temperature: +0 to +40 degrees Celsius
    +32 to +104 degrees Fahrenheit

    Physical Specs
    Dimensions (WxHxD): 314 x 66 x 169 mm (12-3/8 x 2-5/8 x 6-11/16")
    Weight: 1.6 kg (3 lbs 9 oz.)
    GTIN (UPC/EAN) : 761294513446
    Manufacturer Part Number : VR-1HD
