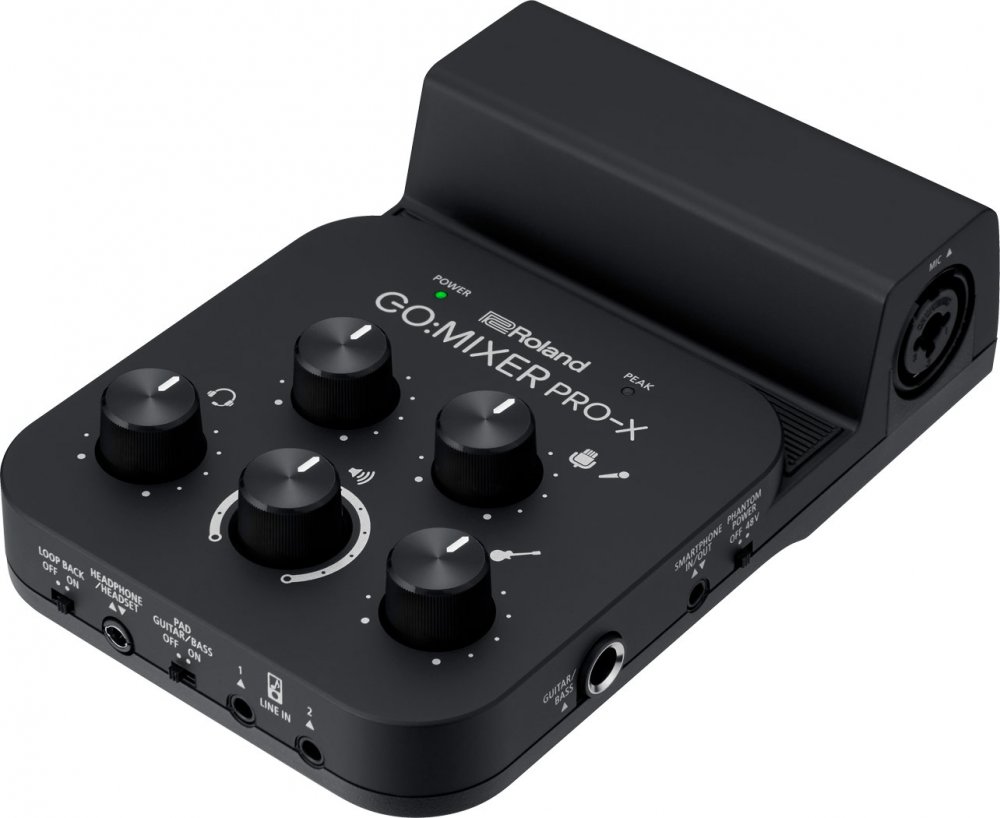

Roland GO:MIXER PRO-X
UPC/EAN #761294518021
MPN #GOMIXERPX
USB Micro-B and four-pole TRRS analog jacks, providing plug-and-play operation with most iOS and Android smartphones & tablets, three different cable types included
If you create music videos, web shows, podcasts, or livestreams with a phone or tablet, you need GO:MIXER PRO-X. Audio quality can make or break your presentation, and your device's built-in mic won't cut it if you really want to impress your listeners and keep them engaged. With GO:MIXER PRO-X, you can connect and mix up to seven audio input sources with studio quality-so you'll always sound your best no matter where you are.
Features
Palm-sized audio mixer for mobile devicesMultiple inputs-connect microphones, musical instruments, and moreCombo jack supports standard mics with XLR or ΒΌ-inch plugs; 48 V phantom power available via XLRDedicated guitar/bass input with selectable input pad for active pickupsMono/stereo instrument inputTwo stereo line-level inputs with TRS mini jacksMini headphones jack with headset mic supportLoop Back function for playing along with backing tracks from your mobile deviceUSB Micro-B and four-pole TRRS jack for device connectionComes with three connection cables: USB Micro-B to USB-C, USB Micro-B to Lightning, and TRRS to TRRSPowered by your smartphone or four AAA alkaline batteriesEasy integration with camera and livestreaming appsAlso works with Roland Zenbeats and other mobile music production apps
Specifications
Number of Audio Channels: Input: 11 channels, Output: 3 channels
Connectors:
INSTRUMENT (L/MONO, R) jacks: 1/4-inch phone type
LINE IN 1 jack: Stereo miniature phone type
LINE IN 2 jack: Stereo miniature phone type
GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)
SMARTPHONE IN/OUT jack: Stereo Miniature phone type (Stereo, CTIA)
MIC jack: Combo type (XLR, 1/4-inch TRS phone, phantom power DC 48 V, 6 mA max.)
HEADPHONE/HEADSET jack: Stereo Miniature phone type (Stereo, CTIA)
USB port: USB Micro-B type
Controller:
INSTRUMENT knob
GUITAR/BASS knob
MIC knob
HEADSET MIC knob
HEADPHONE/SMARTPHONE OUT knob
LOOP BACK switch
PAD GUITAR/BASS switch
PHANTOM POWER switch
BATTERY switch
Indicator: POWER indicator, PEAK indicator
Power Supply:
USB Bus Power
Alkaline battery (AAA, LR03) x 4
Rechargeable Ni-MH battery (AAA, HR03) x 4
Current Draw: 170 mA
Battery life for continuous use: Alkaline battery: Approximately 4 hours
* When setting the [BATTERY] switch to the "ON" position.
* Differs depending on the conditions of use.
Accessories: Leaflet "Downloading the Owner's Manual"
Leaflet "USING THE UNIT SAFELY"
Lightning to USB Micro-B type cable
USB Type-C(TM) to USB Micro-B type cable
3.5mm TRRS Audio cable
SIZE & WEIGHT
Dimensions: 104 (W) x 155 (D) x 41 (H) mm
4-1/8 (W) x 6-1/8 (D) x 1-5/8 (H) inches
Weight (excluding batteries and cables): 215 g, 8 oz
IN THE BOX
USB Micro-B to USB-C Cable
USB Micro-B to Lightning Cable
TRRS to TRRS Cable
User Manual
