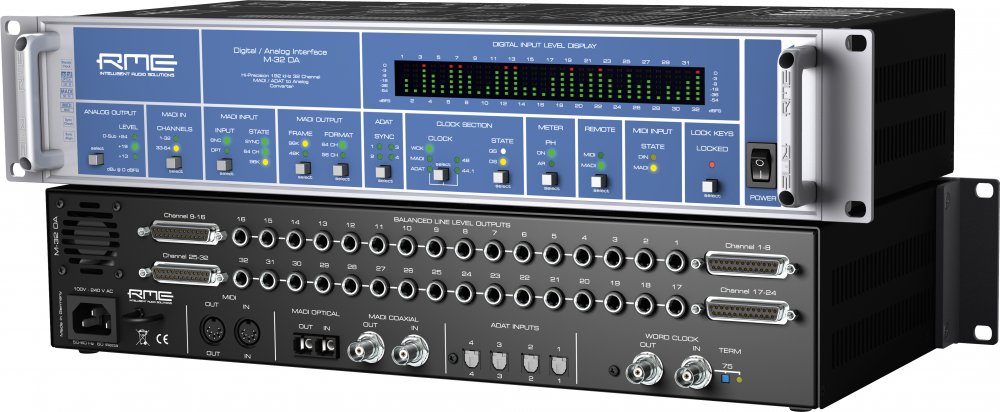

RME M32DA
UPC/EAN #4260123362614
MPN #M32DA
32 channel MADI/ADAT to analog converter
The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art DA conversion - not less than 32 times!
The M-series converters have been conceived and optimised for professional studio, stage, and broadcast applications. Combinations of the M-16 DA and M-32 DA converters allow for setups with 16, 32, 48, or 64 channels, according to your individual application or budget. The unit's unique set of features includes three hardware reference levels up to +24 dBu, MADI I/O and ADAT input up to 192 kHz, 6.3mm TRS and D-sub outputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure.
The M-32 DA extends RME's MADI line with multichannel conversion in reference quality - at an unbeatable price/performance ratio!
Features
32-channel DA converter, double balanced output, 118 dBA19" enclosure with only 2 units height1 x MADI I/O, 32 channels @ 96 kHz, 16 channels @ 192 kHz4 x ADAT In, 16 channels @ 96 kHz, 8 channels @ 192 kHzAutomatic Delay Compensation: no user operation necessary when stacking units32 LED level meters with 6 LEDs eachSteadyClock(TM) - pristine sound quality independently from the quality of the external clock signalSyncCheck(TM) - unique technology to check clock synchronizationNoise suppression on power-on and power-off at the analog outputsAll settings are stored permanentlyFully remote controllable via MIDI and MIDI over MADI
Specifications
Input DA: 4 x ADAT optical, 1 x MADI optical/coaxialOutput DA: 1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBuDynamic Range DA (SNR): 114 dB RMS unweighted, 118 dBATHD DA: < -104 dB (< 0.00063%)THD+N DA: < -100 dB (< 0.001%)Crosstalk DA: > 110 dBFrequency response DA, -0.5 dB: 5 Hz - 22 kHz (sf 48 kHz)Frequency response DA, -0.5 dB: < 5 Hz - 34 kHz (sf 96 kHz)Frequency response DA, -1 dB: < 5 Hz - 50 kHz (sf 192 kHz)Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBuSample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI inputJitter suppression: >30 dB (2.4 kHz)Jitter sensitivity: all PLLs operate error-free even at 100 nsPower supply: Internal switching mode PS, 100V - 240V AC, 60 WattDimensions: (WxHxD) 483 x 88 x 200 mm
