RME M-32 Pro DA II Dante
MPN #M-32 Pro DA II Dante
32-channel 192 kHz DA converter with MADI, Dante, redundant PSU, +24 dBu support, SteadyClock FS, tri-color metering, web/USB control, low latency.
The M-32 DA Pro II and M-32 DA Pro II-D are 32-channel, 192 kHz digital-to-analog converters designed for premium playback in professional studios, immersive audio installations, and live production environments. Featuring fully balanced outputs with per-channel level settings of +13, +19, or +24 dBu, they deliver a remarkable 119.8 dB(A) SNR with THD+N as low as -111 dB, ensuring unmatched clarity and dynamic range.
The Pro II model provides AVB network connectivity with dual redundant ports, while the Pro II-D integrates Dante networking for seamless operation in Dante-based systems, including direct 64-channel recording and playback via Dante Virtual Soundcard (license required). Both units include MADI I/O (coaxial and optional optical SFP), Word Clock, USB remote control, and dual redundant power supplies. A front display with tri-color peak/RMS meters and customizable channel labeling offers clear, instant feedback. With SteadyClock FS clocking, a powerful routing matrix, and robust redundancy, the M-32 DA Pro II series delivers transparent, reliable audio output for critical listening and high-channel-count distribution.
Features
32-channel digital-to-analog conversion with ultra-low distortion and high SNR performance.MADI I/O (coaxial & optional optical SFP) with seamless redundancy.Native Dante networking with dual redundant ports, up to 64 channels at 192 kHz, compatible with Dante Virtual Soundcard.Per-channel +24, +19, +13 dBu output level switching for professional studio and live use.SteadyClock FS ensures rock-solid clock stability.Tri-color illuminated channel labels for quick and clear identification.Integrated routing matrix allows any digital input channel to be sent to any analog output.Dual redundant internal PSUs for fail-safe operation.Front panel, network, USB, MIDI over MADI, and JSON API control options.1U rackmount form factor with magnetic label cover and preset storage.
Specifications
General Specifications:
Model: M-32 DA Pro II-DType: 32 channel digital to analog converter with MADI and DanteForm Factor: 1U 19 inch rackmountNetwork Protocol: Dante IP Core with two redundant Gigabit Ethernet portsRedundancy: Dual network, dual MADI, dual redundant PSU
Connectivity:

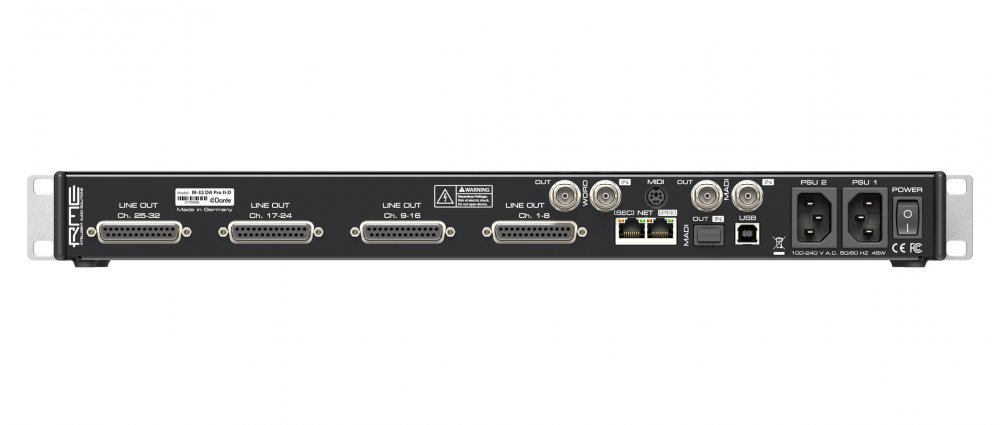

32 analog outputs via 25 pin D-sub up to +24 dBu2 MADI IO coaxial BNC2 MADI IO optical SFP optional multimode or single mode2 RJ45 Dante network ports up to 64 channelsWord Clock IO BNCUSB 2.0 for remote control and firmwareOptional MIDI IO for legacy remote control
Analog Line Output Specifications:
Resolution 24 bitOutput level switchable per channel +24 dBu, +19 dBu, +13 dBuDC coupled truly balancedOutput impedance 200 Ohm balanced, 100 Ohm unbalancedSNR at +13 dBu 116.0 dB RMS unweighted, 119.0 dBASNR at +19 dBu 116.3 dB RMS unweighted, 119.3 dBASNR at +24 dBu 116.5 dB RMS unweighted, 119.8 dBAFrequency response at 44.1 kHz 0 Hz to 22 kHzTHD at '1 dBFS less than '113 dB, less than 0.00022 percentTHD+N at '1 dBFS less than '111 dB, less than 0.00028 percentChannel separation greater than 110 dB
Features:
SteadyClock FS for jitter reduction and clock stabilityInternal single channel routing across all IOSyncCheck and Intelligent Clock ControlMADI Auto Input seamless redundancyTri color backlit channel indicators with peak RMS meteringMagnetic cover with customizable channel labels2 inch display with control knob15 preset storage with lock and dark modeRemote control via HTTP, JSON, MIDI over MADI, optional MIDIImpulse response optimization at 88.2 kHz and higherDante Virtual Soundcard support for up to 64 channels recording and playback
