RME HDSPe AIO Pro
UPC/EAN #4260123363352
MPN #HDSPe AIO Pro
24bit / 192kHz, 30 channel analog, ADAT, SPDIF and AES/EBU PCI Express card

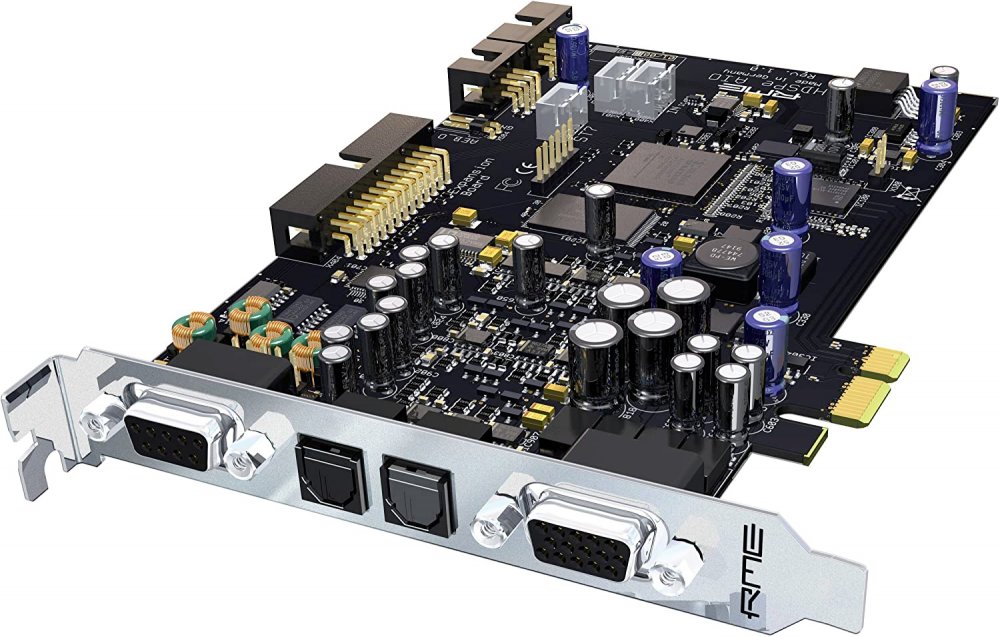

RME introduces the HDSPe AIO Pro PCI Express interface card, the successor of the popular HDSPe AIO. The Pro version provides professional users in the fields of studio and broadcast with the same high channel count as well as analog/digital input and output variety of the HDSPe AIO. In terms of technical features RME has completely reworked the HDSPe AIO Pro, defining the current state-of-the-art in PCI Express cards.
All inputs and outputs are simultaneously operational, even SPDIF (phono) and AES/EBU (XLR). Of course TotalMix, the unsurpassed flexible routing mixer and SteadyClock FS, RME's sensational clock technology with maximum jitter suppression of external clock signals, are on board too. HDSPe AIO Pro also supports the optional TCO for synchronization to timecode (LTC/video).
The HDSPe AIO Pro is based on the reference processors AK5572 and AK4490 derived from the high-end AD/DA converter ADI-2 Pro. The analog input range also uses the circuit design of the ADI-2 Pro (+24 / +19 / +13 / +4 dBu). In addition, RME has enhanced the outputs with additional reference levels (balanced: +24 / +19 / +13 / +4 dBu; unbalanced: +19 / +13 / +4 / -2 dBu) which allows even more versatile integration into audio systems. The HDSPe AIO Pro features a dedicated attenuator in the output section, resulting in an increased signal-to-noise ratio and a lower output impedance at low reference levels.
A further highlight of the HDSPe AIO Pro is the newly developed, powerful and extremely transparent headphone output. Thanks to mute relay including switchable output levels, there is no unwanted crackling noise at the headphone output and the analog XLR and RCA outputs when switching on the computer.
Features
Balanced* stereo analog in- and output, 24-bit/192kHzAll analog I/Os capable of 192 kHz, constant number of available channels1 ADAT digital I/O, supporting 192 kHz via S/MUX4 operation1 SPDIF digital I/O, 192 kHz-capable1 AES/EBU digital I/O, 192 kHz-capable1 High Power Headphone Output, separate DA-converter and playback device1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cableDIGICheck, RME's unique metering- and analysing toolTotalMix FX: 760 channel Mixer with 42 bit internal resolutionNative PCI Express - no PCI to PCI Express bridge usedOutputs with Mute Relais+24 dBu I/O Levels
Specifications
Analog Inputs
RCA (Standard D-Sub Breakout cable)
Input: Cinch (RCA), unbalancedInput impedance: 18 kOhmInput sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFSSignal to Noise ratio (SNR) @ +19/24 dBu: 117 dB RMS unweighted, 120 dBASignal to Noise ratio (SNR) @ +13 dBu: 116 dB RMSu nweighted, 118 dBASignal to Noise ratio (SNR) @ +4 dBu: 112 dB RMSu nweighted, 114 dBAFrequency response @ 44,1 kHz, -0,1 dB: 7 Hz - 20.5 kHzFrequency response @ 96 kHz, -0,5 dB: 3 Hz - 45,5 kHzFrequency response @ 192 kHz, -1 dB: 2 Hz - 92 kHzTHD @ -1 dBFS: -114 dB, 0,0002 %THD+N @ -1 dBFS: -110 dB, 0,0003 %Channel separation: > 110 dB
XLR (optional D-Sub Breakout cable)
as RCA, except:
Input: XLR, servo-balancedInput impedance balanced: 36 kOhm, unbalanced: 18 kOhmSignal to Noise ratio(SNR) @ +4 dBu: 116 dB RMS unweighted, 118 dBA
Analog Outputs
RCA (Standard D-Sub Breakout cable)
Output: Cinch (RCA), unbalancedOutput impedance+19/+13 dBu: 75 Ohm. +4/-2 dBu: 80 OhmOutput impedance switchable +19, +13 dBu, +4 dBu, -2 dBu @ 0 dBFSSignal to Noise ratio (SNR) @ +19 dBu: 117 dB RMS unweighted, 119 dBASignal to Noise ratio (SNR) @ +13 dBu: 116 dB RMS unweighted, 118 dBASignal to Noise ratio (SNR) @ +4 dBu: 114 dB RMS unweighted, 116 dBASignal to Noise ratio (SNR) @ -2 dBu: 110 dB RMS unweighted, 112 dBAFrequency response @ 44.1 kHz, -0,1 dB: 10 Hz - 20,2 kHzFrequency response @ 96 kHz, -0,5 dB: 4 Hz - 44,6 kHzFrequency response @ 192 kHz, -1 dB: 3 Hz - 83 kHzTHD @ 0 dBFS: < -107 dB, 0,0005 %THD+N @ 0 dBFS: -105 dB, 0,0006 %Channel separation: > 110 dBXLR (optionales D-Sub Breakout cable)
as RCA, except:
Output: XLROutput impedance +24/+19 dBu: 150 Ohm, +13/+4 dBu: 160 OhmOutput level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFSSignal to Noise ratio (SNR) @ +24 dBu: 117 dB RMS unweighted, 120 dBA
Phones
as RCA, except:
Output: 6.3 mm TRS jack, unbalanced, stereoOutput impedance: 0.1 OhmSignal to Noise ratio (SNR) @ +19 dBu (Hi-Power): 117 dB RMS unweighted, 119 dBASignal to Noise ratio (SNR) @ +7 dBu (Lo-Power): 113 dB RMS unweighted, 115 dBAOutput level at 0 dBFS, Hi-Power, load 150 Ohm or up: +19 dBu (6.9 V)Output level at 0 dBFS, Lo-Power, load 16 Ohm or up: +7 dBu (1.73 V)THD+N @ + 15 dBu, 32 Ohm load, 590 mW: -97 dB, 0.0016 %Max power @ 0.1% THD 32 Ohm: 730 mW per channel
Digital Inputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992High-sensitivity input stage (< 0,3 Vss)SPDIF compatible (IEC 60958)Accepts Consumer and Professional format, copy protection will be ignoredLock Range: 28 kHz - 200 kHz
SPDIF
1 x RCA, transformer-balanced, according to IEC 60958High-sensitivity input stage (< 0,3 Vss)AES/EBU compatible (AES3-1992)Accepts Consumer and Professional format, copy protection will be ignoredLock Range: 28 kHz - 200 kHz
ADAT Optical
1 x TOSLINK, format according to Alesis specificationStandard: 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 channels 24 bit 192 kHzBitclock PLL ensures perfect synchronisation even in varispeed operationLock range: 31.5 kHz - 50 kHz
Digital Outputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992Output level 4,0 VssFormat Professional according to AES3-1992 Amendment 4Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF
1 x RCA, transformer-balanced, according to IEC 60958Output level Professional 2.3 Vpp, Consumer 1.0 VppFormat Professional according to AES3-1992 Amendment 4Format Consumer SPDIF according to IEC 60958Single Wire mode, sample rate 28 kHz up to 200 kHz
ADAT
1 x TOSLINK, format according to Alesis specificationStandard: 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 channels 24 bit 192 kHz
Digital
Clocks: Intern, ADAT In, SPDIF In, Sync In, optional Word clock In / LTC inJitter suppression of external clocks: > 50 dB (2,4 kHz)Effective clock jitter influence on AD and DA conversion: near zeroPLL ensures zero dropout, even at more than 100 ns jitterDigital Bitclock PLL for trouble-free varispeed ADAT operationSupported sample rates: 28 kHz up to 200 kHz
MIDI
1 x MIDI I/O via 5-pin DIN jacksGalvanically isolated by optocoupled inputHi-speed mode: Jitter and response time typically below 1 msSeparate 128 byte FIFOs for input and output
