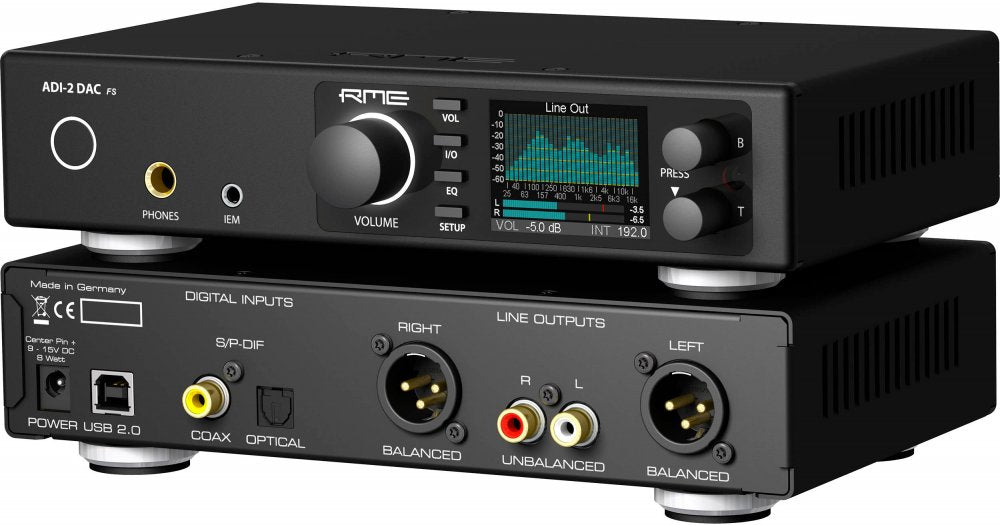

RME ADI-2 DAC FS
24bit / 768kHz, 2 out hi-performance DA converter with USB
The ADI-2 DAC includes an improved SteadyClock, a fine-tuned to perfection analog circuitry, new MRC remote control, Extreme Power headphone output and a very special IEM output. It has all the bells and whistles that made the ADI-2 Pro famous, including its perfectly transparent sound signature and full DSP processing with Bass, Treble, Loudness, 5 Band Parametric EQ, Crossfeed and much more. With its simplified operation and stunning design it is the ideal center piece from home listening up to studio reference playback.
The ADI-2 DAC is the home and hi-fi optimized version of the ADI-2 Pro, a studio AD/DA converter of the highest quality. With many fresh ideas, innovative features and numerous useful functions, the ADI-2 DAC quickly became the reference. Thanks to its combination of high-end DA conversion with two exceptional headphone IEM outputs and a remote control, it has received countless enthusiastic reviews for its sound, flexibility, and technical capabilities.
The current version of the ADI-2 DAC comes with an extended remote control, a further improved DA conversion and an adapted analog output stage for even better noise and distortion values. To address the home and HiFi users, RME exchanged some of the Pro's studio features with typical home and HiFi ones. With an adapted feature set and much simplified operation RME proudly presents the ADI-2 DAC. Built on the technology, concept and features of the ADI-2 Pro, the DAC concentrates on DA conversion in top high-end quality, along with two exceptional headphone and IEM outputs.
Packed into the compact half 19? format factor, this little gem is filled with the finest high-end electronics, offering a reference class conversion from SPDIF coaxial, SPDIF optical (ADAT compatible) and USB to RCA, XLR, TRS and mini-TRS.
As the most versatile DAC available, the ADI-2 DAC offers balanced/unbalanced analog I/Os, an Extreme Power headphone output, a super low noise IEM output, SteadyClock FS, 4-stage hardware output level control, DSP-based signal processing, external power supply operation, Class Compliant USB compatibility, sample rates up to 768 kHz as well as DSD playback. The SPDIF input signal can even be recorded via USB - as one would expect from RME the DAC is a true 2 channel Full Duplex audio interface.
The updated ADI-2 DAC uses ESS's ES9028Q2M in a special circuit variant developed by RME engineers that allows the chip to perform at its best. With noise levels of 123 dBA, distortion less than -120 dB, or THD+N of -116 dB, the device delivers outstanding measured values, and allows the IEM output to reach a sensational low noise level of -121 dBu. In addition, there is +2.5 dB of digital headroom, so that high intersample peaks do not produce any audible distortion. The reserve in volume setting results in a still undistorted analog output signal even at a volume setting of +2.5 dB.
There are no significant changes in operation, features and behavior compared to the predecessor, which is why neither appearance nor name have changed. All differences are explained in the detailed manual of the ADI-2 DAC.
Super Low Noise for IEM lovers
The headphone revolution not only brought headphones but also IEMs (in ear monitors) back into the attention of audiophiles and music lovers. Modern IEMs have a reference sound that easily competes with bulky over-ear headphones, making them not only a mobile alternative, but also an interesting solution in home.
Modern IEMs are extremely sensitive and operate on very low voltages. As a side effect they uncover the noise floor of the player, DAC or headphone amp. When RME developed its Extreme Power headphone stage the basic noise floor was taken care to be as low as possible. Which was then confirmed in many reviews (most black background...). Even when used with IEMs.
Still RME wanted to make sure that even the most sensitive IEM combined with the most sensitive listener receive the full dynamic range on playback. Also capable outputs like the Extreme Power ones are not fully safe against operating errors and might blow up ears or IEMs.
RME's solution: adding the most advanced IEM output imaginable as second phones connection to the front of the ADI-2 DAC. Its ground noise floor is an astounding 10 dB lower than the one of the Extreme Power output (black hole background?), output impedance is near zero Ohms, THD reaches new record lows, click-free on/off is included as well as volume ramp-up, and the sound quality with any IEM is just amazing. We're sure you will love it!
A studio converter with all lights off Defective. But on a DAC it was one of the most often requested features from our ADI-2 Pro HiFi customers. Here we go: display, function keys, volume knob, even the standby button - they all go off after 10 seconds of no user operation when AutoDark is activated in the unit's menu. Touching any button or control will turn on all lights for 10 seconds. Using the remote AutoDark can also be switched off / on, and using any button on the remote turns lights on for 3 seconds. Once again: we're sure you will love it!
SteadyClock FS - Reference class Digital Clocking
Excellent performance in all clock modes and High Quality Analog Conversion to hear your mix as it is, with lowest jitter and highest jitter immunity.
DigiCheck - The Secret Weapon of High Resolution Audio Measurements
RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.
New extended Multi-Remote Support (MRC)
The ADI-2 DAC comes with a remote that is not the usual cheap add-on. This nicely designed remote control has clearly labeled buttons, readable even in low light conditions without reading glasses, a nicely laid out button arrangement that is easy to remember, and perfect button ergonomics. Plus: It won't interfere with your ATV or other devices.
The ADI-2 DAC remote control provides buttons for standby on/off, volume, balance, bass and treble, input selection (optical, coaxial, USB), mute, on/off loudness, bass/treble and EQ. In addition, there are four programmable buttons that provide access to 32 different functions and commands for maximum flexibility. There is no other converter or comparable device with such a sophisticated, easy to use and at the same time versatile remote control!
Note for owners of the previous remote: the new MRC is also available separately as an accessory. It can be used with all ADI-2 DACs, even older ones, if they are equipped with the latest firmware (at least version FPGA 27, DSP 33).
The ADI-2 DAC is the first device in RME's range with SteadyClock FS. There is not much to improve with SteadyClock, it has earned its accolades over years of flawless operation in numerous RME devices, guaranteeing that using the internal clock will produce exactly the same sound as when using an external one. SteadyClock highly rejects jitter and handles all digital interface formats in an exemplary way. That's why SteadyClock's design and behavior didn't change in the DAC.
With SteadyClock FS the focus was put on reducing the self jitter of SteadyClock to new lows, by improving its second, analog PLL circuit, and referencing both Direct Digital Synthesis and PLL to a low phase noise quartz crystal. The self jitter measured through DA conversion now reaches levels that usually are only available in master quartz clock mode, while SteadyClock still always runs in PLL mode - no matter if internal or external clock, sound is exactly the same (again). The low phase noise oscillator driving the updated circuit reaches jitter specs lower than a picosecond (ps), an area called FemtoSecond. Hence SteadyClock FS.
A bit test is used to check the playback path for unwanted changes in the playback data. Playback software can cut bits, add dither, or change the level - without these changes becoming noticed easily. A poorly programmed driver can manipulate bits, and a playback hardware could be both badly designed and defective (hanging bits, swapped bits). Even such features as proper channel assignment, left/right synchronicity and polarity can be tested by a well-made bit test.
With a bit test, such errors can be detected and - more importantly - excluded.
SteadyClock FS - Reference class Digital ClockingDigiCheck - The Secret Weapon of High Resolution Audio MeasurementsSample rates up to 768 kHzDSD playbackExtreme Power headphone output4-stage hardware output level controlDSP-based signal processing
Lock Range: 28 kHz " 200 kHzJitter suppression: > 50 dB (2.4 kHz)Jitter when synced to input signal: < 1 nsAccepts Consumer and Professional format
1 x RCA, according to IEC 60958High-sensitivity input stage (< 0.3 Vpp)AES/EBU compatible (AES3-1992)
1 x optical, according to IEC 60958ADAT compatible
Output level switchable +19 dBu, +13 dBu, +7 dBu, +1 dBu @ 0 dBFSSignal-to-noise ratio (SNR) @ +7/+13/+19 dBu: 120 dB RMS unweighted, 123 dBASignal-to-noise ratio (SNR) @ +1 dBu: 117 dB RMS unweighted, 120 dBAFrequency response @ 44.1 kHz, -0.1 dB: 0 Hz " 20.2 kHzFrequency response @ 96 kHz, -0.5 dB: 0 Hz " 44.9 kHzFrequency response @ 192 kHz, -1 dB: 0 Hz " 88 kHzFrequency response @ 384 kHz, -1 dB: 0 Hz " 115 kHzFrequency response @ 768 kHz, -3 dB: 0 Hz " 109 kHzTHD @ 0 dBFS: < -120 dB, 0.0001 %THD+N @ 0 dBFS: -116 dB, 0.00016 %Channel separation: > 120 dBOutput impedance: 200 Ohm
As output XLR, but:
Output: 6.3 mm TS jack, unbalancedOutput level 6 dB lower than XLR (-5 dBu to +13 dBu @ 0 dBFS)Signal-to-noise ratio (SNR) @ +13 dBu: 120 dB RMS unweighted, 123 dBASignal-to-noise ratio (SNR) @ +1/+7 dBu: 116/119 dB RMS unw., 119/122 dBASignal-to-noise ratio (SNR) @ -5 dBu: 112 dB RMS unweighted, 114 dBAOutput impedance: 100 Ohm
As RCA, but:
Output: 6.3 mm TRS jack, unbalanced, stereoOutput impedance: 0.1 OhmSignal-to-noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBASignal-to-noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBAOutput level at 0 dBFS, High Power, load 100 Ohm or up: +22 dBu (10 V)Output level at 0 dBFS, Low Power, load 8 Ohm or up: +7 dBu (1.73 V)THD @ +18 dBu, 32 ohm load, 1.2 watts: -120 dB, 0.0001 %THD+N @ + 18 dBu, 32 Ohm Load: -114 dB, 0.0002 %THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 %Max power @ 0.001% THD: 1.5 W per channel
As Phones, but:
Output level at 0 dBFS: -3 dBu, 0.55 VSignal-to-noise ratio (SNR) @ -3 dBu: 118 dB RMS unweighted, 121 dBAMax power, 8 Ohm, 0.001% THD: 40 mW per channel
Clocks: Internal, SPDIF InJitter suppression of external clocks: > 50 dB (2.4 kHz)Effective clock jitter influence on DA conversion: near zeroPLL ensures zero dropout, even at more than 100 ns jitterAdditional Digital Bitclock PLL for trouble-free varispeed ADAT operationSupported sample rates for external clocks: 28 kHz up to 200 kHzInternally supported sample rates: 44.1 kHz up to 768 kHz
Included power supply: external switching PSU, 100 - 240 V AC, 2 A, 24 WattsStandby power consumption: 120 mW (10 mA)Idle power consumption: 7 Watts, Max. power consumption: 18 WattsIdle current at 12 V: 570 mA (6.8 Watts)Dimensions (WxHxD): 215 x 52 x 150 mm (8.5" x 2.05" x 5.9")Weight: 1.0 kg ( 2.2 lbs)Temperature range: +5° up to +50° Celsius (41° F up to 122°F)Relative humidity: < 75%, non condensing
Langley, BC, Canada
February 18, 2021
Leading DAC for audiophiles of stereophonic excellence on steroids!
I picked up this gem after reading the Audio Science Review which you can find here:
At the link above you'll find all the "gear head" mathematics and physics of sound stuff you'll likely want to know. Read more
Full disclosure: Mathematics and Physics degree :)
[distortion level now is state of the art with levels at -130 dB (15 dB better that best case human hearing)]
I paired this RME ADI-2 DAC FS with a pair of Neumann NDH 20 closed headphones (also available at Studio Economik!) and the result is stunning.
Previously I had the headphones on the RME Babyface Pro, which was already very good. Unlikely as it may sound (pun intended) the RME ADI-2 DAC FS does even better for the listener. (NOTE: the RME ADI-2 Pro FS R version adds the recording functionality in addition to the playback functions for the studio oriented connectivity and monitoring, with the same chip )
The SNR floor is fabulous, actually beyond the hearing of the normal human ear. There is EQ available so you can 'shape sound frequencies to your taste' but I haven't even found that necessary; although a great feature, unlike many other competitive or even higher end DACs. Out of the box experience was great as the firmware was already the latest, and simply loading the driver, plugging in the USB connection and headphones and you're "good to go". Also comes with a full manual with all the combinations and permutations of connectivity and EQ adjusting...which I have colloquially named the "RME DAC Bible".
Ripped a couple of CDs which were already great, on the stereo system and they sound even better through the DAC, which in my view is a stellar achievement.
Hooked up the DAC to the computer and streams from music, video, podcasts, and even computer gaming showed the RME ADI-2 DAC FS always came through with a cleaner and better sonic experience. Even if one is hearing impaired one can compensate tailored audio levels between left and right. One would be hard pressed to come up with a better sonically engineered DAC at this price point; considering its generous flexiblity.
I emailed Mario Gauvreau and he had one in stock, by the time I responded it was gone. Studio Economik drop shipped a unit and it was here across country in 4 days during the pandemic; which is great considering the obstacles. Your "go to guys" when quality and efficiency matters...
The two words I would describe the RME ADI-2 DAC FS from a sonic point of view: excellence and flexibility
Thank you all for a great experience.
Cheers and much success! :)
