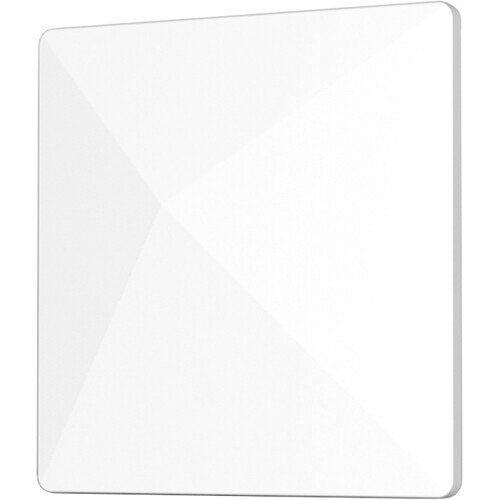

RF VENUE Diversity Architectural Antenna (White)
UPC/EAN #672975227395
MPN #D-ARC
Antenna for UHF Wireless Microphone with BNC Connection, Mounting Plate with Pre-Drilled Holes and an operating frequency of 470 to 698 MHz
The new Diversity Architectural Antenna by RF Venue is a high-performance antenna system for wireless microphones. It features a slim profile enclosure so that the Diversity Architectural Antenna can be installed in any position on a wall or ceiling, and you can paint it to match any interior so it blends in. We use a unique patent-pending dual-feed antenna design that includes both A and B diversity connections, so there is no need to install two separate antennas for your system for wireless microphones. This helps you avoid drops from your wireless microphones, and it gives the venue a more professional look.
The Diversity Architectural Antenna takes minutes to install, with its rear-mounted plate that comes pre-drilled with multiple options for a mounting hole. The rear plate easily connects to the front plate and is secured with screws. Then, all you need to do to finish installing this antenna system for wireless microphones is connect the two rear-mounted BNC-terminated coaxial cables to your coaxial cable run and the Diversity Architectural Antenna.
RF Venue's Diversity Architectural Antenna builds on our highly acclaimed Diversity Fin, which eliminates the most common wireless mic signal dropouts that are caused by changes in the angle and orientation of the RF signal. This antenna system is ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship. Our Diversity Architectural Antenna fits into any interior design and delivers professional RF performance in a sleek, industrially designed enclosure.
Features
Improves Wireless Microphone ReceptionFor Classrooms, Conference/Event SpacesMounts to Wall or CeilingA and B Diversity ConnectionsBNC ConnectionAntenna Design Maximizes CoverageMounting Plate with Pre-Drilled HolesCeiling & Wall Mounting Kits Included
Specifications
Wireless
Antenna Type: PanelInput/Output: 2x Coaxial BNC FemaleCompatibility: Not Specified by ManufacturerOperating Frequency: 470 to 698 MHzGain: 3 dBiNumber of Antennas: 2
Environmental
Operating Temperature: 14 to 104F / -10 to 40C
Physical
Color: WhiteDimensions: H: 2.0 x W: 11.0 x D: 11.0" / H: 50.00 x W: 280.00 x D: 280.00 mmWeight: 2 lb / 0.9 kg
Packaging Info
Package Weight: 2.73 lbBox Dimensions (LxWxH): 12.4 x 12 x 2.6"
What Is In The Box
RF Venue Diversity Architectural Antenna (White, 470 to 698 MHz)Ceiling Hardware Mounting KitWall Hardware Mounting KitLimited 1-Year Manufacturer Warranty
