RF VENUE 2X1SPLIT

UPC/EAN #718122340712 MPN #2X1SPLIT

$139.00

Save 18.2%, MSRP $170.00

Be the first to write a review

Free shipping in Canada. Conditions

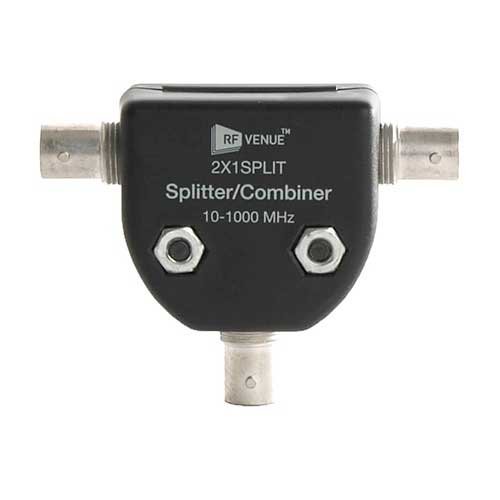

The T2x1SPLIT is a passive splitter/combiner, BNC female connectors

Use the 2x1Split to make an 8 channel IEM combiner, create a distributed antenna system, or to tap into your spectrum analyzer to get more insight into your setup.

Features

One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out. R1 channel passes 12V DC if DC over coax is provided.

Specifications

RF Carrier Frequency Range: 10-1,000 MHz VSWR (Voltage Wave Standing Ratio)

1.2 Impedance: 50 Ohm Isolation

20dB Insertion Loss: 2dB

Dimensions: 72.2x54.9x23.6 mm

Weight: 62.6g
