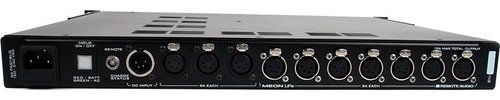

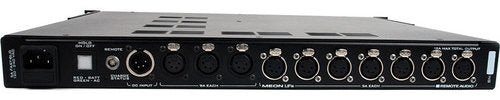

The Meon LiFe provides 12VDC power to ten 4-pin XLR outputs. Three outputs are rated to 9A and the remaining seven are rated to 5A.
Each output has built-in overload and short-circuit protection.
Since smartphones and tablets have become ubiquitous on set, the Meon LiFe is equipped with two 5VDC USB charging ports on the front panel. These ports are capable of providing up to 2A of charging current and are optimized to quickly charge Apple devices.
INTERNAL BATTERY BACKUP
If AC power is ever interrupted, the Meon LiFe seamlessly switches to its internal 20 Amp-hour Lithium Iron Phosphate (LiFePO4) battery. This relatively new battery technology makes the Meon LiFe smaller, lighter and more stable than previous cart power systems.
External lead-acid batteries or Extra LiFe battery packs can be connected to the Meon LiFe to increase the battery run time of the system. The three-stage internal battery charger automatically charges these batteries whenever AC power is present.

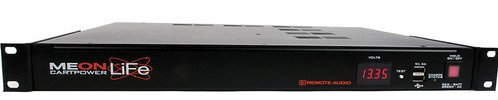

The illuminated voltmeter on the front panel gives you constant feedback of the voltage present at the output connectors. The charge status LED indicates when the batteries are fast charging (red), topping (flashing green) or fully charged (solid green). When the Meon LiFe is off, pressing the Test button will display the voltage of the battery.
FLEXIBLE RACK MOUNTING
The removable rack ears can be used to mount the Meon LiFe in a variety of different configurations. Mirrored, illuminated front and rear power switches allow you to power the unit on or off from either side.
The Meon LiFe also comes equipped with a Remote Port to connect an RM or RS (sold separately).
Convection cooling prevents the need for noisy internal fans.Automatic 10V cutoff circuit protects external lead-acid batteries from over-discharge.Internal battery can be fully recharged in 3 hours or less.The complete system weighs less than 13 pounds.
Dimensions: 19.00 x 13.00 x 1.75 (1 Rack Space)
Weight: 12.6 lbs
AC Input Voltage: 100-120 or 200-240VAC, 50-60Hz
DC Input Voltage: 12V Nominal Lead Acid or LiFePO4
DC Output Voltage: 12V Nominal, shutdown below 10V
Output Current: 18A Max Total (AC), 14A Max Total (Internal Batt.) *
Output Connectors: 3x Neutrik 4-Pin XLR Female, rated at 9A each
7x Neutrik 4-Pin XLR Female, rated at 5A each
Battery Capacity: 20 Ah (expandable with Extra LiFe modules or external lead acid batteries)
Battery Charge Time: ~3 hours (more with supplemental battery connected)
Power Switch: Front and Rear mounted
Green = AC connected, Red = AC disconnected
2 second Delay ON/OFF
USB Ports: x 2, Max Combined Total of 2A @ 5V (10W)
Manufacturer Part Number : MEONLife
