Radial Engineering Nuance Select
UPC/EAN #676101046416
MPN #R800 2026
$839.99
Save 16.7%, MSRP $1008.00
Monitor controller with two source inputs, mono summing, mute and dim switches, speaker A/B and sub outputs, independent headphone level control and aux output for external devices
The Nuance Select is a studio monitor controller designed so you can hear every single detail through your speakers, with a distortion profile so low that it cannot be measured by most audio testing equipment.
Control without Coloration
The Nuance Select is a studio monitor controller designed so you can hear every single detail through your speakers, with a distortion profile so low that it cannot be measured by most audio testing equipment. Complete audio transparency is achieved through an innovative circuit that allows you to hear the true mix through your speakers without any sacrifice in audio quality, all while still providing you with total control over your monitor setup.
Looking the Part
Housed in a robust steel enclosure with a milled aluminum faceplate, the Nuance Select will fit the aesthetic of any studio space and easily incorporate into your workflow, with an ?everything you need and nothing that you don't' approach to the feature set. Backlit monitor selection and control switches are complemented by oversized chrome knobs on the headphone and master level controls.
Inputs, Outputs, and Useful Add-ons
The Nuance Select features two sets of stereo source inputs, along with two sets of balanced TRS outputs for powered speakers. A full-range subwoofer output is also included that can be activated with either set of speakers as desired. Two independent headphone amplifiers are available for monitoring or control room tracking " each headphone output can be assigned to its own stereo source so you can feed a cue mix to an artist while monitoring the main mix yourself. The headphone outputs are provided on easily accessible front panel jacks, and a stereo Aux output is available on the rear panel that can be used to feed an additional headphone amplifier for live room tracking.
Features
Transparent Monitoring: Provides clear, uncolored audio for accurate mixing.Multiple Input Sources: Switch between two input sources for flexibility.Mono, Mute, and Dim Controls: Mono sums channels, Mute cuts output, and Dim lowers volume by -15dB.Switchable Speaker Outputs: Toggle between two sets of speaker outputs, with independent subwoofer control.Independent Headphone Monitoring: Two headphone outputs with individual volume controls and source selection.Aux Output: Direct feed to additional audio devices like headphone amplifiers.Stepped Level Control: Precise level adjustments with consistent left-right balance.High-Quality Build: Class-A signal path for ultra-low distortion.
Specifications
General Specifications
Monitoring system designed for transparency without sound colorationClass-A signal path, capacitor-free design with DC servos21-position stepped attenuator for main level control, matched within 0.1 dBConstruction: Milled aluminum faceplate with 18-gauge steel chassisDimensions: 10" x 5.25" x 3" (254 x 133 x 76 mm)Power: +15V, +5V DC, 29W max (external power supply included)Operating temperature: +5C to +40C
Audio Specifications
Frequency response: 2 Hz - 200 kHz ±0.25 dB @ +4 dBuMaximum input: +27 dBuMaximum output: +26 dBuInput impedance: 20 k?Output impedance: 112 ?Total Harmonic Distortion (THD): <0.00001%, -140 dB balanced outputs @ 1 kHz @ +18 dBuSignal-to-noise ratio: 125 dB, 127 dB A-weightedCrosstalk: -125 dB @ 1 kHz, -110 dB @ 10 kHz
Headphone Amplifier Specifications
Output impedance: 2.5 ?Output power: 33 mW x 2 @ 22 ?, 100 mW x 2 @ 68 ?THD: 0.00012%, -118 dBSignal-to-noise ratio: 112 dB
Connectivity

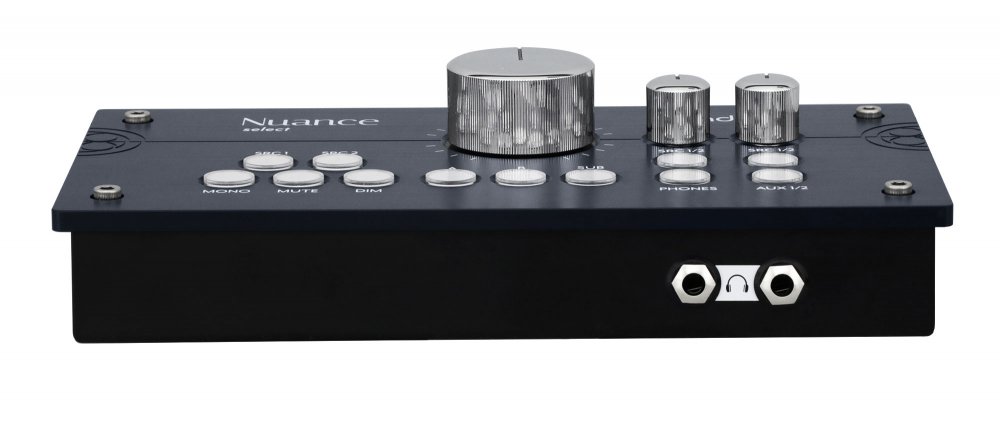

Front panel:2 headphone outputs (1/4" TRS), Independent source selection and volume control for each headphone outputRear panel: 2 balanced line-level stereo inputs (Source 1 & 2, 1/4" TRS), 2 balanced line-level stereo outputs for speakers (Speaker A & B, 1/4" TRS), Balanced line-level mono subwoofer output (1/4" TRS), Stereo unbalanced Aux output (1/4" TRS)

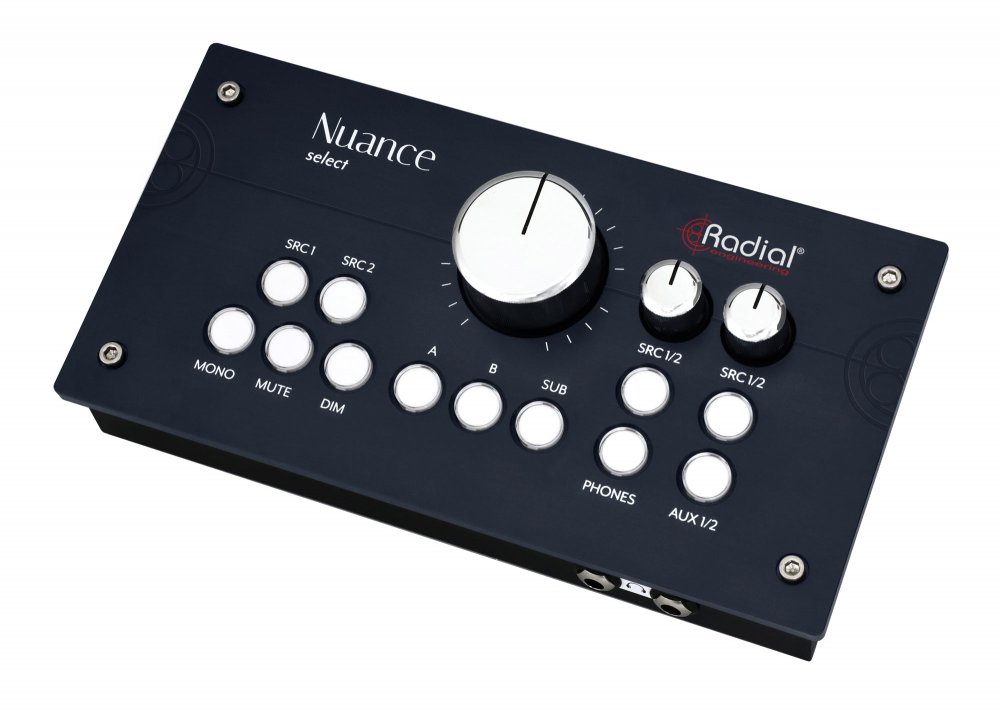

Front Panel Controls
Source selection (SRC 1 & SRC 2)Mono switch (sums left and right channels)Mute switch (cuts speaker and sub outputs)Dim switch (-15 dB volume reduction)Speaker output selection (A & B)Subwoofer activationLevel control (for speaker and sub outputs)

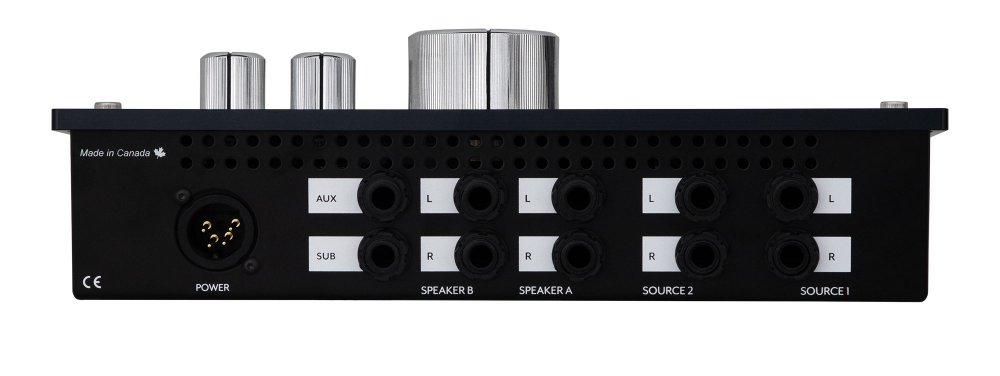

Rear Panel Features
Power connection: Locking connector for external power supplyBalanced line-level outputs for speakers and subwooferUnbalanced stereo Aux output for external headphone amplifiers or other devices
