UPC/EAN #676101044283     MPN #R800 7210

$149.99

Save 16.7%, MSRP $180.00
Free shipping in Canada for orders over $200

Instrument selector w/LEDs, true-bypass with trim level control

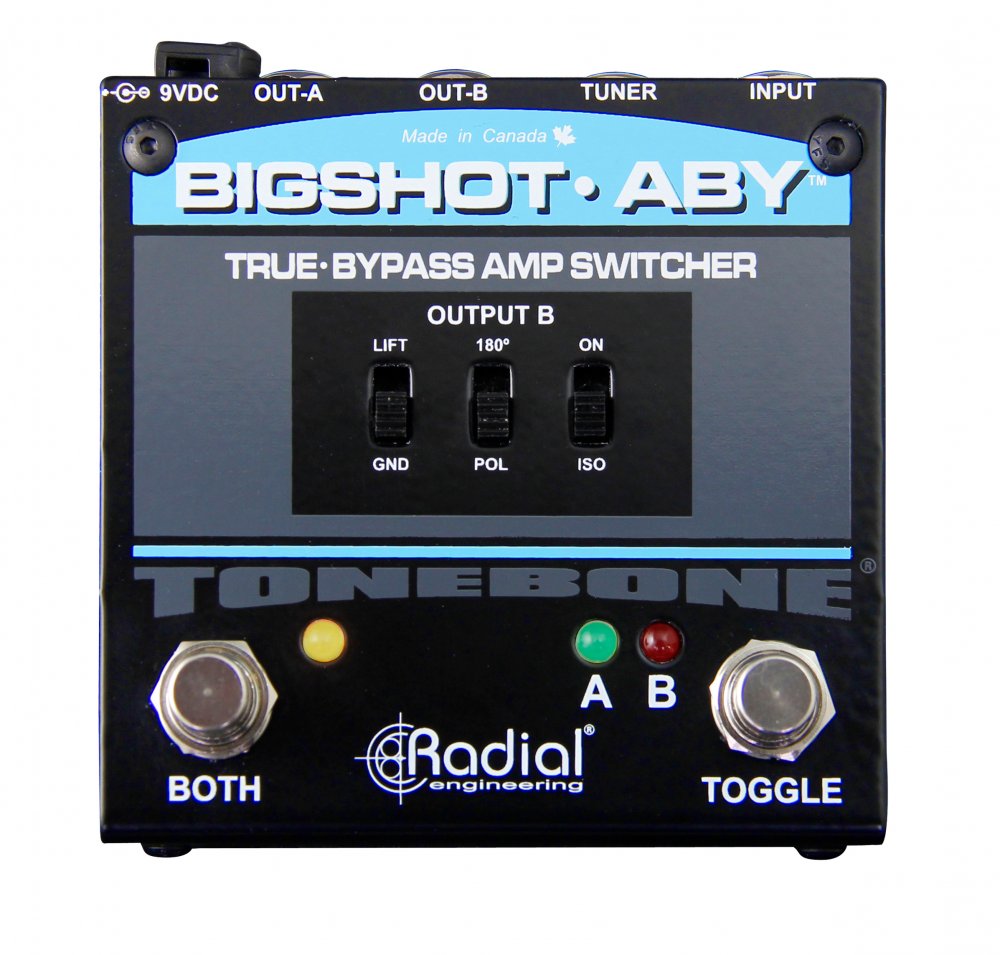

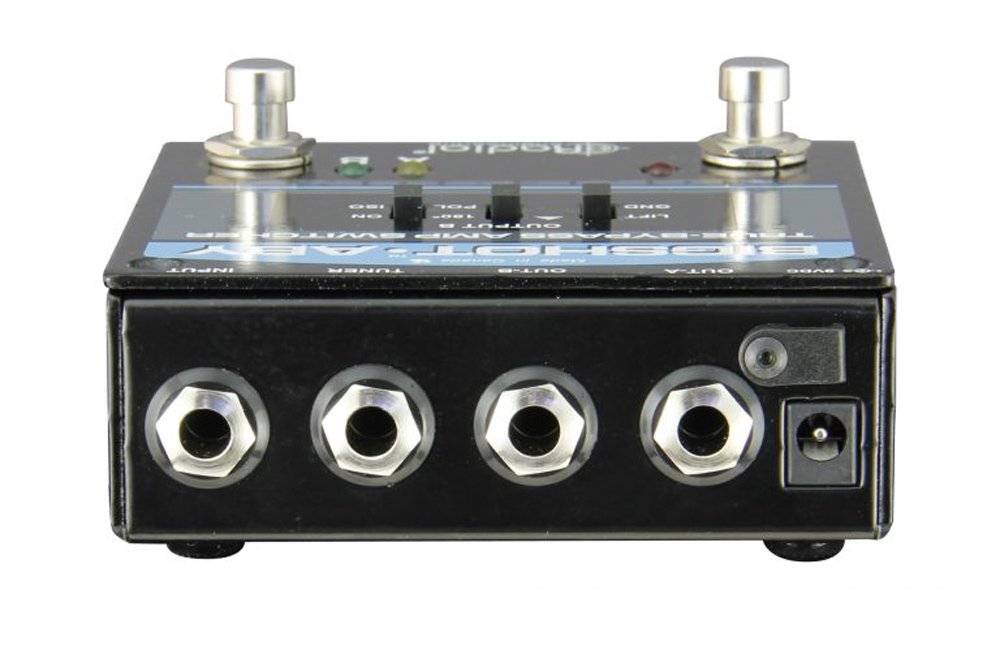

The BigShot ABY is an ultra compact, 100% passive foot switch that provides ABY amp switching capabilities with A or B toggle and A + B combine functionality. It features 'straight wire' true-bypass connectivity for the purist. This assures the guitar signal is routed directly to the amp without any buffering, loading or tone altering circuits.

To add versatility, the BigShot ABY has a built-in transformer that can be engaged to eliminate troublesome ground loops. Once engaged, you can use the 180o polarity reverse switch to ensure your amps are in-phase. An additional tuner output is offered allowing you to split the input signal and send it to another device.

When powered by an external 9V power supply or pedalboard power brick, full sized LED's provide instant on-stage amplifier status. The compact yet ultra rugged design makes the BigShot ABY ideal for pedalboards where space is always at a premium.instrument.
  • True-bypass ABY amp selector with LED indicators
  • On-board transformer to eliminate hum & buzz
  • 180° polarity reverse to phase-match amps
  • 100% passive audio path, does not require power
  • Applications
  • . Switch or combine two amps
  • . Switch between two instruments and one amp
  • . Tuner output is always on for quick adjustments

  • Cool Stuff
  • . Plug and play easy to use
  • . 100% passive audio circuit
  • . Compact and rugged, perfect for pedalboards
  • . Works with all instruments: guitar, bass, keys

  • Dimensions (W x D x H)
  • . 3.6"x4"x2" (92mmx100mmx51mm)
  • . 3 Year transferable warranty
