MPN #V3110 MKII

$9400.00

Financing available
Free shipping in Canada. Conditions

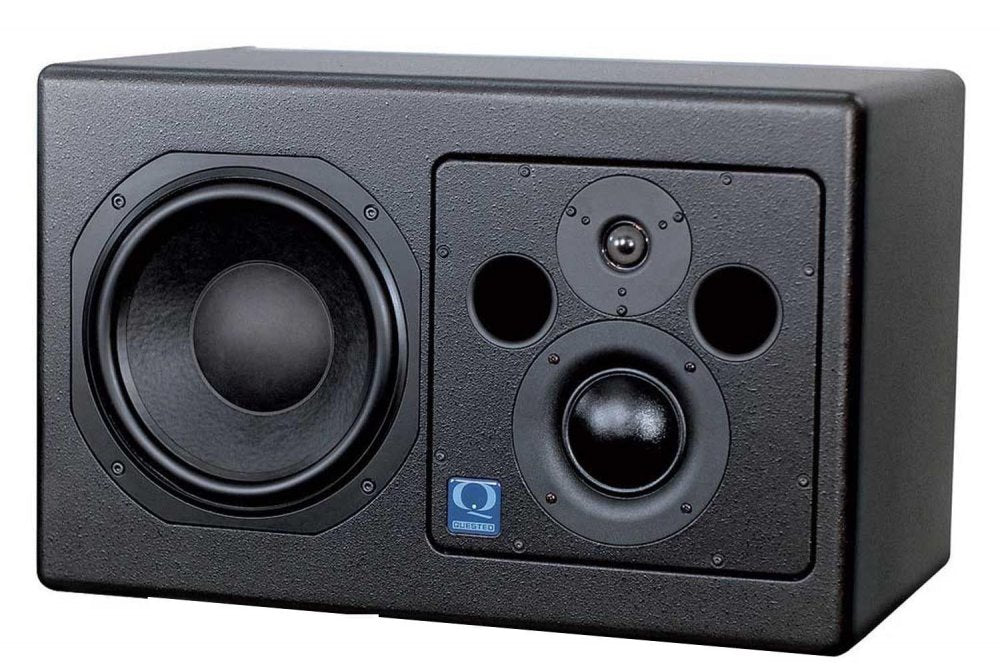

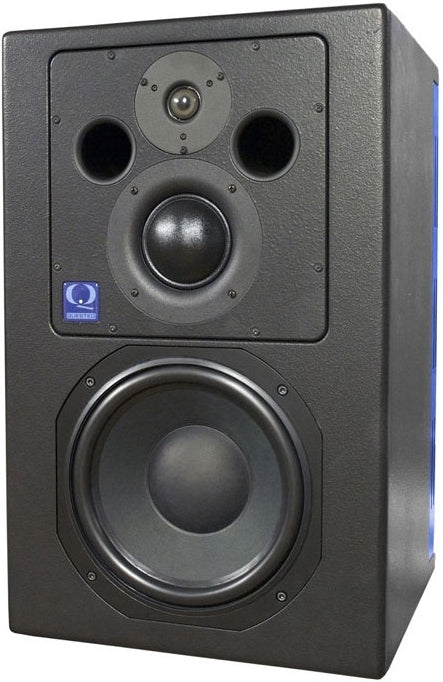

Self powered 3-Way 10" mid-field / main system reference monitor



Designed for use in near to midfield applications, the V3110 is our most powerful self powered monitor and, because of its 1000 watts of class AB and class D amplification, it is one of the most powerful in its class. The three way design of the V3110 and the utilisation of the soft dome mid and high frequency drivers along with the custom 10 low frequency driver mean that the V3110 truly can deliver for the most demanding of material with a flat response down to 30Hz.

The successor to the VS3208, a favourite with the dance and remix fraternity the V3110 has been able to improve on the low end performance whilst maintaining that precision recognised in the VS3208. Producing a very linear response along with the capability of high SPL the V3110 is also a favourite of the scoring community. Delivering a dynamic and very natural sound stage with a response all the way down to the lower register of a church organ the V3110 is the flagship product of the powered monitors from Quested.
TECHNICAL SPECIFICATION
Size: 380 x 600 x 360mm (w x h x d)
Weight: 39kg / 86lb
Driver: Low Frequency 1 x 250mm(10)
Mid: 1 x 75mm (3") soft dome
High Frequency: soft dome 1 x 28mm (1 1/8)
Frequency Response: 34Hz - 20kHz ±2dB / 30Hz - 22kHz -6 dB
Maximum SPL: 115.5 dB continuous pink noise @ 1m Leq 1 minute. 121.5 dB continuous pink noise per pair @ 1m Leq 1 minute

INPUT
Connector: XLR3 type-Female
Impedance: 10k Electronically balanced with RF filters
Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold
Sensitivity: Rear mounted 10 position rotary switch calibrated in 2dB steps
Minimum sensitivity +4dBu for 100dB SPL @ 1m
Maximum sensitivity -14dBu for 100 dB SPL @ 1m

FILTERS
Subsonic: -3dB @ 14Hz, 24dB/oct
Crossover Points: 650Hz, 2k5H, 24dB/oct.
User LF EQ: 4 position rear mounted selector to select FLAT for normal use. -9dB and -3dB for cut below 100Hz, +1dB for lift above 80Hz.
User MF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 650Hz to 2k5Hz.
User HF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 2k5Hz to 40kHz.

POWER AMPLIFIER
LF output power: > 700W rms continuous (Note 1)
Mid Output: > 150W rms continuous (Note 1)
HF output power: > 150W rms continuous (Note 1)
THD: < 0.03% at levels up to 1dB below clip, 20Hz - 20kHz. typ 0.005% @ 20W rms 1kHz.
Hum + Noise > -100dB referred to clip

Note 1: The continuous rating is for a period not exceeding 5 minutes with unrestricted airflow (100mm clearance) around the amplifier rear panel and ambient temperatures is <30 o C

INDICATION
Power on: Front mounted LED (flashing blue) indicates power applied and warm-up cycle.
Optimum Performance: Front mounted LED lights constant blue.
Overload: Front mounted LED flashes red 0.5dB below signal clip.

Thermal Protection: Front mounted LED turns red, signal is muted and amplifier switches to standby mode during thermal protection cooling cycle. Normal operation resumes when amplifier temperature drops by 20 o C.

POWER REQUIREMENTS
Voltage: Set by internal plugs: nominal 115V or 230V @ 50-60Hz AC.
230V setting: Min 160V (restricted output power): Max 263V
115V setting: Min 80V (restricted output power): Max 132V

CONSUMPTION
Quiescent 72W, typical use 110W.
Note 0dBu = 775mV into open circuit.
