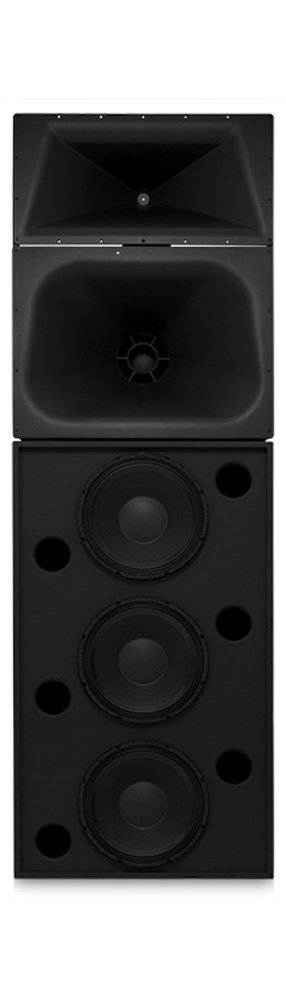

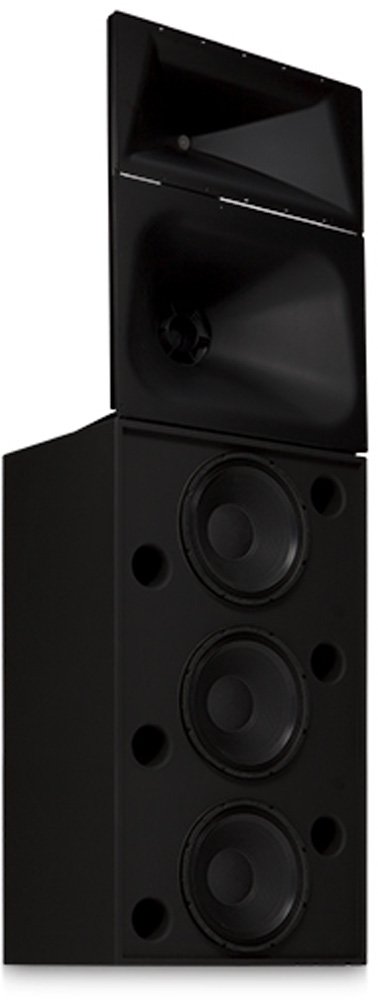

QSC SC-434
MPN #SC-434
4-way, high power, tri or quad-amp screen channel loudspeaker, 3 - 15", consists of LF-4315 and MHV-1090 components
SC Series
A built-in tilt to the high-frequency horns on 3- and 4-way systems provides more even convergence with the mid-range pattern, ensuring optimum seating-area coverage.
The Digital Cinema Series (DCS) includes 2-way, 3-way, and 4-way screen channel loudspeakers. It's a diverse collection, but every model embodies attention to detail in design and construction. The result is the smartest loudspeaker line in cinema, starting with a host of innovations built into our screen channel lines.
Features
Four-way selectable, tri or quad- amplified screen channel systemUnique HF/VHF diaphragm has less mass than traditional diaphragms resulting in exceptional dynamic range, extended high frequency response and lower distortionLF-4315 is constructed of MDF and is heavily bracedLow-distortion waveguides provide highly articulate dialogueShallow depth (20-inch) facilitates installation
Specifications
Nominal Coverage: 90 horizontal by +20 to -30 verticalFrequency Range (-6 dB): 33 Hz"20 kHzActive Crossover Frequencies: 250, 1700, and 6000 Hz, 24 dB per octave
