QSC SC-423C
UPC/EAN #684284060587
MPN #SC-423C

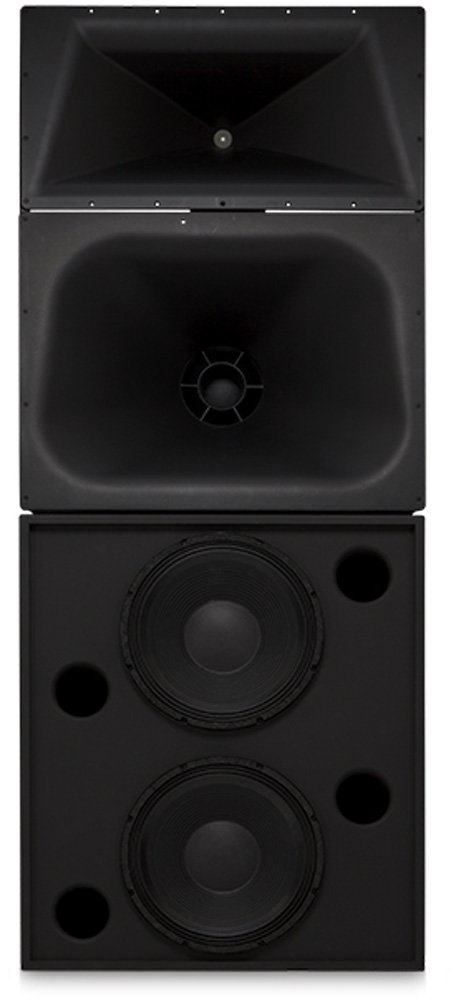

3-way, bi or tri-amp screen channel loudspeaker, 2 x 15", consists of LF-4215 and MH-1075C components
SC Series

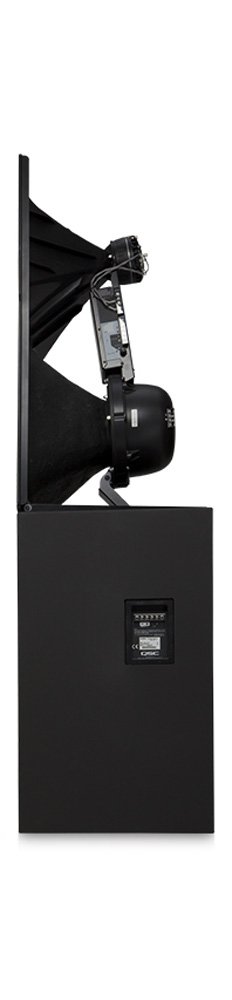

A built-in tilt to the high-frequency horns on 3- and 4-way systems provides more even convergence with the mid-range pattern, ensuring optimum seating-area coverage.
The Digital Cinema Series (DCS) includes 2-way, 3-way, and 4-way screen channel loudspeakers. It's a diverse collection, but every model embodies attention to detail in design and construction. The result is the smartest loudspeaker line in cinema, starting with a host of innovations built into our screen channel lines.
Features
Three-way selectable, bi- or tri- amplified screen channel systemMH-1075C provides 90 horizontal by+20 to -30 vertical coverageLF-4215 is constructed of MDF and is heavily bracedLow-distortion waveguides provide highly articulate dialogueShallow depth (20-inch) facilitates installation
Specifications
Nominal Coverage: 90 horizontal by +20 to -30 verticalFrequency Range (-6 dB): 32 Hz"16 kHzCrossover Frequency: 250 and 1700 Hz, 24 dB per octave
