QSC RMX4050a

UPC/EAN #684284062864 MPN #RMX4050A

$2699.00

Save 14.3%, MSRP $3150.00

Financing available

4/5 (1 review) Write a review

Free shipping in Canada. Conditions

The RMXa Series is an update on a proven line of amplifiers line of amplifiers combining legendary QSC reliability, audio performance and affordability. 1400W per channel into 4Ohm

Entertainers and touring users can continue to rely on the RMXa as one of the leading amplifier series in the world. For mid-power applications, the 2RU models offer 4 power ratings from 300 to 800 watts per channel. For premium loudspeaker systems with extremely high power capacity the 3RU models (RMX 4050a and RMX 5050a) are unchallenged.

The RMXa Series amplifiers from QSC offer true professional-quality performance at an affordable price.

Rackspace and Comprehensive Features
Three 2-rackspace models range in power from 430 to 1200 watts per channel at 2 ohms. Two 3-rackspace models provide 2000 to 2500 watts per channel at 2 ohms. All five models feature a compact chassis less than 16" deep.

RMXa amplifiers include a comprehensive set of features including XLR and 1/4" balanced inputs, Speakon and binding post outposts for convenient connectivity. User-defeatable clip limiters and selectable low-frequency filters optimize sonic performance.

Sustained Power, Extraordinary Performance and Reliability.
QSC's RMX 5050a power amplifier represents state-of-the-art in professional quality performance at an affordable price. Perfectly suited for a wide range of sound reinforcement applications including professional touring, performing musicians, and mobile entertainers, the RMX 5050a is optimized to deliver high levels of sustained power, extraordinary audio performance and road-proven reliability.

The RMX 4050a is a "heavy duty" model designed to work as hard into 2 ohm loads as most competing amplifiers will at 4 ohms.

Three-tier, Class H Design
Both the RMX 5050a and RMX 4050a feature a three-tier, Class H design that is extremely efficient at real world power levels. Less AC current is wasted and more available current goes into producing useful audio power. 120 volt versions of the RMX4050a accomplish all this with a standard 15 amp plug

Features

Compact size - up to 2500 watts in two rack spaces, or 5000 watts in three rack spaces

High-current toroidal transformers, for greater 2-ohm power and low noise

Independent user-defeatable clip limiters reduce distortion

Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom

The 4000-watt RMX4050a operates on a standard 15 amp plug (120V)

Both the RMX4050a and the RMX5050a feature a dual mono, high-current power supply for increased reliability and performance

The RMX4050a's particularly exceptional combination of cooling capacity and electrical efficiency provides robust thermal performance suitable for high continuous power in 2-ohm stereo or 4-ohm bridged applications.

Balanced 1/4" (6.3 mm) TRS, XLR, and barrier strip inputs

Touch-proof binding post and Neutrik Speakon outputs

Front mounted gain controls for easy access

Signal and clip LED indicators for monitoring performance

Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers

Specifications

8, FTC 20 Hz-20 kHz, 0.1% tdD: 800 (650**) W
8, EIA 1 kHz, 0.1% tdD: 850 W
4, FTC 20 Hz-20 kHz, 0.1% tdD: 1300 W
4, EIA 1 kHz, 0.1% tdD: 1400 W
2, FTC 20 Hz-20 kHz, 1% tdD: 1600 W
2, EIA 1 kHz, 1% tdD: 2000 W

Power, Bridge-Mono Mode
8, FTC 20 Hz-20 kHz, 0.1% tdD: 2600 W
8, EIA 1 kHz, 0.1% tdD: 2800 W
4, EIA 1 kHz, 1% tdD: 4000 W
Signal to Noise (20 Hz-20 kHz): -100 dB

Distortion (SMPTE-IM): < 0.02%
Input Sensitivity at 8: 1.42V (+5.3 dBu)
Voltage Gain: 64x (36 dB)
Output Circuitry: 3-tier Class Hz-2

Current Draw (120 V AC)
Typical, 1/8 power pink noise at 4*: 10.0 A
Severe, 1/3 power pink noise at 4*: 20.1 A
AC Mains Plug 100/120V: NEMA 5-15
AC Mains Plug 230V: CEE7/7

Weight
Net: 68 lb (30.8 kg
Shipping: 77 lb (34.9 kg)

Distortion (typical)
20 Hz-20 kHz, 10 dB below rated Power: < 0.02% tdD, 4 and 8
1 kHz and below, full rated power: < 0.02% tdD, 4 and 8

Frequency Response: 20 Hz-20 kHz: +0/-1 dB - kHz (LF filter bybassed, 8)

Damping Factor (1 kHz and below): > 250 at 8
Input Impedance: 10 k unbalanced; 20 k balanced
Input Stage Clipping: 6.4 V rms (+18 dBu)
Cooling: Continuously variable speed fan, back-to-front air flow

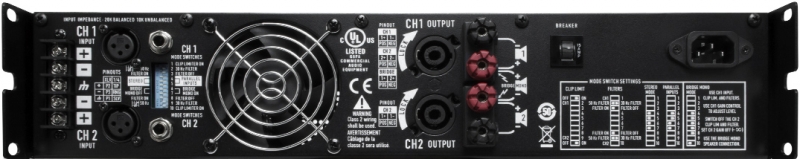

Connectors (each channel)
Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
Output: Touch-proof binding posts; Neutrik Speakon

Controls
Front: AC switch; Channel 1 & 2 gain knobs
Rear: 10-position DIP switch

LED Indicators
Power on: Green
Signal: Yellow (1 per channel)
Clip/Protect: Red (1 per channel)

Amplifier Protection: Full short circuit, open circuit, tdermal, ultrasonic, RF protection. Stable into reactive or mismatched loads

Load Protection: Turn-on/off muting; AC coupling (850, 1450); Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel

Dimensions: 5.25" (13.3 cm) tall; 3 rack spaces
Power Requirements: 100, 120, 230 V AC (factory configured), 50-60 Hz

Reviews

Write a review

4.0

Joel Tatelman

Toronto, ON

December 15, 2016

QSC RMX4050a: power and clarity

An excellent amp in all respects, though probably, at almost 70 lbs., heavier than most would want for touring. But a good linear power supply means big trannies and big weight! I purchased mine for powering stereo subwoofers in a large (18,000 cu. ft.) listening room, and that the RMX-4050a does effortlessly, whatever the output required. Read more
