QSC KS212C

MPN #KS212C

$2799.00 (Special)

Save $330.00, Regular $3129.00

Financing available

Be the first to write a review

Ends 30/06!

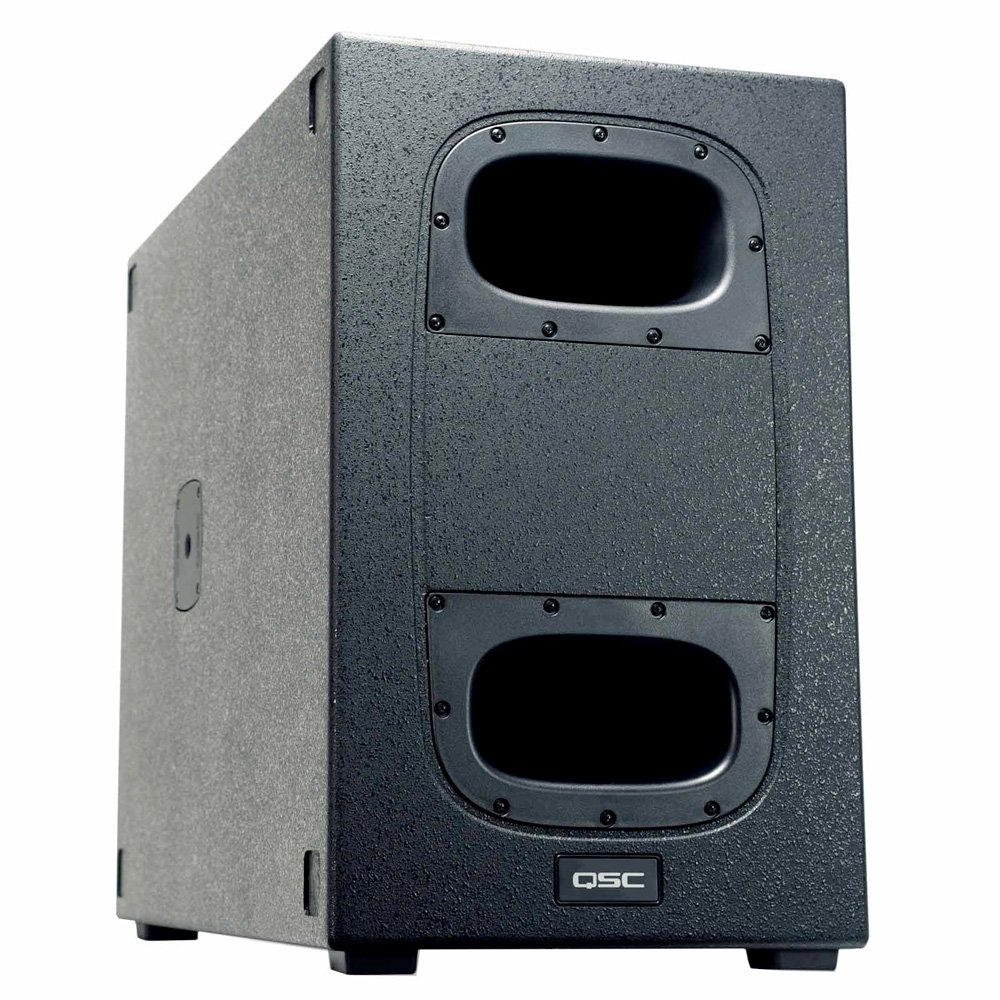

Powered cardioid subwoofer with dual 12" long excursion drivers

The KS212C subwoofer represents the world's first-in-class single-box active cardioid subwoofer solution for highly portable entertainment and installation applications.

A breakthrough in innovation and design, the 3,600 Watt KS212C subwoofer uniquely provides all the benefits of cardioid deployment in a single, compact enclosure. "Keeping bass in its place" for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues, the KS212C subwoofer is unparalleled in its ability to manage low frequencies on the stage, or any application where undesirable low frequency energy needs to be minimized.

Features

3600 Watt Class D power module

Dual 12-inch long excursion drivers; Dual 6th order band-pass design

15 dB SPL attenuation front-to-rear

Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole

Four low-noise, heavy-duty casters

HxWxD = 24.5-inch x 15.5-inch x 33.5-inch (622 x 394 x 851 mm)

Net Weight: 40.1 kg (88.5 lbs)

Specifications

Configuration: Dual 6th-order bandpass cardioid subwoofer
LF Transducer: 2 - 305 mm (12 in), cone
Frequency Response (-6 dB): 44 Hz - 104 Hz
Frequency Range (-10 dB): 39 Hz - 118 Hz
Nominal Coverage Angle: 180? Cardioid (15dB rear rejection @ 70Hz)
Maximum Rated SPL: 132dB @1m, peak
Amplifier: Class D, 2 - 1800W (peak)
Cooling: Low-noise, variable speed fan

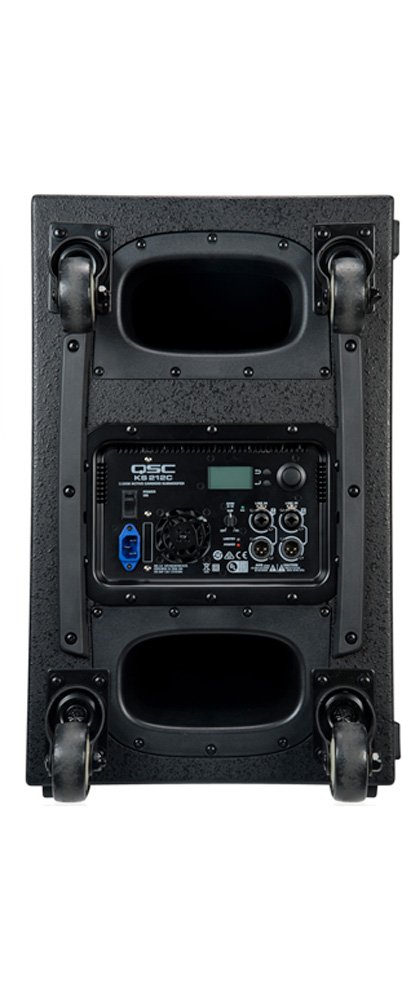

Controls: Power, Gain, Rotary encoder, 2 - selection buttons
Indicators: 2 - Power LED (front and rear), Input Signal LED, Limiter active LED
Connectors: 2 - locking XLR/F ¼????? combo, 2 - XLR/M (Loop-thru Output), 1 - locking IEC power connector
AC Power Input: Universal power supply 100 " 240 VAC, 50 " 60 Hz
AC Power Consumption: 1/8th power

Enclosure Details
Enclosure: 15mm birch plywood
Color: Black (RAL 9011)
Grille: Internal woofer cover
Speaker Dimensions (H-W-D): 622 - 394 - 851 mm, 24.5 - 15.5 - 33.5 in
Carton Dimensions (H-W-D) 970 - 500- 670 mm, 38.2 - 19.7 - 26.4 in
Net Weight: 40.1 kg / 88.5 lb
Shipping Weight: 50 kg / 110.3 lb
Regulatory: CE, WEEE, UL, CHina RoHS, RoHS II, FCC Class B
Optional Accessories: KS212C CVR Transport Cover, KS-LOC Lock-Out Cover, SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
