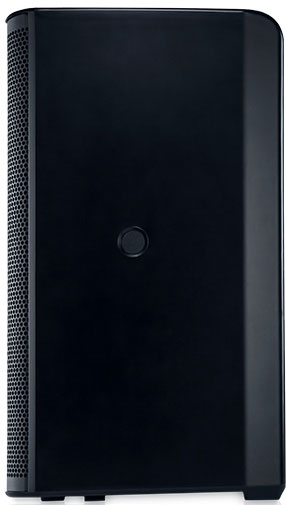

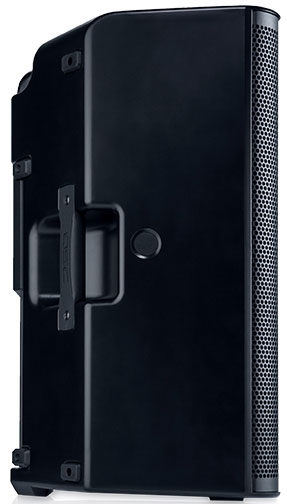

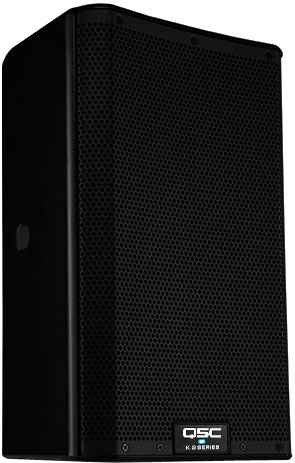

QSC K8.2
UPC/EAN #684284066305
MPN #K8.2
$1099.00
Save 6.9%, MSRP $1180.00
The QSC K8.2 Active, 2 way, 8" power loudspeaker representing the best-in-class loudspeaker for today's demanding audio professionals
The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.
Features
Best in class audio performance2000 Watt Class-D amplifier moduleIntrinsic Correction tuning and loudspeaker managementDMT (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening areRefined, professional appearance looks great in any applicationRugged ABS enclosure for long life and lasting durabilityDeployment in either main PA or floor monitor positionFactory Presets and savable/recallable Scenes for commonly-used applicationMulti-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contourDual pole cup mounts (standard and 7.5 degree down-tilt)M10 fittings for flown applicationsOptional security panel prevents unauthorized tampering of controlsComplete EASE and CAD information available online
Specifications
Configuration: Multi-purpose, 2-way powered loudspeaker
LF Transducer: 8" (203 mm), cone
HF Transducer: 1.4" (35.6 mm) titanium diaphragm compression driver
Frequency Response (-6 dB): 59 Hz - 20 kHz
Frequency Range (-10 dB): 55 Hz - 20 kHz
Nominal Coverage Angle: 105 Axisymetric
Maximum Rated SPL1: 128 dB @1 M, peak 122 dB @ 1 M, continuous
Amplifier: Class D Peak: 1800 W (LF), 225 W (HF)
Cooling: Low-noise, variable speed fan
Controls: Power, 3 x Level, Rotary encoder (push), 2 x selection buttons
Indicators: Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED

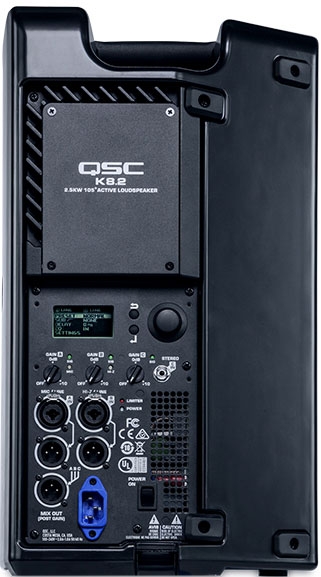

Connectors: 2 x locking XLR/F ΒΌ" combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector
AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption 1/8th Power2: 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby: .2A at any voltage
Enclosure Details
Enclosure: Impact Resistant ABS
Attachment Points: 2 x M10 threaded inserts plus Pull-Back
Color: Black (RAL 9011)
Grille: 18 Gauge powered coated steel, internal cloth lining
Dimensions (HxWxD): 17.7 x 11 x 10.6 in, 449 x 280 x 269 mm
Net Weight: 12.2 kg (27 lbs)
Shipping Weight: 14.4 kg (31.8 lbs)
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories: K8 Tote, K8 Outdoor Cover, M10 Kit-C, K.2-LOC Lock Out Cover, K8.2 Yoke
