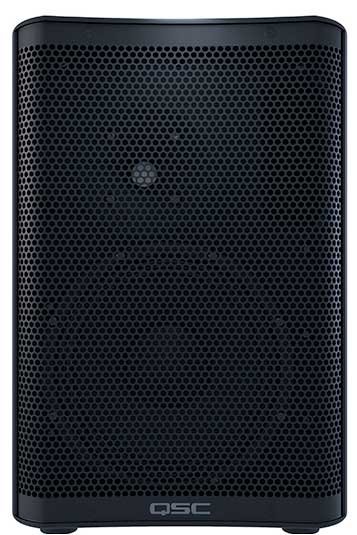

QSC CP12
UPC/EAN #684284071323
MPN #CP12
$899.00
Save 10.1%, MSRP $1000.00
The CP12 is a compact powered Loudspeaker, 12-Inch, 1000W combining high performance, superior quality and lasting reliability
High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
The 1000 Watt (peak) power module delivers ample burst and continuous power for the loudspeaker's matching transducers. Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion. The result is a highly accurate and musical sound that maintains full signal integrity, even when pushed to high SPL.
CP produces a big sound from a small package. Ultra-compact and remarkably light weight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.
CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), floor monitor or installed via optional quick-connect yoke mount.
CP provides one-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, Dance, Dance with External Subwoofer, Floor Monitor and Speech.
Features
Compact and powerful performance1000 Watt peak power Class-D amplifier moduleEasily selected contours for commonly-used applicationsAdvanced DSP with Intrinsic Correction? for superior sound quality and speaker protectionDirectivity Matched Transition? (DMT) for consistent frequency response across the entire coverage areaLight weight and highly portableProfessional appearance looks great in any applicationUse for main PA, stage monitor, or instrument amplifier35 mm pole socketOptional yoke, tote, and outdoor cover accessoriesComplete EASE and CAD information available online
Specifications
LF Transducer: 12 in (305 mm), cone
HF Transducer: 1.4 in (35.6 mm) compression driver
Frequency Response (-6 dB): 49 - 20 kHz
Frequency Range (-10 dB): 47 - 20 kHz
Nominal Coverage Angle: 75 Axisymetric
Maximum Rated SPL1: 126 dB
Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)
Controls:
Power 2 x Gain
Mic Boost Push Switch
6-way Contour Selection Switch
Indicators:
Power LED
2 x Input Signal LED
Input B MIC selected LED
Limiter active LED
Connectors:
2 x locking XLR/F ΒΌ" combo (Line Input and Mic/Line input)
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connector
AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M10 threaded insert
Color: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel
Dimensions (HxWxD):
20.3 x 13.8 x 12.7 in
516 x 350 x 323 mm
Net Weight: 30.3 lbs (13.7 kg)
Shipping Weight: 36.3 lbs (16.5 kg)
Regulatory: EMC, UL, CB
Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke
