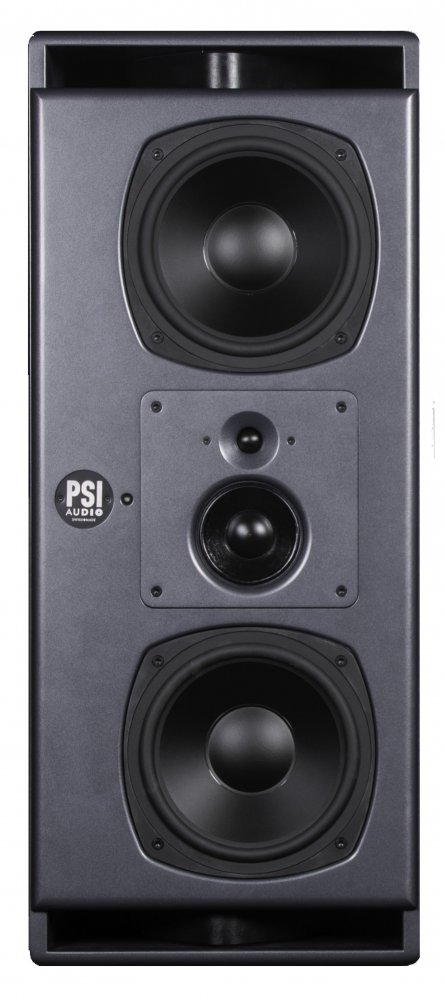

PSI Audio A226-MAIN - Left
Three-way monitor, 2x10" woofers, EXD mid, new aluminium tweeter, 20 Hz"23 kHz range, 112 dB SPL, rotatable baffle, Swiss analog precision - Left Speaker
The PSI Audio A226-MAIN is a statement piece in studio monitoring, crafted for the most discerning audio professionals. As the largest and most advanced speaker ever developed by PSI Audio, the A226-MAIN is engineered for critical listening environments such as mastering studios. It boasts a fully symmetrical design with dual 10-inch woofers flanking a rotatable mid-high baffle, delivering unparalleled fidelity across the entire frequency range. The all-analogue, tri-amplified design ensures zero latency and immaculate clarity, with the newly developed aluminium coil tweeter capturing every nuance of the high-end spectrum.
This monitor is built for power and precision. With over 700 watts of total output per unit and an impressive frequency response from 20 Hz to 23 kHz, the A226-MAIN delivers accurate sound reproduction at up to 126 dB SPL. PSI Audio integrates its hallmark technologies, such as Compensated Phase Response (CPR) and Adaptive Output Impedance (AOI), to enhance transient response and coherence. Swiss craftsmanship permeates every aspect, from the double MDF cabinet to the individual anechoic chamber calibration. Whether it's mixing, mastering, or critical audio review, the A226-MAIN offers an unflinching, honest window into your sound.
Features
Three-Way Studio Monitor: Designed for professional mastering environments, offering detailed sound reproduction across the full frequency range.Symmetrical Dual Woofer Setup: Two 10-inch woofers are symmetrically placed to deliver powerful and balanced low-frequency response.All-New Aluminium Coil Tweeter: Newly developed high-frequency driver delivers accurate and detailed highs.Renowned EXD Midrange Driver: Ensures exceptional clarity and precision in the critical mid frequencies.Rotatable Mid-High Baffle: Allows flexible orientation for optimal placement and sound dispersion.Custom Stand and Waveguide Design: Comes with a specially designed stand and features waveguides to maintain a wide sweet spot and controlled vertical dispersion.Proprietary Analog Technology: Features include Compensated Phase Response (CPR) and Adaptive Output Impedance (AOI) for precise, phase-aligned playback.High-Power Analog Amplification: Uses PSI Audio's Class G/H amplifiers for efficient, distortion-free performance at high sound pressure levels.Swiss Handcrafted Quality: Built and calibrated by specialists in Switzerland, with individual measurement graphs for each unit.
Specifications
General Specifications
Active analogue three-way mastering monitorSymmetrical dual 10" woofer configurationNew aluminium coil dome tweeterRenowned EXD midrange driverFrequency response: 20 Hz to 23 kHz (+/-6 dB)Maximum SPL: 112 dB at 1 m (AES 75 standard), 126 dB peakTotal amplifier power: over 700 W per speakerAmplifier configuration: 2 - 250 W (woofers), 150 W (mid), 65 W (tweeter)Designed primarily for high-end mastering studios
Driver and Acoustic Design
Dual 10" woofers driven by the same signalMidrange: EXD driver from PSI A25-MHigh-frequency: all-new aluminium coil tweeterDouble flow guide bass reflex systemSymmetrical transducer layoutRotatable mid-high baffleControlled vertical dispersion, wide horizontal sweet spot
Proprietary Technologies
Compensated Phase Response (CPR)Adaptive Output Impedance (AOI)Class G/H amplifiers for high efficiency and low distortionFully analogue signal path to avoid latency
Construction and Manufacturing
Fully reinforced double MDF enclosureBuilt and calibrated in-house in SwitzerlandSupplied with individual measurement graphSwiss precision component selection and calibration
Mounting and Orientation
Custom stand available for optimal positioningMid-high baffle can be rotated for flexible placement
