Prism Sound Titan
UPC/EAN #669014270948
MPN #Titan
$4595.00 (Open Box)
Save $915.00, New $5510.00
True Reference Audio Interface with MDIO Expansion
The Titan is a USB multi-track audio interface ideal for music and sound recording, multi-tracking, overdubbing, stem-based mastering, analogue summing and critical listening applications.
Signal path
Titan provides Prism Sound's renowned performance, sound quality and state-of-the-art clock technology in a dedicated unit compatible with both Windows (Vista, 7 and 8, 32 and 64 bit, ASIO as well as MAC OS X 10.4.11 and later (Intel). Once configured with a computer, Titan can also operate stand-alone using its S/PDIF or AES3 I/O.
Eight analogue input channels and up to 10 digital input channels are available as inputs for your audio workstation software through the host computer's audio driver. Similarly, eight analogue output channels, up to 10 digital output channels and stereo headphone outputs can play 20 different channels. For low-latency foldback or monitoring to headphones or main outputs, each output pair (1-2, 3-4 etc or the headphone output) can optionally be driven from the built-in DSP mixer with an individual local mix of any selection of inputs through the controller applet. All analogue inputs are electronically balanced with automatic unbalanced operation. Analogue outputs are electronically balanced with 'bootstrapping', i.e. level is maintained if one leg is grounded.
No-compromise, full Prism Sound audio quality
Titan makes no compromises on audio quality. It is the result of years of research and development into digital audio conversion and extensive dialogue with Prism Sound's customers.
Titan has the same no-compromise analogue front and back ends as Orpheus with the same fully-balanced-throughout architecture, the same isolation barriers protecting the analogue from digital and computer interference, but with a wider range of PC interface options.
Titan draws on Prism Sound's years of experience in developing digital audio products, including its range of audio test equipment, adopted by a wide variety of clients across the audio industry from pro-audio to consumer electronics. This experience means that Titan is well-behaved both as a computer peripheral and an audio processor.
Reliability is vitally important in professional recording. Prism Sound has always made extensive use of precise software calibration techniques in its converters - pots and tweaks are always unreliable, so there are none.
The design team has gone to great lengths to minimise noise and interference, in particular hum. All of the analogue circuits have galvanic isolation, while the unit's electronically balanced I/O allows it to handle common mode interference sources as well as enabling trouble-free connection to unbalanced equipment.
It is often said that THD+N figures do not always correlate well with the perception of sound quality and this is true - partly because the traditional measures of THD+N or SINAD expressed as RMS figures are rather a broad measure. With this in mind, we have taken great care to make sure that not only is the Titan noise and distortion spectrum beyond reproach, but the RMS distortion result measures up to the state of the art.
Standards compliant USB interface
Prism Sound has taken on board the increasing importance of native processing power for professional users and the fact that software products for standard PC and Mac platforms have been greatly enhanced in recent years. Titan uses a USB2 interface. This is a UAC2 (USB Audio Class 2) interface supported natively in Mac, iPad, Linux and Android, and in Windows via a driver.-
Titan is easy to connect to your computer and to your outboard gear. For both Mac and PC platforms, there is a controller application to configure the unit and control its built-in mixer and other functions. Aside from the monitor and headphone level controls, everything else is operated solely from the Titan controller application. The controller software opens on-screen as a separate panel alongside your existing editing software.
Flexible Inputs and Outputs
Our customers told us that many professional users wanted a highly integrated solution with instrument and microphone inputs, and line outputs that could be used for stereo or multi-channel monitoring and/or foldback to performers. Titan offers eight analogue recording channels, eight monitoring outputs, stereo digital input and output on a phono connector plus concurrent optical digital I/O ports that can interface to S/PDIF or ADAT data formats, giving Titan a maximum capability of 18 concurrent input and output channels plus stereo headphones.
Titan's eight analogue inputs support various capabilities. Titan has four really good mic amps with software-controlled gain in 1dB steps, individually-switchable phantom power - and very low noise and distortion. These inputs are auto-sensing, and support microphone and line input, with digitally-controlled mic gain in excess of 60dB. Two of these inputs also support direct injection (DI) instrument connections with quarter-inch jacks on the front panel. RIAA Equalization can be selected in the controller applet on channels 1 & 2 so that turntables can be connected for archiving or sampling applications. By selecting the input type (Mic or DI) , low- or high-impedance cartridges can be loaded with suitable termination impedances. All analogue inputs have individually-selectable Prism Sound "Overkillers" built in, just as on the higher-priced ADA-8XR, to catch those fast transients. The Overkiller threshold automatically follows the operating line-up level selection (+4dBu or -10dBV). Overkillers are ideal for percussive sounds, particularly drums, where headroom can be a problem.
The co-axial digital I/O port can be switched in the Titan controller applet between S/PDIF and AES3 formats. This control changes the operating voltage and the Channel Status format and is complemented by two in-line adaptor leads that provide external XLR connections for AES3 devices. Other connections include wordclock sync I/O.
Titan can also operate in a stand-alone mode using its ADAT or co-axial digital I/O connections. Once set up using the Titan controller applet, the unit can be disconnected from the host computer and used independently. Titan will retain its settings when powered down so even if it is switched off, Titan can be re-powered and stand-alone operation can continue with the automatically-stored settings.
Digital Mixer
Our customers also identified a need for a unit that could provide low latency foldback to performers, particularly when tracking and overdubbing. In answer to this need, Titan has a powerful built-in digital mixer that can be configured from the host computer to provide foldback feeds to performers, each with their own stereo mix of workstation playback and any of the inputs.
The question of latency in computer interfaces, especially USB and FireWire boxes, is an important one. Obviously there are situations where the round-trip latency needs to be really short, like in overdubbing. The problem is that even if the latency on the interface and in the driver is as short as it could ever be, a native DAW is busy with plug-ins and other software and buffer times are probably set long. The only answer is to provide local foldback mixing in the interface. This is not new, and other products feature it, but most local mixers in competitive products are just too basic. Titan provides 'console quality' local mixing - every output has its own independent mixer, with channel strips for all inputs and workstation feeds, complete with fader, pan/balance pot, solo and mute buttons, and full metering. Strips can be stereo or mono, and the mixes are dithered with filtered coefficients, just as in a top-end digital mixer.
There is a very small residual delay through the A/D and D/A conversion process in the foldback path, mostly from filters used for decimation and interpolation. However, with the low-latency Prism Sound DSP mixer, the worst-case delay through the A/D and D/A path is only 0.5ms and is significantly less at higher sampling rates. This is generally reckoned to be small enough not to be problematic.
Although the unit's outputs will mainly be used for monitoring or foldback, the fact that they are of such high quality makes them suitable for a range of other applications such as insertion points, analogue summing or stem-based mastering.
Flexible Monitoring
Professional users demand more sophisticated monitoring capabilities and are getting used to surround sound with HDTV and DVD, so it is becoming important to support surround monitoring setups.
As well as wanting great analogue recording channels, the DAW user also needs top-quality monitoring. The eight analogue outputs on Titan allow monitor setups from multi-stereo up to 7.1 surround. Titan has a real volume knob which can be assigned to any or all of the analogue or digital outputs for use as a control room monitor control. There are two headphone amps, suitable for all types of headphones, each with its own independent volume control. As well as having its own workstation feed and mixer, the headphones can also be quickly switched across the other output pairs, which is handy for setting up.
Sample Rate Conversion and Noise Shaping
The digital output is equipped with the four Prism Sound SNS noise-shaping curves and includes Prism Sound's renowned synchronous sample-rate conversion, allowing outputs to various external devices at other sampling rates. The sample-rate converter can be used at the outputs as well as the inputs, so as well as dealing with unsynchronised or wrong-rate digital inputs, Titan can also generate, say, a live 44.1kHz output from a 96kHz session. Since Titan also includes the full suite of the famous Prism Sound 'SNS' noise shapers, you can also reduce to 16-bits at mastering-house quality.
Unsurpassed Jitter Rejection
In the 1990s Prism Sound pioneered testing of sampling and interface jitter and as a result our digital audio products deliver unsurpassed jitter rejection. Prism Sound digital audio products lock up fast and re-generate ultra-stable clock outputs. Another aspect of the traditional Prism Sound converter that is retained was the clocking - it's just as important as analogue-path considerations sound-wise. So whether it's providing a high-quality master clock for the rest of the room, or dealing with a jittery clock from outside, Titan is as rock-steady as its forbears.
Features
UNSURPASSED CLOCKING AND JITTER REJECTION
Prism Sounds history in developing test and measurement equipment for the audio industry has allowed our engineers to get a much deeper understanding of digital clocking and its associated issues.
DIGITAL MIXER WITH FLEXIBLE MONITORING
Titan has a powerful built-in digital mixer that can be configured to provide a multitude of ultra low latency feeds, Including foldback to performers, stereo and surround outputs.
FLEXIBLE I/O
Titan has a maximum capability of 18 concurrent input and output channels, offering 8 analogue recording channels, 8 monitoring outputs, stereo digital input and output on a phono connector plus concurrent optical digital I/O ports.
FUTURE PROOF CONNECTIVITY
With a standard USB connection Titan can connect to the widest range of computers today and for the foreseeable future. Add to this the option of ProTools HDX and Dante modules for the most flexible and professional solution.
MDIO
MULTI-CHANNEL I/O EXPANSION
In an ever changing world of I/O connectivity, the MDIO expansion slot allows your Prism Sound interface to remain relevant, increasing its lifespan and bring a much better return on your investment.
Both options allow you to stack multiple Titan or Atlas providing sample accurate phase locked audio between multiple units.
The DANTE module allows multiple Titan or Atlas units to be connected directly to a DANTE equipped
The Pro Tools MDIO-HDX module allows multiple Titan or Atlas units to be connected directly to an AVID Pro Tools HDX or HD native system via AVID's "Digilink" connection.
SOFTWARE
Titan's front panel gives continuous visual indication of the unit's main settings and levels, but in-depth control is managed from the Titan Controller applet. This runs on the DAW computer, and can be popped up whenever adjustments are needed.
Specifications

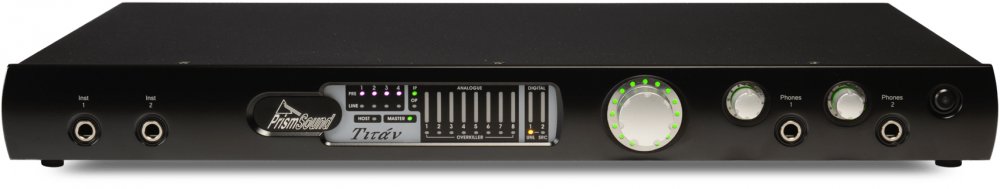

FRONT PANEL
Instrument Inputs : 2 x 6.3mm mono jack sockets, auto-select to analogue inputs 1 & 2 when pluggedHeadphone Outputs : 2 x 6.3mm stereo TRS Jacks, each with illuminated volume controlMaster volume : Assignable encoder / push switch with halo indicationStandby button : with standby indicator (also flashes when unit is in 'identify' mode)
INDICATION:
Level Meters : 10 x multi-segment bargraphs with overload indication, 8 for analogue, 2 for digital, assignable to inputs or outputsInput selection : Indicate mode of analogue inputs 1-4 as Mic / line / inst & plus phantom power indicator for mic modeOverkiller : For every analogue input, lit when Overkiller limiters are actingDigital Input : indicators for digital input unlocked and SRC (sample-rate converter) selectedDigital Output : indicator for SRC (sample-rate converter) selectedSync : Master indicator, lit when interface is providing system sync

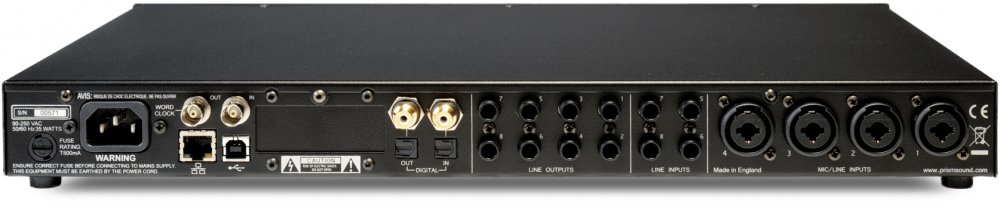

REAR PANEL
Mic / Line inputs 1-4 : 4 x combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)Line inputs 5-8 : 4 x 6.3mm TRS jack sockets (balanced or unbalanced)Line outputs 1-8 : 8 x 6.3mm TRS jack sockets (balanced or unbalanced)Digital inputs : 1 x RCA1 x TOSLINK for S/PDIF or ADAT Optical input; (RCA can operate as AES3 input using XLR-RCA adapter supplied)Digital output : 1 x RCA1 x TOSLINK for S/PDIF or ADAT Optical output; (RCA can operate as AES3 output using XLR-RCA adapter supplied)Wordclock : 2 x BNC sockets, output and input (75R)USB port : 1 x USB 2 portEthernet port : For future expansion / AVBMains power : 3-pin 6A IEC inletMDIO card already installed
SOFTWARE SUPPORT
Mac OS Support : OS X 10.4 or later, Intel platformWindows OS Support : Windows Vista, 7 or 8, 32 or 64 bitMac audio driver : Core Audio deviceWindows audio driver : ASIO deviceControl Panel applet : Graphical user interface for control of single or multiple Titan units under Mac OS X or Windows.
SUPPLIED ACCESSORIES:
Printed manual x 1Software CD x 1IEC mains lead x 119 Rackmount ears x 2 (pair)Allen key (for rack ears) x 1USB lead x 1USB B to USB C convertor x 1XLR-F to RCA-M adaptor (S/PDIF/AES3) x 1XLR-M to RCA-M adaptor (S/PDIF/AES3) x 1
