The Presonus StudioLive AR12c: 12-channel USB-C Compatible Audio Interface / Analog Mixer / Stereo SD Recorder
Audio recording made easy.
Don't let the classic analog mixer design fool you-the StudioLive® AR12c was built to record. With a pristine analog front-end, eight high-gain XMAX mic preamps, and a 14x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface, its hybrid design makes it simple to record studio productions and mix live shows from a single, intuitive console. Add in a musical 3-band analog EQ, mic/line boost for low-level vintage synths and broadcast microphones, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
A full-featured audio interface.
The StudioLive AR12c audio interface operates at up to 96 kHz for high-definition mixing and recording. Record each of the 12 inputs, plus the main mix for even more flexible recording options. Play back up to four streams for monitoring previously recorded tracks-plus a click. Eight lauded XMAX mic preamps provide all the gain you need to capture even the most subtle details without adding any extra noise. The analog mixer front-end makes connecting your gear to your computer intuitive, and creating monitor mixes is quick and easy. With a USB-C compatible connection, your StudioLive AR12c is ready to use as an audio interface for nearly any computer.
The channel that does it all... even Bluetooth connectivity!
The unique Super Channel can handle four stereo sources at once, making it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the -inch stereo input to plug-in your smartphone, or forget the cable and connect it via Bluetooth wireless technology. You can also toggle between a stereo playback stream from your computer and playback from the onboard SD recorder, making rehearsal a snap.
A complete recording solution for studio and stage.
The StudioLive AR12c audio interface and analog mixer is tightly integrated with state-of-the-art recording software to help you realize your creative vision. Record multitrack live performances with one click thanks to PreSonus' Capture live-recording software. Create complete studio productions with our award-winning Studio One® Artist DAW. With two professional recording applications included with your StudioLive AR12c, you're ready to record right out of the box.
Stereo recording without a computer.
Imagine you're rehearsing with your band and want to record your session to analyze later. Or perhaps you're in the middle of a songwriting session and want to capture your ideas as quickly as they come to you. Either way, the StudioLive AR12c's stereo SD recorder has you covered. Insert any SD/SDHC card and you're ready to record your main mix to listen to later, so you'll never forget a great song idea or an amazing guitar solo. Doing mobile interviews for your podcast Leave the computer at home and record straight to SD.
Effects without latency.
Monitoring with reverb and delay helps to create better recordings. Any vocalist or guitarist will tell you that a little reverb makes them feel more comfortable while performing. The StudioLive AR12c mixer's onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones Record the Main Mix and capture the effects mix, too-with or without the dry channels-to blend with your multitrack recording. Experiment in post-production to your heart's content.
All the connections you need with a familiar look.

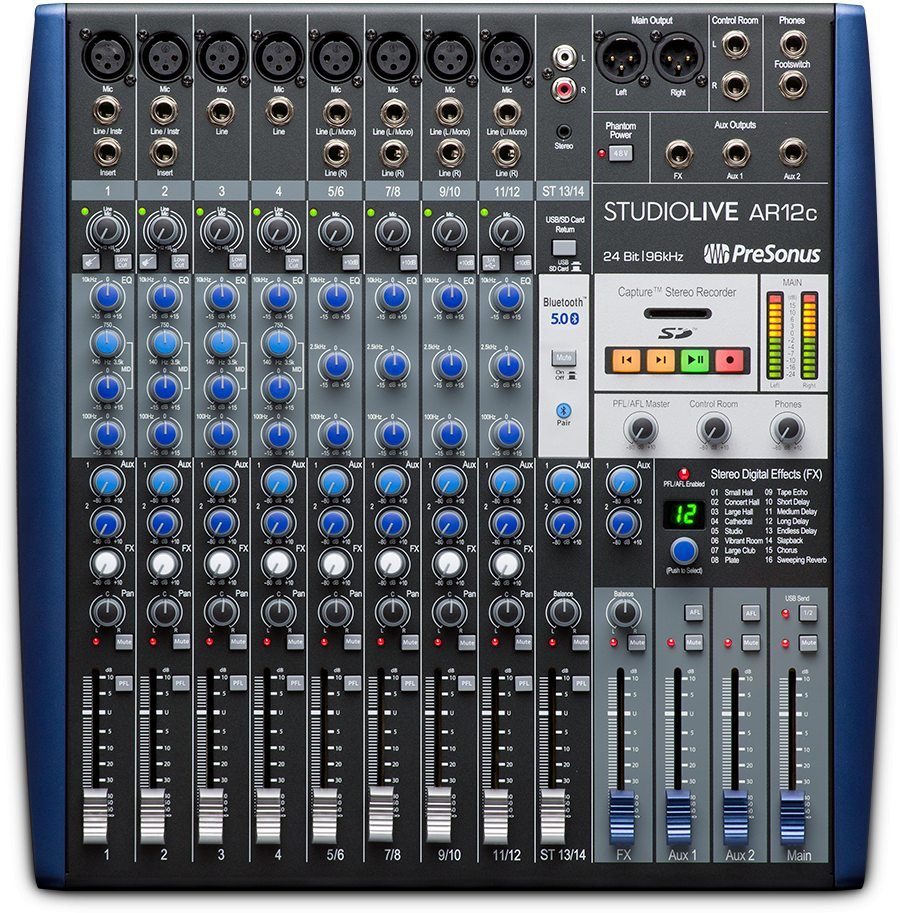

Packed with all the connections and controls needed to mix and record in the studio and on the stage, the StudioLive AR12c is the ultimate recording solution. The four mono channels and four stereo channels include a musical three-band EQ, plus one of PreSonus' famed XMAX mic preamps. Two dedicated monitor mixes with balanced outputs provide your musicians the custom mix they need. The USB-C compatible connector ensures your StudioLive AR12c audio interface will be the center of your studio for years to come. And with high-resolution 96 kHz recording, a full complement of connections, and an instantly familiar workflow, the StudioLive AR12c is the perfect recording and mixing solution for the modern musician and content creator.
Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.
14x4 24-bit/96 kHz, USB 2.0 (over USB-C connection) audio recording interfaceRecord every channel plus the main mix2x2 SD recorder to capture the main mixSupports SD and SDHD formats up to 32 GB
14-channel analog mixer8 balanced microphone inputs with XMAX mic preamps2 insert points2 instrument/line inputs12 balanced line level inputs:4 mono4 stereo pairsStereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback4 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS outputL/R Control Room outputs with level controlHeadphone output with level control
Highpass filter on every channel3-band quasi-parametric EQ with sweepable mid-band on each mono channel3-band semi-parametric EQ on each stereo channelStereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jackMic/line boost on stereo channels for low-level input sources and consumer devices
Capture live multitrack recording softwareStudio One ® Artist recording and production software (DAW)Studio Magic plug-in suite

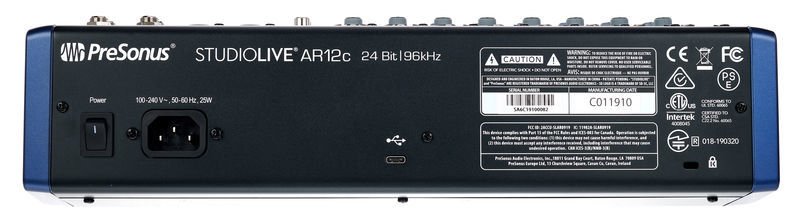

Internal power supplyStandard IEC power connector
Sturdy metal construction60 mm fadersOptional rackmount kit
Computer system requirements:
Below are the minimum computer-system requirements for use with Capture and Studio One®.
macOS® 10.11 or higher (64-bit only)
Intel® Core 2 Duo processor (Intel Core i3 or faster recommended)
Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)
Mac and Windows Systems
4 GB RAM (8 GB or more recommended)
30 GB hard-drive space (Studio One)
Internal or external 7200 RPM storage drive highly recommended
Monitor with 1366x768 resolution (high-dpi monitor recommended)
Manufacturer Part Number : StudioLive AR12c
