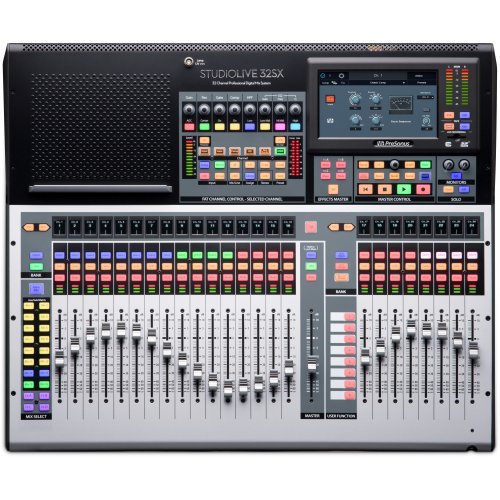

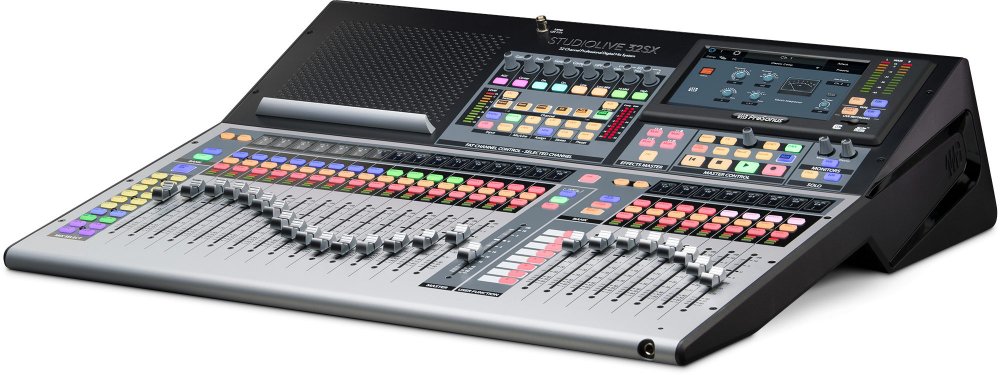

Presonus StudioLive 32SX
UPC/EAN #673454008146
MPN #STUDIOLIVE-32SX
$3129.99 (Special)
Save $1030.00, Regular $4159.99
The Presonus StudioLive 32S is a 32-channel digital mixer and USB audio interface
The small-format mixer with one-to-one control.
The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large format features into a small format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors-including 4 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording, 128 channels of AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32S delivers a fast and intuitive, surface-driven workflow for total control. Spend less time menu-diving and more time mixing-hands-on.
Superior sound.
We built our reputation designing great-sounding analog circuits for critical studio recording environments, and we put all of that experience into designing the StudioLive 32SX digital mixer. In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity. This allows the StudioLive 32SX mic preamps to be remote-controlled with UC Surface software or Studio One, and when you load a StudioLive 32SX mixer scene, the mic preamp trim values can also be recalled along with the other settings.
Record music with or without a computer.
PreSonus Capture recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32SX digital mixer or on your Mac or Windows computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up virtual soundchecks. Best of all, Capture sessions open natively in Studio One with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more. No other multitrack software makes recording as fast, simple and hassle-free so you can focus on mixing the show.
The best music recording software... included.
Studio One revolutionized music recording, making common mixing and production tasks as easy as drag-and-drop. Tight integration with StudioLive 32SX digital mixers allows you to control preamp levels and more right from the Studio One software console. Press the DAW button on your StudioLive 32SX, and your Studio One controls are right under your fingertips on your digital mixer. Studio One control can be toggled on and off, allowing you to quickly switch between your live mix and your production mix with the press of a button. Studio One Artist is included with the StudioLive 32SX, so you can start recording right out of the box.
Remote control your digital mixer from anywhere-on any device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS, Windows, iPad and Android?. Control your monitor mixes with QMix-UC for iPhone, iPod touch, and Android devices. Whether you're adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32SX digital mixer, remotely controlling your mix from anywhere just got easier.
Flexible mixing for studio and stage.
The StudioLive 32SX was designed to fit well in any application. Its 16 FlexMixes can be individually configured to function as an aux bus, a subgroup, or a matrix mix. Four designated effects buses provide a total of 24 mix buses plus an independent solo bus and the main mix. We also provided 24 DCAs so you can more easily and flexibly control groups of channels. Inputs and buses can be freely routed internally, out to your AVB network, and over the USB bus, allowing you to customize your StudioLive 32SX for your unique mixing style.
The best USB audio interface for mixing.
With 128 (64x64) channels of recording over USB, you can record every input channel and bus on your StudioLive 32SX for the ultimate recording rig. Each channel can independently access its analog input or its dedicated digital return from your computer. Ten pre-installed vintage EQ and classic compressor Fat Channel plug-in models can be used onboard your mixer as well as within Studio One. And you also get Fat Channel Collection Vol. 1... which includes 15 additional vintage-modeled EQs and Compressors-a $499 (USD) value if purchased separately. Fat Channel plug-ins can be inserted on every input channel and output bus, giving you extensive, studio-style processing while mixing and recording.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. Connect to StudioLive Series III rack mixers and add a dedicated monitor mixer. Route audio to EarMix 16M personal monitor mixers for customized mixes on stage. With powerful plug-in processing, advanced recording features, and a full complement of analog I/O in a compact chassis, the StudioLive 32SX is an ideal centerpiece for sound systems of any size.
Features
Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class40 input-channel digital mixer with 25 touch-sensitive motorized faders- 32 local digitally controlled XMAX mic/line inputs
- 2 balanced stereo aux inputs
- 1 stereo tape input (RCA, USB, AVB or SD)
- 4 FLEX FX returns
- 1 Talkback
26 mix buses- 16 FlexMixes (Aux, Subgroup, Matrix)
- 4 dedicated FLEX FX buses
- 4 dedicated subgroups
- Stereo Main bus
286 simultaneous processors- HPF
- Gate / Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band Graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output busFLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses24 DCAs to control groups of channels128-channel (64x64) recording over USBOnboard multi-channel SD recorder (34x34) with true Virtual Soundcheck modeAVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and moreUser Profiles for managing multiple operators with custom permissionsPer channel digital patching from any analog, AVB, USB, or SD Card sourceDAW ControlAdvanced Studio One control integration- MCU emulation mode optimized for Logic
- HUI emulation mode optimized for ProTools
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)Put your musicians' monitor mix under their fingers with QMix-UC (included) for iOS or AndroidCapture 3.0 multitrack software included- Automated Virtual Soundcheck
- Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)- XMAX mic preamp control from Studio One
- Control Fat Channel parameters from Studio One mixing console
Specifications
Microphone Preamplifier
Input Type: XLR Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 1 k
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (±1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (±2 VDC): 48 VDC, switchable per channel
Line Inputs
Type: ¼" TRS Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 10 k
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Maximum Input Level: +18 dBu
Tape Inputs
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, ±0.5 dBu
XLR Outputs
Type: XLR Male, balanced
Maximum Output Level: +24 dBu, ±0.5 dBu
Output Impedance: 100
Line Outputs
Type: ¼" TRS Female, balanced
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100
Tape Outputs
Type: RCA Female, unbalanced (stereo pair)
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100
Headphone Output
Type: ¼" TRS Female, active stereo
Maximum Output: 100 mW/ch. @ 60 load
Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk
Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Digital Audio and Control
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
AES/EBU Output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, oating point
Sampling Rate: 48 kHz, 44.1 kHz
A/D/A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Clock
Jitter: <20 ps RMS (20 Hz - 20 kHz)
Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
Power / Environmental
Connector: IEC
Input-Voltage Range: 90 to 230 VAC (±10%)
Power Requirements (continuous): 85W
Recommended Ambient Operating Temperature: 0 to 40 Celsius / 32 to 104 Fahrenheit
Physical
Height: 6.51" (165.36 mm)
Width: 25.98" (659.81 mm)
Depth: 22.97" (583.84 mm)
Weight: 30 lbs. (13.6 kg)
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One.
Mac
macOS 10.11 or higher (64-bit only)
Intel Core? 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Windows
Windows 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366x768 resolution
iOS
iOS 10 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android
Android? 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)
