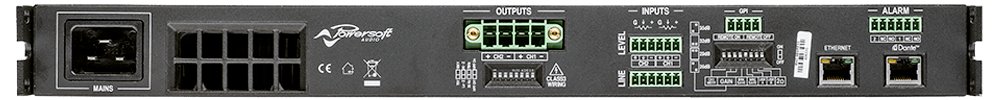

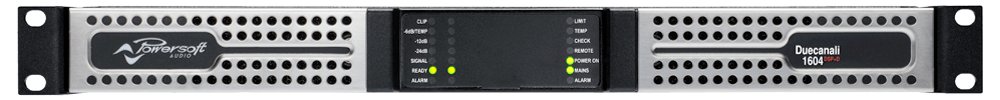

Powersoft DUECANALI 1604 DSP+D
MPN #PWS-D 1604 DSP+D
$3025.00
Save 12.9%, MSRP $3475.00
1600W/2-channel flexible amplifier with DSP and Dante
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft's legendary efficiency saves valuable energy, keeping both operational cost and 'carbon footprint' at a minimum.
The Duecanali 1604 DSP+D is designed to work with Lo-Z (from 2 ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.
A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.
MyPowersoft services are available for this product
Features
Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor CorrectionFixed frequency switchmode output stage for high grade sound accuracyCompact size - all models only 1 RU for reduced rack cost and spaceDirect drive either low impedance loads or 70V / 100V Hi-Z distributed linesSwitchable 35Hz / 70Hz high pass filter per channelRemote Control
Specifications
Output power per Channel : 1000 W @ 2 - 800 W @ 4 - 800 W @ 8
Bridge mode : 2000 W @ 4 - 1600 W @ 8
Max unclipped output voltage @ 8 : 115 Vpeak
Current : 45 Apeak
Power supply : Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement : 100-240 V ±10%, 50-60 Hz
Operating voltage : 90 V - 264 V
Power consumption/Current Draw idle : 115 V: 23 W - 0.34 A - 230 V: 23.3 W - 0.21 A
1/8 of max output power @ 4 : 115 V: 267 W - 2.5 A - 230 V: 274 W - 1.5 A
Operating temperature range : 0 - 45 C - 32 - 113 F
Thermal dissipation idle : 115 V: 78 BTU/h - 230 V: 79 BTU/h
1/8 of max output power @ 4 : 115 V: 229 BTU/h - 230 V: 251 BTU/h
