MPN #PMC8 SUB

$3711.00

Financing available
Free shipping in Canada. Conditions

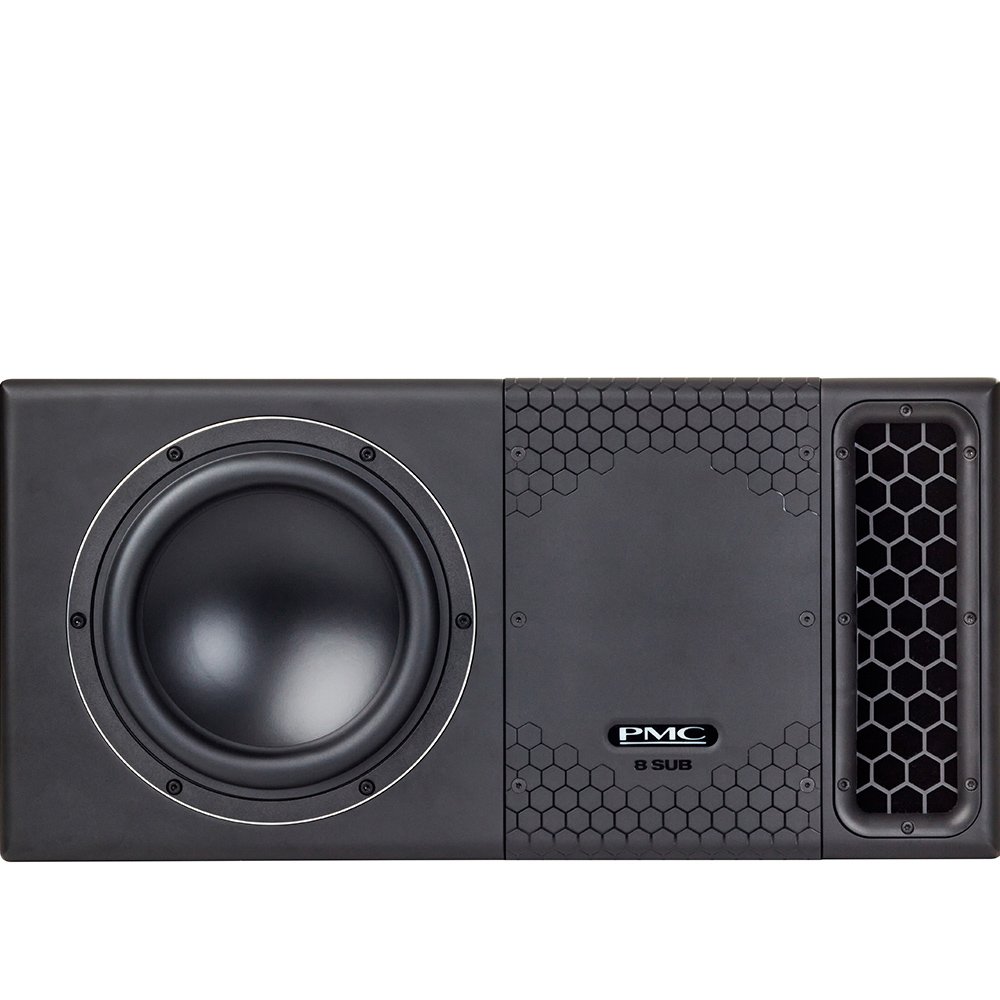

Active sub with 1 x 8 inch bass unit for use as dedicated sub or to complete a PMC6 XBD system



The PMC8 SUB can be used as a compact stand-alone subwoofer within conventional multichannel systems, or as an XBD cabinet, creating a full-range PMC6 XBD midfield monitor. When used in this way, the dedicated ?XBD? DSP mode marries the speakers and sub unit together, creating a coherent full-range system. Our subs are also perfectly suited to use in multi-channel and immersive systems, as our ATL? bass-loading technology provides a gentler low-order LF roll-off than conventional ported cabinets, allowing a smoother, seamless integration between the height and surround channels and the sub.

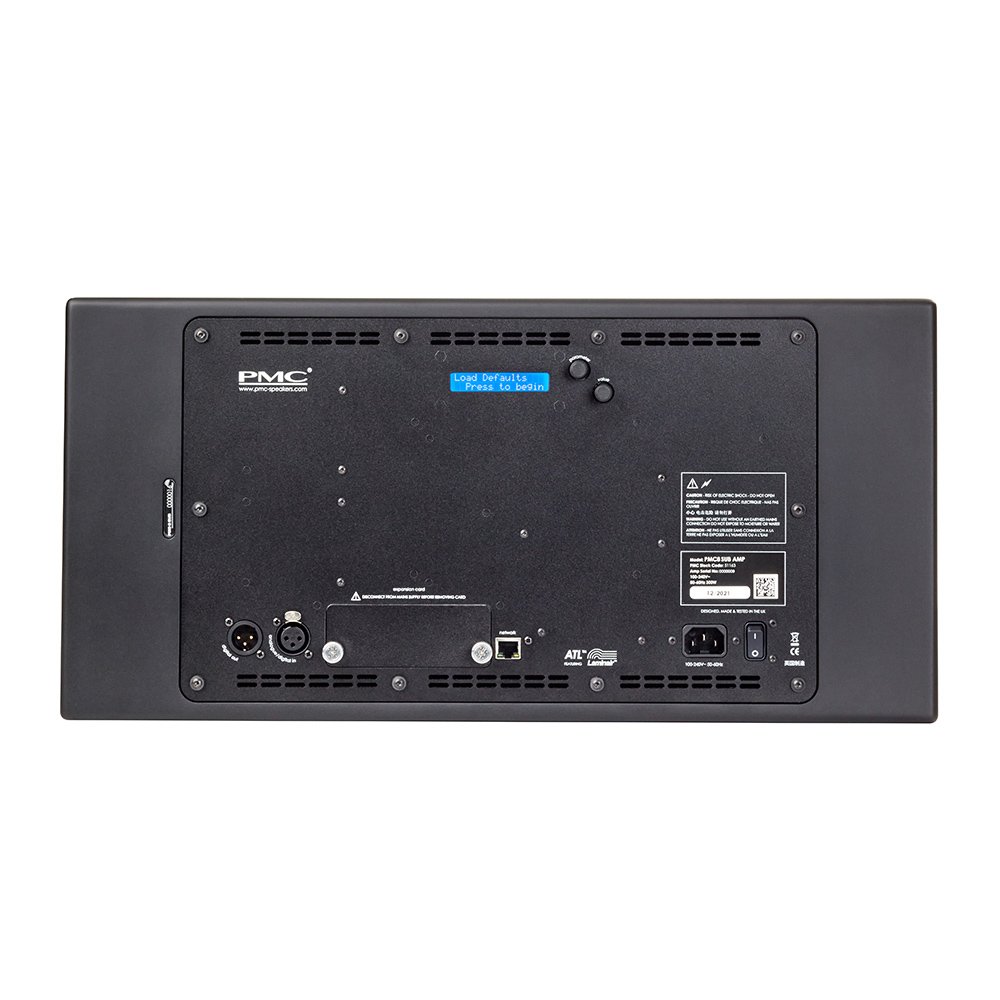

Featuring one custom eight-inch long-throw bass-driver, the PMC8 SUB is powered by a single 300W Class-D amplifier and controlled by the same powerful DSP engine as our other active models. DSP facilities include sophisticated room boundary equalisation options, parametric EQ, time delay, phase inversion, and the unique XBD mode, all configured via the loudspeaker?s rear panel or the browser-based SoundAlign? software.
  • Active subwoofer with an 8-inch bass driver and ATL? bass loading
  • Frequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
  • Max. cont. SPL: 109dB @1m (quarter space value calculated as +3dB from half space measurement.
  • Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifier: 300W
  • Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital ?through? output (AES3 24-bit 96kHz)
  • SoundAlign? network control interface for single or group EQ & settings
  • Sophisticated DSP driver protection, EQ, and delay/phase options
  • Dedicated XBD configuration mode
