MPN #PMC8-2

$17274.00

Financing available
Free shipping in Canada. Conditions

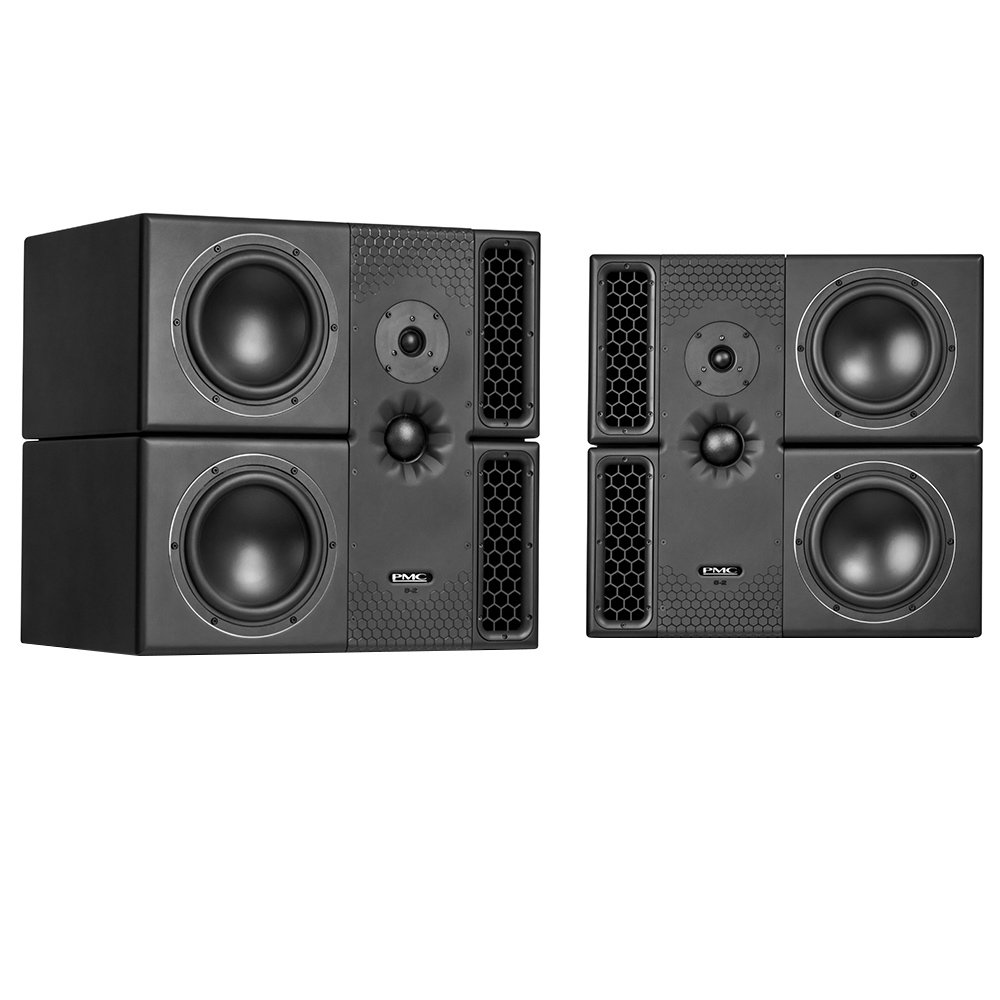

Active 3 way monitor with 2 x 8 inch bass units and55mm Soft dome mid-range



As with any PMC loudspeaker, thanks to its super-consistent dispersion and tonal balance, the PMC8-2 may be simply and seamlessly combined with smaller PMC speakers to create larger multi-channel or immersive systems.

The twin bass drivers are partnered with the same PMC55 mid-range tweeter, DSP system and four channels of 400W Class-D amplification used in the PMC6-2. Again, the speaker is configurable directly via the rear panel or using the browser-based SoundAlign? software from a computer or tablet.

Together with the precisely tuned ATL cabinet and hexagonal Laminair vents, the PMC8-2 delivers phenomenal performance that approaches that of our Main reference monitors, with smooth and consistent bass response down to 25Hz, a revealing mid-range and wide, stable sound-staging. As with the rest of the range, the PMC8-2?s superb definition, fidelity, dynamics and bass accuracy allow mix decisions to be made quickly with complete confidence, and with no listening fatigue even after long sessions.

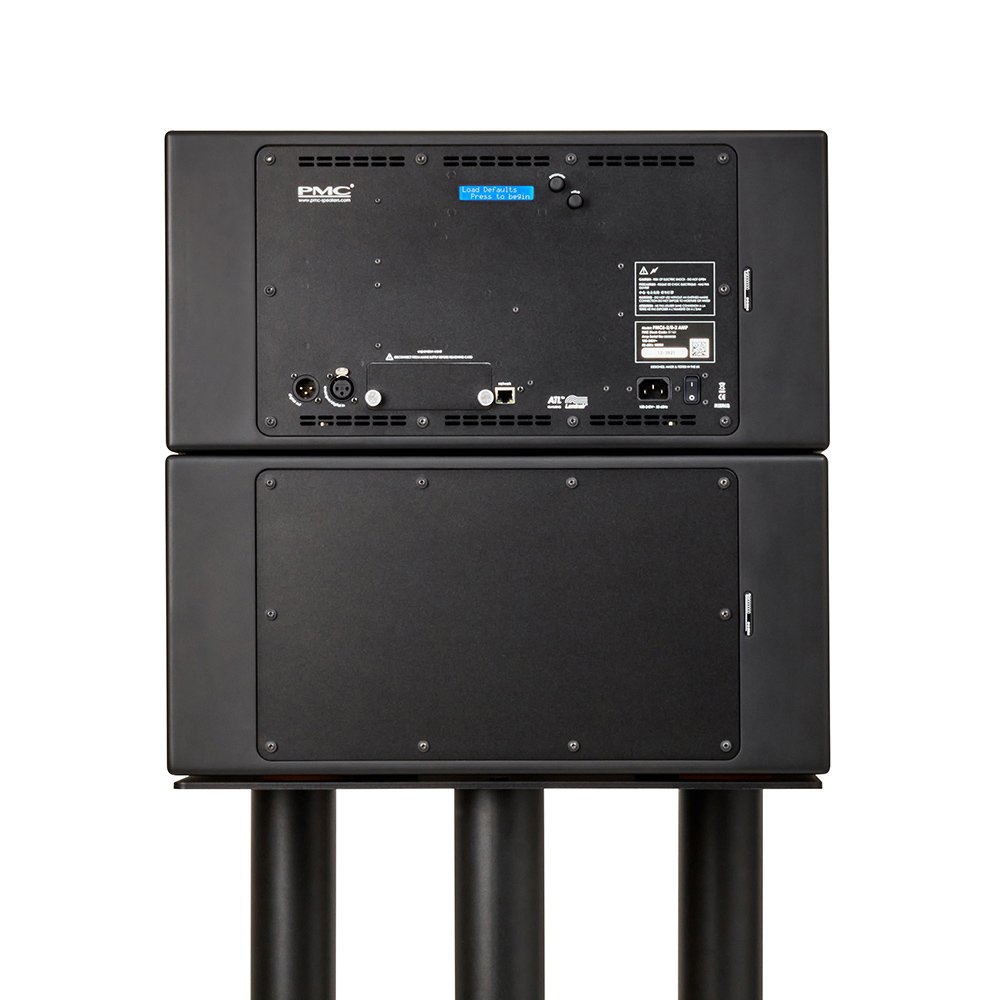

PMC8-2s can be upgraded through the addition of a PMC8-2 SUB to create an XBD system, enhancing the system?s bass headroom by 6dB. Dedicated short and taller floor-stands are available for the PMC8-2 and PMC8-2 XBD systems which position them on the ideal listening axis.
  • Active 3-way nearfield reference monitor with ATL? bass loading
  • Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)
  • Max. cont. SPL: 113dB @1m (half space value calculated as +3dB from full space measurement.
  • Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
  • Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital ?through? output (AES3 24-bit 96kHz
  • SoundAlign? network control interface for single or group EQ & settings
  • Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
  • PMC8-2 + PMC8-2 SUB creates PMC8-2 XBD, with up to 6dB of additional headroom
  • Optional dedicated floor stands for PMC8-2 (40?) and PMC8-2 XBD (19?)
  • Type:
    Active 3-way nearfield reference monitor with ATL bass loading

    Drive Unit Complement:
    LF 2 x PMC 200mm (8?) studio 8 drivers
    MF PMC 55mm (2?) soft dome mid-range
    HF PMC 27mm (1?) soft dome tweeter

    Effective ATL Length:
    3m (9.8ft)

    Frequency Response:
    25Hz - 25kHz (- 3dB) (@1m full space, on-axis)
    Sensitivity
    +4dBu input signal = 98dB SPL @ 1m

    Max continuous SPL:
    113dB @1m
    (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

    Max Peak SPL:
    125dB @1m
    (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

    Directivity:
    H+/-45 degrees
    V+/-50 degrees (-6dB off axis @10kHz)

    Input:
    XLR switchable between analogue & digital AES3

    Analogue input
    - +20/+24dBu max. input level (selectable)
    - 22K ohm input impedance

    Digital input
    - 16/24-bit AES3 signal, left, right or left + right
    - 18 - 192kHz Sample Rate
    - 110 ohm input impedance

    Expansion card slot
    - For future connectivity upgrades

    Output:
    XLR digital AES3 (fixed 24-bit @ 96kHz)

    Network:
    RJ45 for use with PMC SoundAlign web interface

    Features:
    Level Trim (+/-10dB)
    High-pass filter (20 - 200Hz, 12dB/Oct)
    Delay (0 - 30mS)
    Phase (normal or inverted)
    LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
    Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
    User presets (3 + factory defaults)

    Latency:
    2.4mS

    Amplifier power per channel:
    LF 2 x 400Wrms
    MF 1 x 400Wrms
    HF 1 x 400Wrms

    Mains:
    100 - 240VAC auto-switching, 50-60Hz (IEC C14)

    Power consumption (idle):
    50W

    Power consumption (max):
    1500W

    Cabinet dimensions:
    H 534mm (21?)
    W 551mm (21.7?)
    D 440mm (17.3?)

    Weight:
    39kg (86lbs) each

    Available Finishes:
    Studio black
