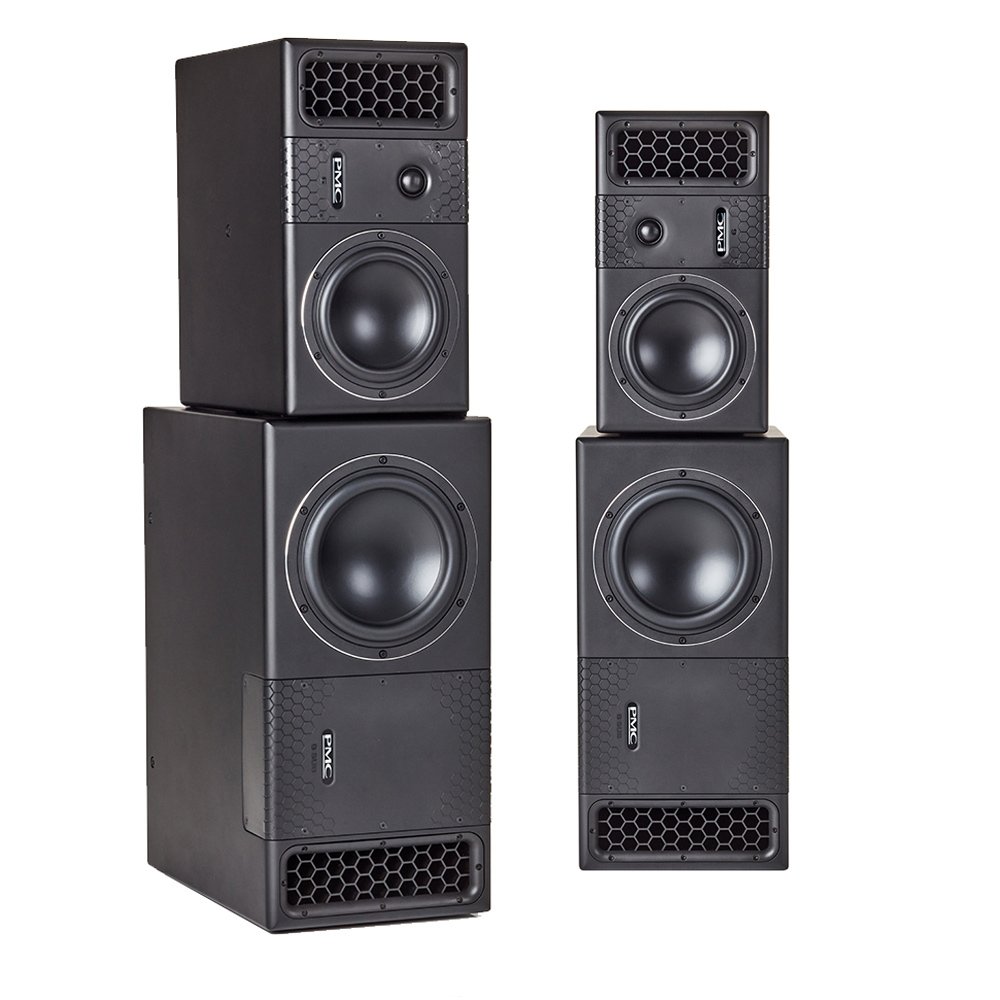

In the case of the PMC6, the bass response of the resulting XBD monitor combination is extended from 39Hz down to 25Hz " giving genuine midfield monitor performance in a compact installation " and the speaker becomes a true three-way design. Also, since the mid-bass driver no longer handles the lowest bass frequencies, distortion is reduced, headroom is extended, and the mid-range frequencies gain extra clarity to lend vocals still greater realism and depth.

It?s simple to configure the PMC6 XBD system; connect the input directly to the PMC6, and add an AES3 digital cable to carry the main monitor ?through? output down to the PMC8 SUB. The two cabinets can be connected either to a LAN or directly to each other via their network ports. When you select the dedicated ?XBD? mode the DSP seamlessly combines both units into a single, larger-scale monitor. Further detailed configuration can be carried out from the rear-panel controls or using the intuitive SoundAlign browser-based software via the LAN connection, where both speakers appear as a single PMC6 XBD unit when linked.

3-way active, twin cabinet, mid-field reference monitor with ATL bass loading

Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)

State-of-the-art Class-D amplifiers: HF 200W, LF 200W, SUB(XBD) 300W

Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)

Digital ?through? output (AES3 24-bit 96kHz)

SoundAlign network control interface for single or group EQ & settings

Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options

PMC6 SPECIFICATIONS
Type:
Active 2-way nearfield reference monitor with ATL bass loading

Drive Unit Complement:
LF PMC 150mm (6?) studio 6 driver
HF PMC 27mm (1?) soft dome tweeter

Effective ATL Length:
1.8m (5.9ft)

Frequency Response:
39Hz - 25kHz (- 3dB) (@1m full space, on-axis)

Sensitivity:
+4dBu input signal = 98dB SPL @ 1m

Max continuous SPL:
106dB @1m
(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Max Peak:
SPL118dB @1m
(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Directivity:
H +/-60 degrees V +50/-40 degrees (-6dB off axis @10kHz)

Input:
XLR switchable between analogue & digital AES3
Analogue input
- +20/+24dBu max. input level (selectable)
- 22K ohm input impedance
Digital input
- 16/24-bit AES3 signal, left, right or left + right
- 18 - 192kHz sample rate
- 110 ohm input impedance
Expansion card slot
- For future connectivity upgrades

Output:
XLR digital AES3 (fixed 24-bit @ 96kHz)

Network:
RJ45 for use with PMC SoundAlign web interface

Features:
Level Trim (+/-10dB)
Orientation (portrait, landscape, auto)
High-pass filter (20 - 200Hz, 12dB/Oct)
Delay (0 - 30mS)
Phase (normal or inverted)
LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
User presets (3 + factory defaults)
Latency
2.4mS
Amplifier power per channel
LF 1 x 200Wrms
HF1 x 200Wrms

Mains:
100 - 240VAC auto-switching, 50-60Hz (IEC C14)

Power consumption (idle):
35W

Power consumption (max):
400W

Cabinet dimensions Portrait:
H 400mm (15.7?)
W 215mm (8.5?)
D 372mm (14.6?)

Cabinet dimensions Landscape:
H 215mm (8.5?)
W 400mm (15.7?)
D 372mm (14.6?)

Weight:
11.1kg (24.4lbs) each

PMC8-2 SUB SPECIFICATIONS
Type
Active subwoofer with twin 8-inch bass drivers and ATL bass loading

Drive Unit Complement:
LF PMC 200mm (8?) studio 8 driver

Effective ATL Length:
3m (9.8ft)

Frequency Response:
25Hz - 500Hz (- 3dB) (@1m full space, on-axis)

Sensitivity:
+4dBu input signal = 98dB SPL @ 1m

Max continuous SPL:
109dB @1m
(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Max Peak SPL:
121dB @1m
(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Input:
XLR switchable between analogue & digital AES3
Analogue input
- +20/+24dBu max. input level (selectable)
- 22K ohm input impedance Digital input
- 16/24-bit AES3 signal, left, right or left + right
- 18 - 192kHz Sample Rate
- 110 ohm input impedance Expansion card slot
- For future connectivity upgrades

Output:
XLR digital AES3 (fixed 24-bit @ 96kHz)

Network:
RJ45 for use with PMC SoundAlign web interface

Features:
Level Trim (+/-10dB)
High-pass/Low-pass filter (20 - 200Hz, 12dB/Oct)
Delay (0 - 30mS)
Phase (normal or inverted)
LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
User presets (3 + factory defaults)

Latency:
2.4mS

Amplifier power per channel:
300Wrms

Mains:
100 - 240VAC auto-switching, 50-60Hz (IEC C14)

Power consumption (idle):
25W

Power consumption (max):
300W

Cabinet dimensions:
H 266mm (10.5?) W 551mm (21.7?) D 440mm (17.3?)

Weight:
18.5kg (40.8lbs) each

Available Finishes:
Studio black
