MPN #PMC6-2
PMC PMC6-2 - Single

$6745.00

Financing available
Free shipping in Canada. Conditions

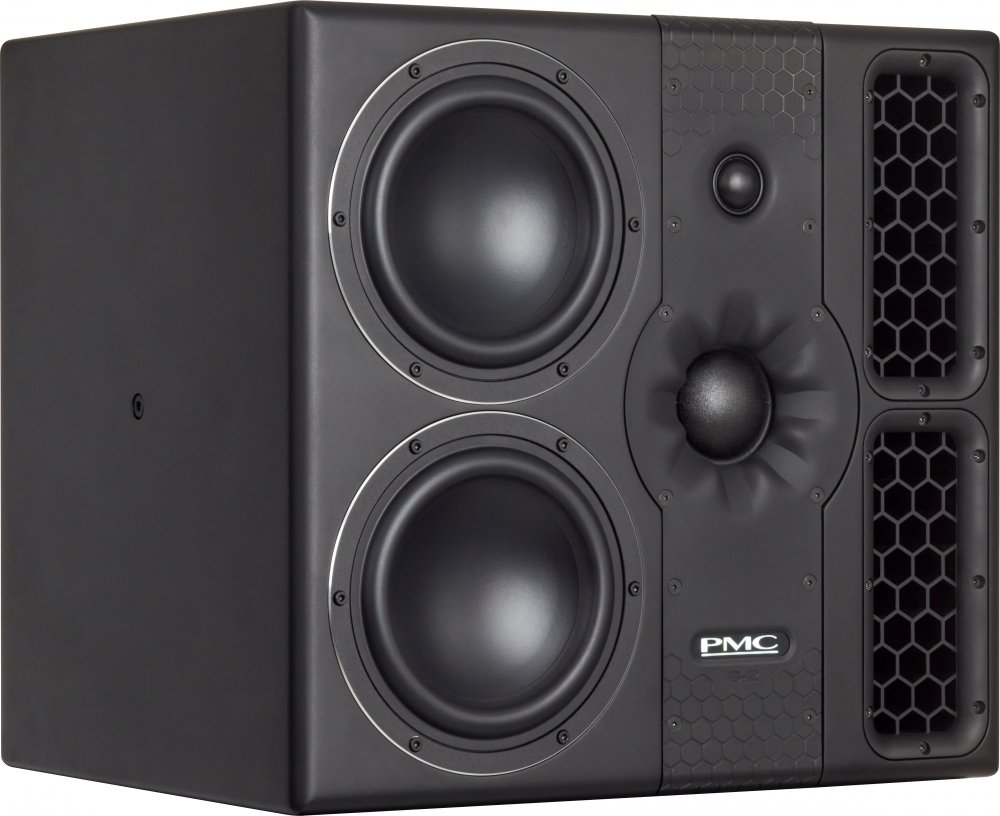

Active 3 way monitor with 2 x 6.5 inch bass units and 55mm Soft dome mid-range for near/midfield monitoring - single unit



The PMC6-2 provides main-monitor scale, depth, and dynamics, and allows mix decisions to be made quickly, with absolute certainty and without fatigue.

This 3-way active monitor speaker combines two custom 6-inch ultra-long-throw bass-drivers with our radically engineered PMC55 2-inch soft-dome mid-range unit and a precision-built one-inch soft-dome tweeter. The PMC55?s distinctive ?N-compass? waveguide enhances the wide dispersion and remarkable mid-range projection of the driver; in combination with the high performance of the tweeter, the result is an ultra-wide and stable image, with a smooth and natural in-room response. Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated by our sophisticated, highly accurate DSP-based crossovers. As with the PMC6, the monitor is configured using rear-panel controls or the browser-based SoundAlign software, with comprehensive boundary and EQ options.

The PMC6-2 offers astonishing size-to-performance ratio thanks to its ATL bass-loading technology, which results in exceptional LF extension and consistent tonal balance at all listening levels. Our Laminair airflow technology, visible in the monitor?s hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency.

A simple upgrade path converts the PMC6-2 to a full-range XBD system; just add a PMC8.2 SUB and select XBD mode to perfectly dovetail the two units, extending the response down to 25Hz with additional headroom.
  • Active 3-way nearfield reference monitor with ATL? bass loading
  • Frequency response: 33Hz - 25kHz (- 3dB @1m full space, on-axis)
  • Max. cont. SPL: 109dB @1m (Half space value calculated as +3dB from full space measurement.
  • Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
  • Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital ?through? output (AES3 24-bit 96kHz)
  • SoundAlign? network control interface for single or group EQ & settings
  • Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
  • PMC6-2 + PMC8-2 SUB = PMC6-2 XBD, with LF down to 25Hz & increased headroom
  • Ceiling-mount yoke allows suspension in multi-channel or immersive systems
  • Type:
    Active 3-way nearfield reference monitor with ATL bass loading

    Drive Unit Complement:
    LF 2 x PMC 150mm (6?) studio 6 drivers
    MF PMC 55mm (2?) soft dome mid-range
    HF PMC 27mm (1?) soft dome tweeter

    Effective ATL Length:
    2m (6.6ft)

    Frequency Response:
    33Hz - 25kHz (- 3dB) (@1m full space, on-axis)

    Sensitivity:
    +4dBu input signal = 98dB SPL @ 1m

    Max continuous SPL:
    109dB @1m
    (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

    Max Peak:
    SPL121dB @1m
    (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

    Directivity:
    H +/-50 degrees
    V +60/-40 degrees (-6dB off axis @10kHz)

    Input:
    XLR switchable between analogue & digital AES3

    Analogue input
    - +20/+24dBu max. input level (selectable)
    - 22K ohm input impedance Digital input
    - 16/24-bit AES3 signal, left, right or left + right
    - 18 - 192kHz Sample Rate
    - 110 ohm input impedance

    Expansion card slot
    - For future connectivity upgrades

    Output:
    XLR digital AES3 (fixed 24-bit @ 96kHz)

    Network:
    RJ45 for use with PMC SoundAlign web interface

    Features:
    Level Trim (+/-10dB)
    High-pass filter (20 - 200Hz, 12dB/Oct)
    Delay (0 - 30mS)
    Phase (normal or inverted)
    LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
    Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
    User presets (3 + factory defaults)

    Latency:
    2.4mS

    Amplifier power per channel:
    LF 2 x 400Wrms
    MF 1 x 400Wrms
    HF 1 x 400Wrms

    Mains:
    100 - 240VAC auto-switching, 50-60Hz (IEC C14)

    Power consumption (idle):
    50W

    Power consumption (max):
    1500W

    Cabinet dimensions:
    H 400mm (15.7?) W 430mm (16.9?) D 372mm (14.6?)

    Weight:
    21.3kg (47lbs) each Available Finishes: Studio black
