PMC MB3S XBD-A-C
MPN #MB3S-XBD-A-C

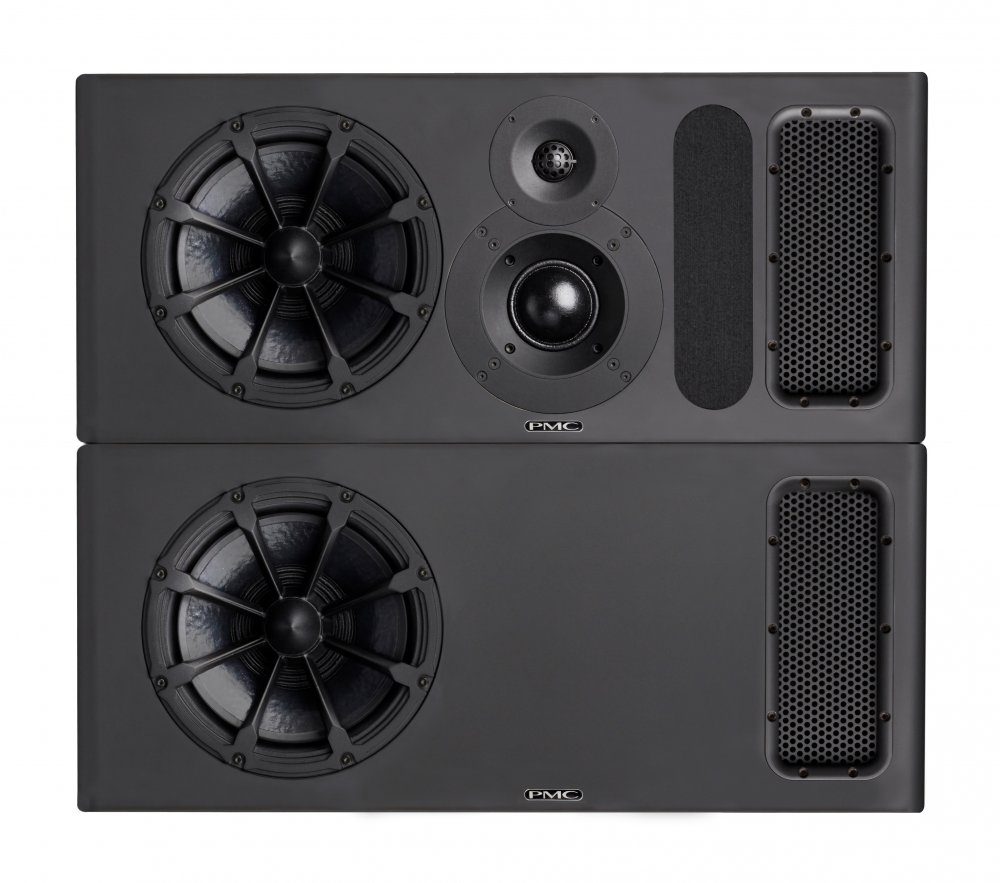

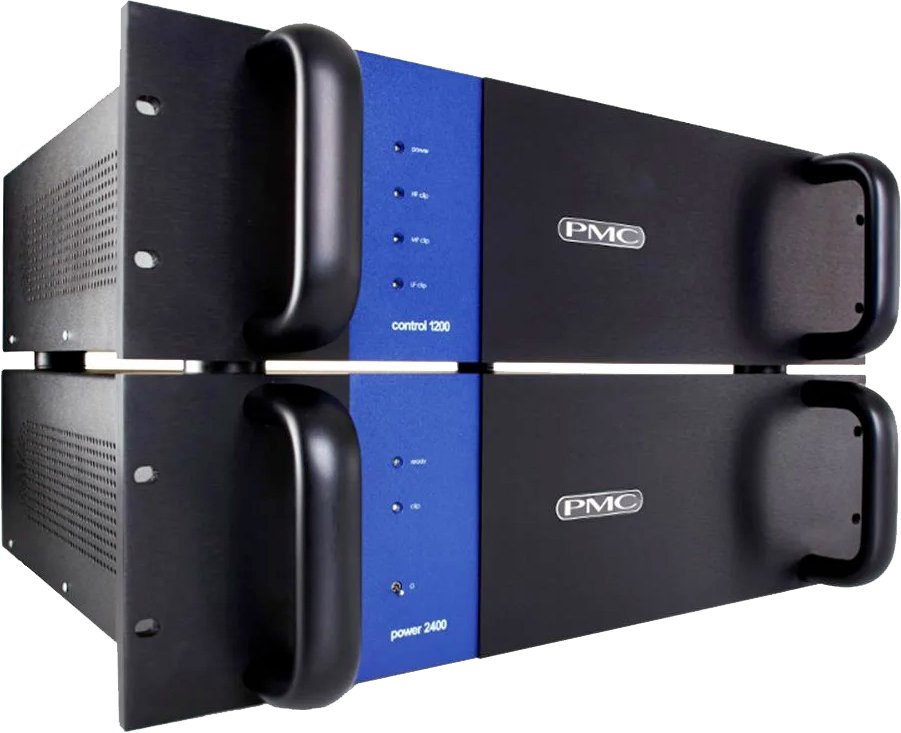

Dedicated 3-way ATL centre channel speaker for the MB3-A with PMC Control 1200, PMC Power 2400 and XBD cabinet
Featuring a second cabinet devoted exclusively to bass, with an additional single 12-inch Radial bass driver, the twin-cabinet MB3 XBD-A system offers still better dynamics than the MB3, with an additional 3dB of headroom below the bass crossover frequency of 380Hz, and allows larger rooms to be driven with an even smoother frequency response, producing a maximum SPL of 129dB.
The twin XBD cabinets can be freestanding or soffit-mounted, and may be positioned vertically or side by side for greater flexibility. As with the MB3-A, a matching low-profile centre channel (MB3 XBD-C-A) is available for use in multi-channel arrays. Thanks to the wide-ranging frequency response of the twin-cabinet system, additional dedicated subwoofers are not a requirement.
Features
Type: 3-way ATL active reference monitorFrequency response: 20Hz-25kHzPower per channel: 3225W (HF 275W, MF 550W, LF & LFX 2400W)Effective ATL length: 2 x 3 metresMaximum SPL: 129dB
Specifications
Available Finishes: Studio black
Crossover Frequency: 380Hz & 3.8kHz
Dimensions: H 1740mm (68.5 ") x W 380mm (15") x D 535mm (21")
Drive Units:

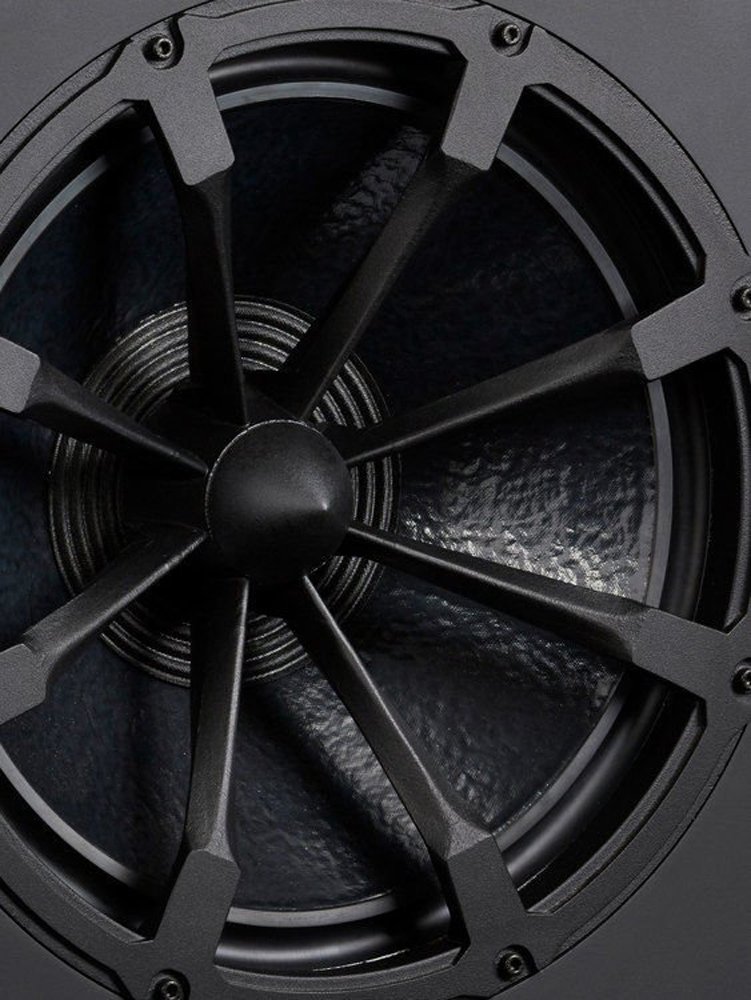

LF - 2 x PMC 310mm (12-inch) Radial driverMF - PMC hand built 75mm soft-dome driverHF - PMC 34mm soft-dome tweeter with acoustic radiatorEffective ATL Length: 2 x 3m (10ft)
Frequency Response: 20Hz - 25kHz
Impedance: Input Impedance 20k Bal
Input Connectors: AES3, 24-bit, 96kHz
Sensitivity: Adjustable +4 to +20dBu
Weight: 88kg (194 lbs) each
Amplifier Power per Channel:
LF - 1 x 2400WrmsMF - 1 x 550WrmsHF - 1 x 275Wrms
