PMC  |  SKU: 19162

MB3S XBD-A

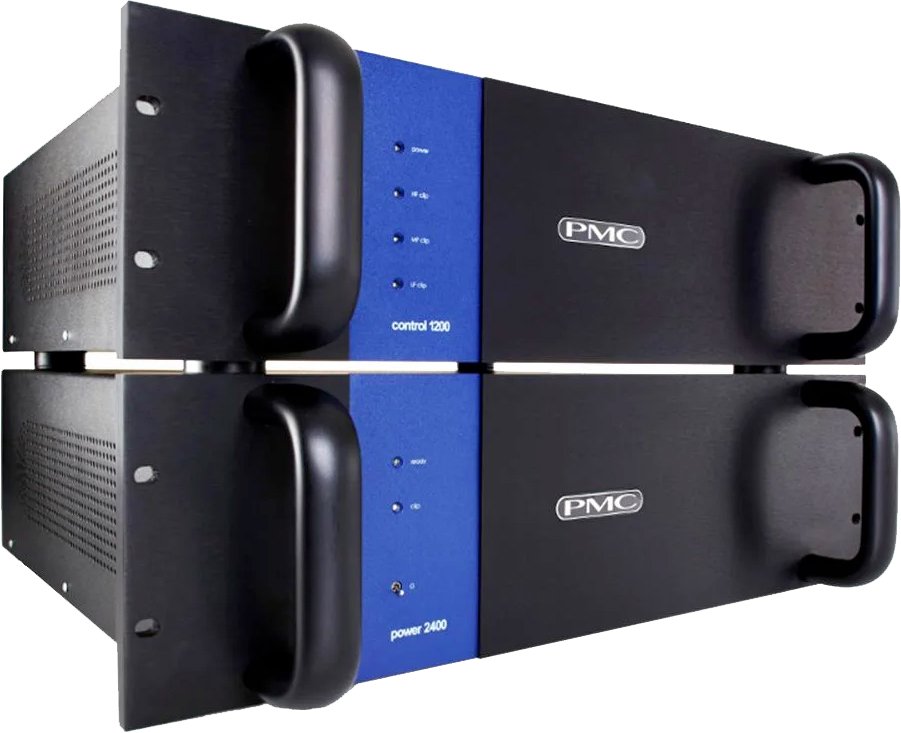

3-way ATL active reference monitor pair with dedicated PMC Control 1200, PMC Power 2400, and XBD cabinets per side and RC2 remote


$132,200.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

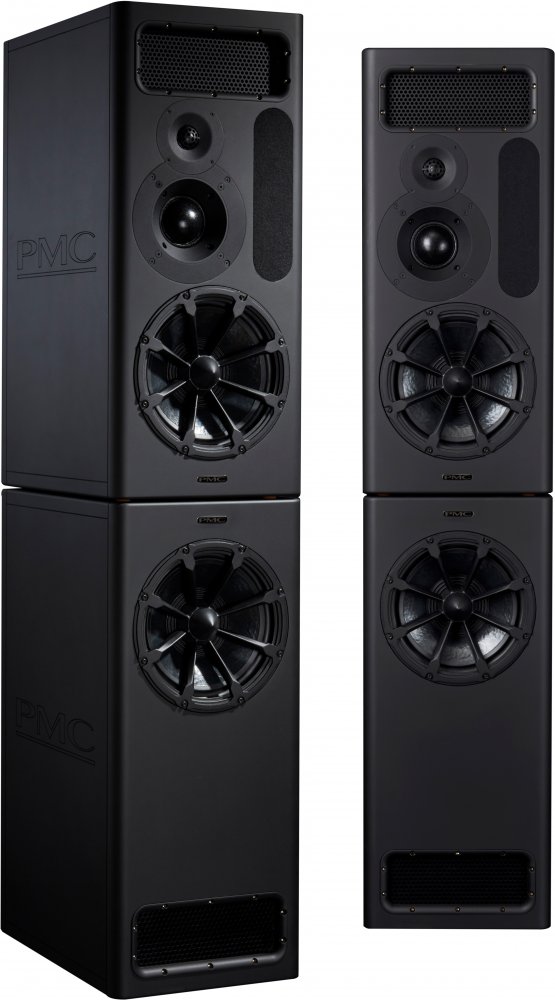

Featuring a second cabinet devoted exclusively to bass, with an additional single 12-inch Radial bass driver, the twin-cabinet MB3 XBD-A system offers still better dynamics than the MB3, with an additional 3dB of headroom below the bass crossover frequency of 380Hz, and allows larger rooms to be driven with an even smoother frequency response, producing a maximum SPL of 129dB.

The twin XBD cabinets can be freestanding or soffit-mounted, and may be positioned vertically or side by side for greater flexibility. As with the MB3-A, a matching low-profile centre channel (MB3 XBD-C-A) is available for use in multi-channel arrays. Thanks to the wide-ranging frequency response of the twin-cabinet system, additional dedicated subwoofers are not a requirement.

Features

Type: 3-way ATL active reference monitor

Frequency response: 20Hz-25kHz

Power per channel: 3225W (HF 275W, MF 550W, LF & LFX 2400W)

Effective ATL length: 2 x 3 metres

Maximum SPL: 129dB

Specifications

Available Finishes: Studio black
Crossover Frequency: 380Hz & 3.8kHz
Dimensions: H 1740mm (68.5 ") x W 380mm (15") x D 535mm (21")
Drive Units:

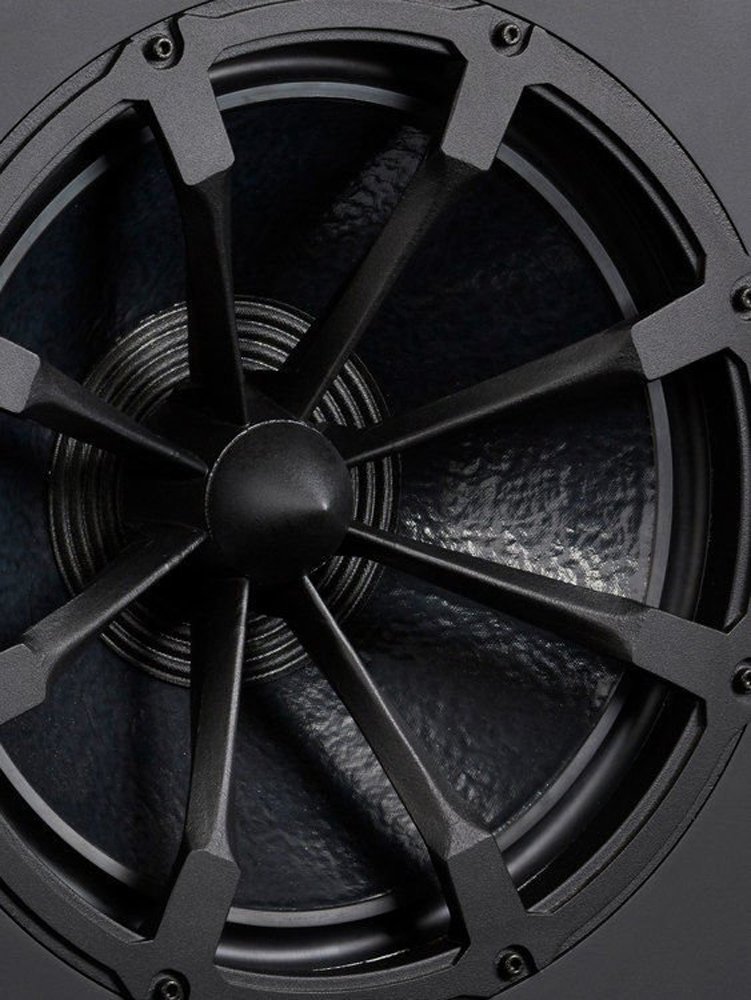

LF - 2 x PMC 310mm (12-inch) Radial driver

MF - PMC hand built 75mm soft-dome driver

HF - PMC 34mm soft-dome tweeter with acoustic radiator

Effective ATL Length: 2 x 3m (10ft)
Frequency Response: 20Hz - 25kHz
Impedance: Input Impedance 20k Bal
Input Connectors: AES3, 24-bit, 96kHz
Sensitivity: Adjustable +4 to +20dBu
Weight: 88kg (194 lbs) each
Amplifier Power per Channel:

LF - 1 x 2400Wrms

MF - 1 x 550Wrms

HF - 1 x 275Wrms
