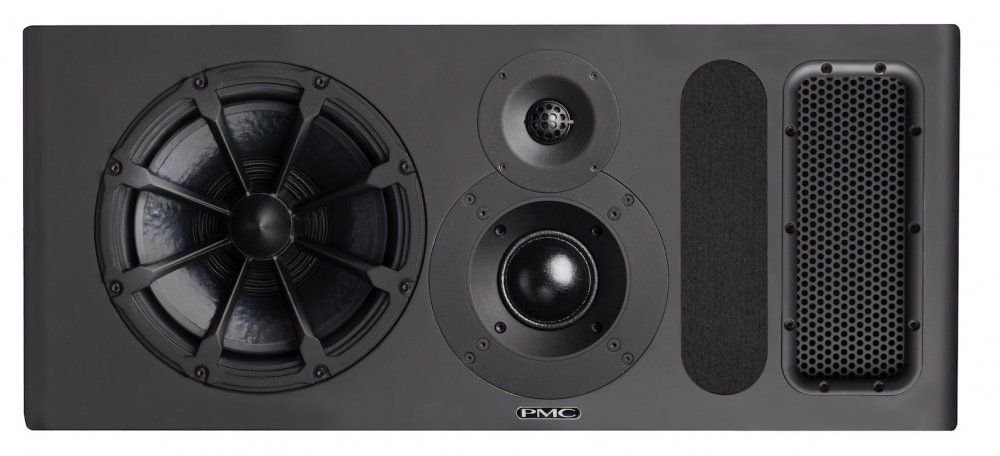

PMC MB3S-A-C
MPN #MB3S-A-C

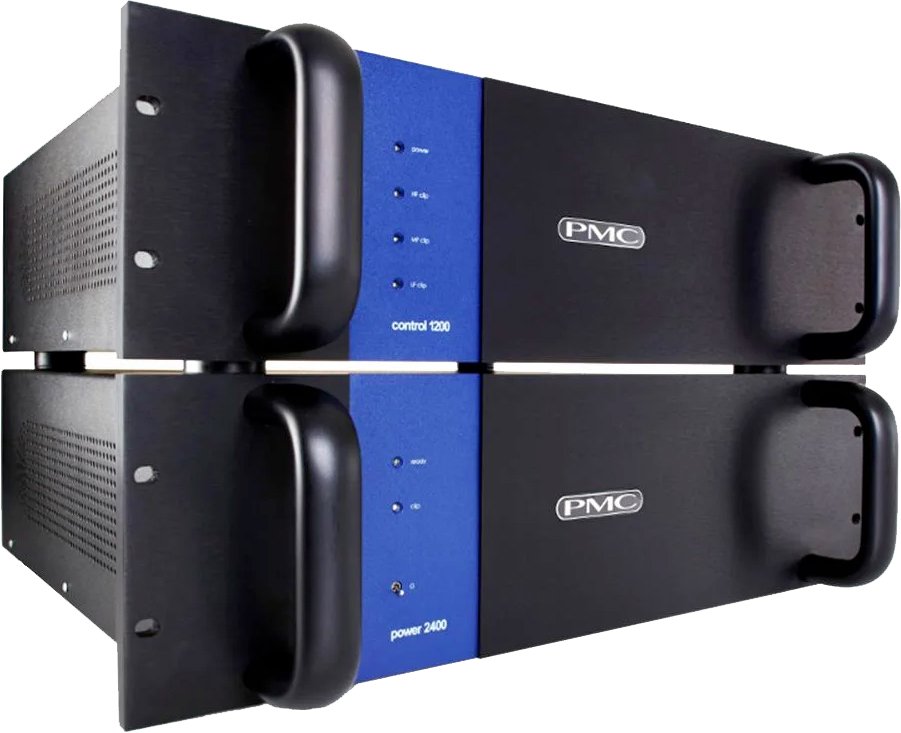

3-way ATL active reference monitor pair with dedicated PMC Control 1200 and PMC Power 2400
The PMC MB3-A produces an extremely smooth frequency response extending from 20Hz to 25kHz thanks to its ATL technology, and is also capable of producing high SPLs, to a maximum of 126dB, but without the distortion and loss of definition that are frequently associated with a device of its size, and without becoming fatiguing when used for extended periods.
As with all PMC models, there is a matching low-profile centre channel (MB3-C-A) for use in surround configurations. Dedicated subwoofers are not a necessity, as the MB3-A cabinets already cover the 20-60Hz sub-bass frequency range with ease. For this reason, ?PointOne' channel inputs are included on the Control 1200 to accommodate the LFE or sub channel from multi-channel mixes.
Features
Type: 3-way ATL active reference monitorFrequency response: 20Hz-25kHzPower per channel: 3225W (HF 275W, MF 550W, LF 2400W)Effective ATL length: 3 metresMaximum SPL: 126dB
Specifications
Available Finishes: Studio black
Crossover Frequency: 380Hz & 3.8kHz
Dimensions: H 870mm (34.2?) x W 380mm (15?) x D 535mm (21?)

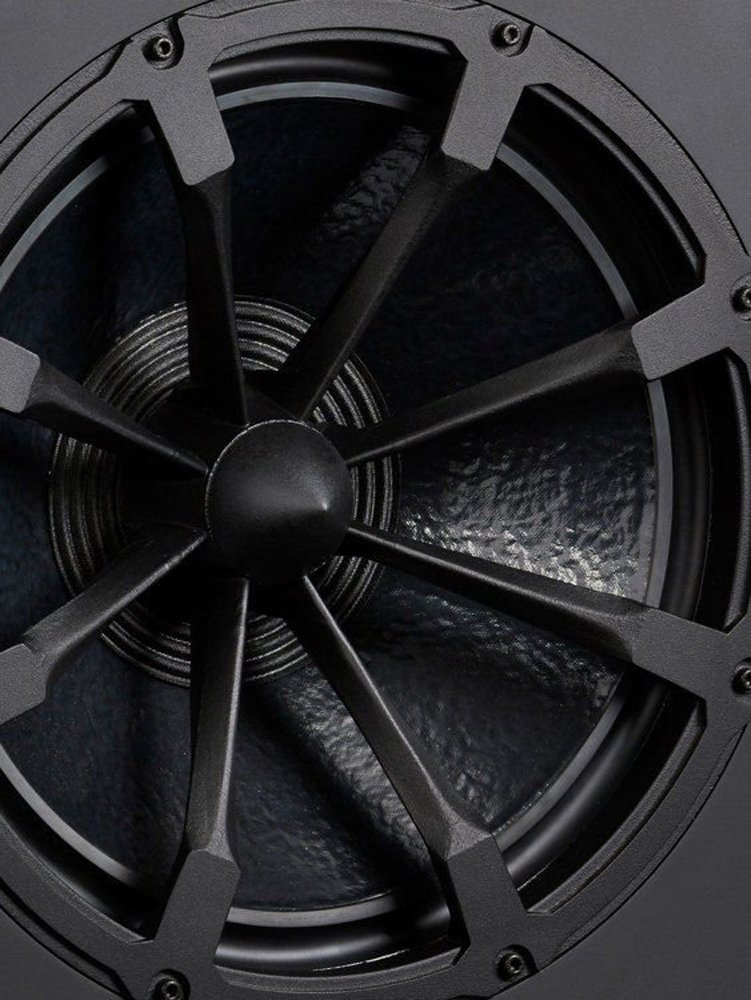

Drive Units: LF " PMC 310mm (12-inch) Radial driver
MF " PMC hand built 75mm soft-dome driver
HF " PMC 34mm soft-dome tweeter with acoustic radiator
Effective ATL Length: 3m (10ft)
Frequency Response: 20Hz " 25kHz
Impedance: Input Impedance 20k Bal
Input Connectors: AES3, 24-bit, 192kHz
Sensitivity: Adjustable +4 to +20dBu
Weight: 49kg (108 lbs) each
Amplifier Power per Channel:
LF " 1 x 2400Wrms
MF " 1 x 550Wrms
HF " 1 x 275Wrms
