Phoenix Audio N-8 DI
UPC/EAN #757440437360
MPN #N-Eight
$2365.00
Save 6.8%, MSRP $2537.00
Eight channel DI, with Class A, discrete, 10 MegaOhm inputs, Class A, discrete output amps & custom wound UK outputtransformers on every channel
The N8 was also designed to be compact, rugged and road worthy so making it an excellent companion for live touring, broadcast or for more traditional recording studios where you need excellent direct inputs. The unit features an external 24V PSU with lockable connector so can easily be portable wherever you go.
Its an excellent choice for guitar, bass or keyboards and many, many other instruments and the 10M ohm impedance means that you get the true & accurate sound of your instrument always without any sonic sacrifices.
Features

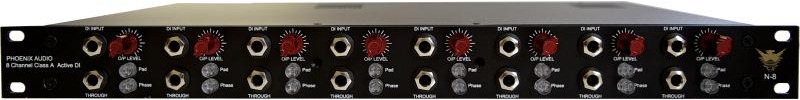

8 channels of our famous Class A, discrete, transistor input stageHigh Impedance 10 meg ohm inputs for every instrument choice8 channels of our proven and loved Class A, discrete output with our custom wound output transformerIndividual level stepped pots for output control for each channel with huge gain range8 x Unbalanced TS Input jacks inputs8 x Unbalanced TS through jacks inputs8 x Balanced main outputs on D-sub (Tascam DA88 wired)8 x Balanced monitor outputs on D-sub (Tascam DA88 wired)Pad on every channel (15db) with illuminated switchPhase reverse on every channel with illuminated switchEarth ground lift on every channel with illuminated switch1U chassis rack spaceExternal 24v PSU with lockable connectorHuge headroom available on all channels.
Specifications

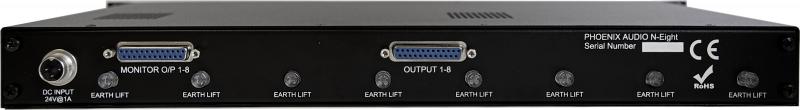

Gain range : 30dBFrequency Response: 20Hz to 20Khz +/- 0.5dBMaximum Output: +26dBu @ 1KhzNoise: -90dB @ 22Hz to 22KHzAdvantages: The Class A DI has a very high input impedance (10Mohm), without the use of FET's. This means that the guitar pickups are not loaded as with a lower impedance input, and so allows every transient to be reproduced, making even a cheap guitar sound exceptional.Inputs: 1/4 jack (TS) input on the front panelInputs: 1/4 jack (TS) through on the front panelOutput configuration: Transformer isolated, main balanced output (D-sub wired to Tascam DA88 standard) on the rear panelOutput configuration: Transformer isolated, monitor balanced output (D-sub wired to Tascam DA88 standard) on the rear panel that can be used in conjunction with main outputs.Fully compliant external 24v: @ 1amp PSU with lockable connectorPad: on every channel (15db) with illuminated switchPhase reverse: on every channel with illuminated switchEarth ground lift: on every channel with illuminated switch
