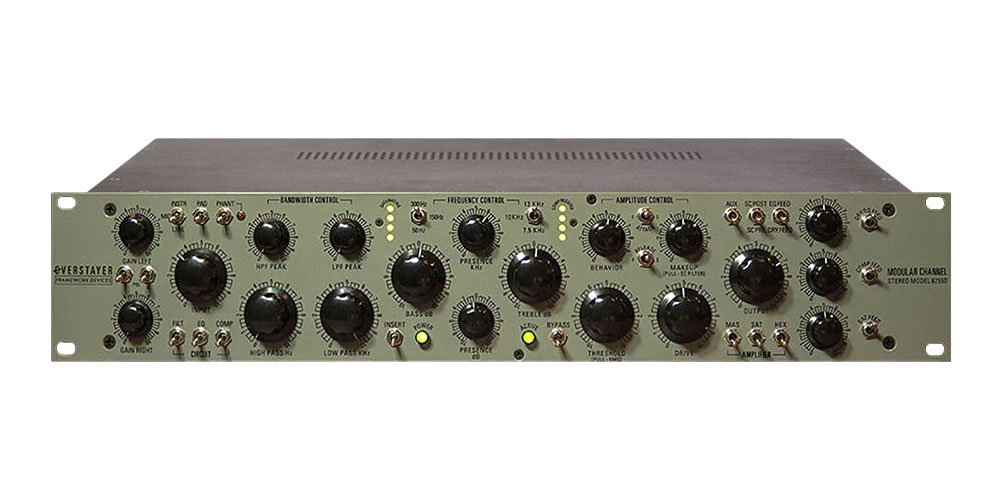

Overstayer Modular Channel 8755 DM-LI
MPN #Modular Channel 8755DM-LI
Stereo channel strip, VCA compression, resonant HP/LP filters, 3-band EQ, harmonic stages, mixer matrix, mic/line/inst inputs, parallel/series routing
The Overstayer Modular Channel 8755DM-LI is a versatile stereo channel strip that blends filters, EQ, compression, and harmonic enhancement in one powerful unit. Designed with a console-like aesthetic, it preserves the fidelity of a full mix while offering the flexibility to push into bold, creative extremes. Its carefully tuned circuits and high-quality components make it equally at home in tracking, mixing, or mastering setups.
The 8755DM-LI adds transformer-coupled microphone inputs with pad, polarity, and phantom power to the already comprehensive feature set. Sculpt tones with wide-ranging resonant filters, musical shelving EQ, and a fully sweepable proportional-Q mid band. Shape dynamics using the VCA compressor with peak/RMS detection, sidechain options, and unique BEHAVIOR control. Engage the independent harmonic stages for subtle coloration or rich saturation. At the heart of the unit is a series/parallel mixer matrix, allowing seamless blending of dry, EQ'd, compressed, and saturated signals with flexible routing. The result is a true modular channel that gives engineers and producers a wide palette of tonal control without compromising signal integrity.
Features
Stereo signal path: Designed to handle full mixes with console-level fidelity.Mic, line & instrument inputs: Transformer-coupled mic preamps (with pad, polarity & phantom power), balanced line inputs, and high-impedance instrument inputs.Powerful filters: Wide-ranging high/low-pass filters capable of resonating to full oscillation.Versatile EQ: High/low shelves with selectable frequencies plus a fully sweepable proportional-Q mid band.VCA compression: With peak/RMS detection, 3 attack/release settings, behavior control, sidechain HPF & external sidechain input.Harmonics stages: Independently engageable for rich saturation and color.Mixer matrix: Dry, EQ, compressor, and saturation paths blendable in series or parallel with dedicated faders and mute switches.Rear-panel I/O: Direct preamp outs, insert send/return, expansion ports, balanced outs, external sidechain input.
Specifications
General Specifications:
Model: Modular Channel 8755DM-LIType: Stereo modular channel with filters, EQ, compression, harmonics, and routing matrixFormat: 19 inch rackmountRack Height: 2UCircuit: Solid stateChannels: StereoApplication: Tracking, mixing, mastering
Inputs/Outputs:
Balanced line inputs (L/R)High impedance unbalanced instrument inputs (TS, L/R)Balanced line inputs via input transformers (LINE IN 2, L/R)Transformer-coupled microphone inputs with pad, polarity, phantom power (MIC IN, L/R " DM version only)Balanced line outputs (L/R, pin 3 floating for unbalanced)Preamp direct outputs (L/R)Insert send/return (L/R)External sidechain input for compressorAUX and PORT expansion ports (L/R)DC power input
Filters:
High-pass and low-pass filtersWide frequency rangeCapable of resonating to full oscillation
Equalizer:
High and low shelves with 3 selectable frequencies eachFully sweepable proportional-Q mid band
Compressor:
VCA design with peak and RMS detectors3-position attack and release controlsBEHAVIOR control for character shapingSidechain high-pass filterExternal sidechain input
Harmonics Section:
Independent harmonic stagesSelectable engagement in any combination
Mixer Matrix:
Series/parallel routing with dedicated dry/EQ, compressor, and saturated path fadersMute switches per pathComposited mixing flexibility
Construction:
High-quality components and circuitry designed to preserve fidelity across full mixesConsole-like design aesthetic with potential for both subtle and extreme processing
