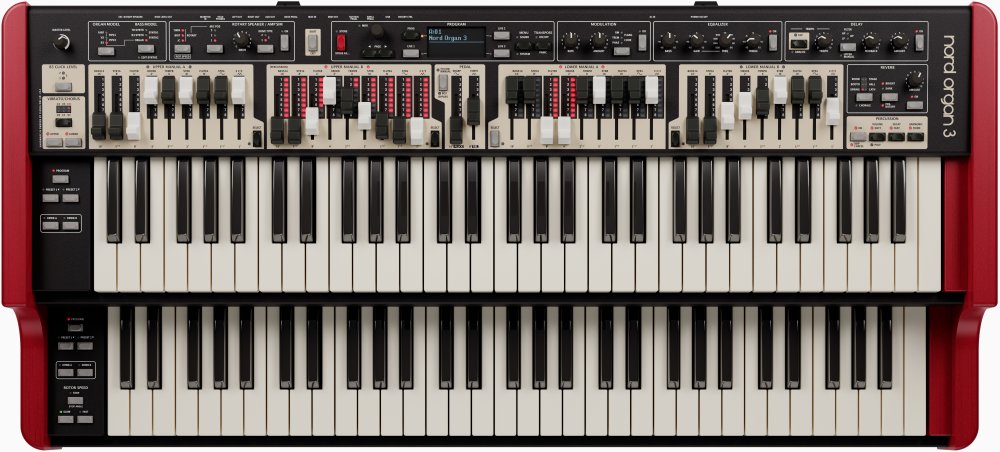

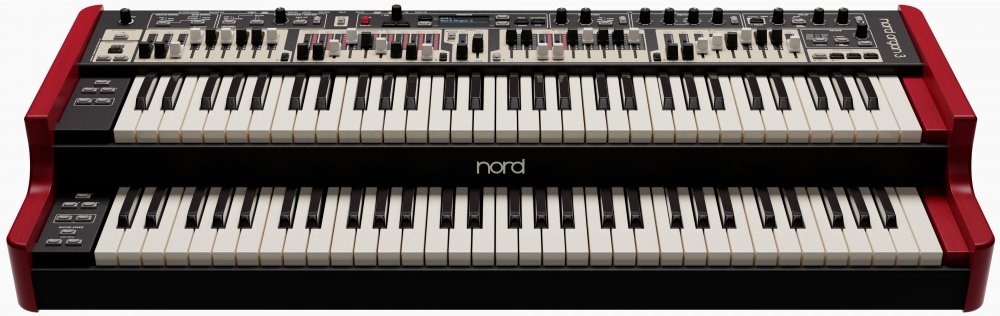

Nord Organ 3
UPC/EAN #834035001707
MPN #NORDORGAN3
Keyboard with enhanced organ engine for realistic sound, modulation effects, new rotary speaker emulation, triple-sensor keybed, and OLED display
The Nord Organ 3 is a stunning reimagination of the acclaimed Nord Organ series, designed to elevate the performance, sound, and playability of this beloved instrument. This next-generation organ offers an advanced engine with refined tonal realism, expanded modulation effects, and a highly realistic rotary speaker emulation. With these enhancements, the Nord Organ 3 is tailored for professional musicians seeking an immersive and authentic organ-playing experience.
The thoughtful design includes an OLED display for ease of navigation, a triple sensor keybed for superior response, and LED indicators for drawbar presets. New auxiliary output options, an enhanced B3 organ model, and improved Farfisa and Vox emulations add further versatility. Additionally, the instrument features two distinct pipe organ sounds, a rich bass synth engine, and a wide array of modulation effects like Phaser, Tremolo, and Ring Mod. The revamped reverb section, delay features, and detailed rotary and amp modeling ensure that the Nord Organ 3 delivers a sophisticated and dynamic sound tailored to any setting.
Features
OLED display with a new panel design.Triple sensor keybeds for better playability.LED indicators for drawbar presets.Aux output with flexible routing options.Per program Transpose function.11-pin Leslie connector and high-level output.Enhanced B3 organ model with improved Chorus/Vibrato.Upgraded Farfisa and Vox organ models.New Rotary Speaker emulation with adjustable mic placement and drive options.British amp and speaker emulation with additional settings.Two distinct Pipe Organ emulations.New Synth Bass options inspired by classic pedal synthesizers.Expanded reverb options, including a new Spring reverb and Pre-Rotary setting.Analog-style delay with advanced filters.New modulation effects: Phaser, Tremolo, Ring Mod, Flanger, and Chorus.Equalizer with a sweepable mid band.
Specifications
General
Master Level ControlOLED displayTranspose button2 Drawbar sets per manual1 LED indicator set per manualPedal drawbarsAux output for optional Bass/Pedal routing400 Program locations3 Live Programs1 Program and 2 Preset buttons per manualDrawbar A and B selector buttons per manual
Organ section
B3, Vox, Farfisa models with full polyphony2 Pipe Organ models with full polyphonyOrgan Bass models: B3, Vox, Farfisa and PipeSynth Bass models: B3 synth, Trek and TaurusPercussion Controls with Poly and DB9 Cancel optionsVibrato/Chorus with B3 Deep mode
Rotary Speaker/Amp Section
Brand new Rotary Speaker emulationMultiple options for microphone placement3 Drive Types and Drive amount controlJC, Brit and Twin amp and speaker emulations
Effects
Modulation: Phaser, Tremolo, Ring Mod, Flanger and Chorus with Rate and Amount controls3-band Equalizer with sweepable middle bandDelay: Analog mode, LP/HP/BP Feedback filters, Feedback Amount, Dry/Wet control, Tempo control with Tap option, Upper Manual only modeReverb: Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option and Amount control
Keyboard
2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard
Connections

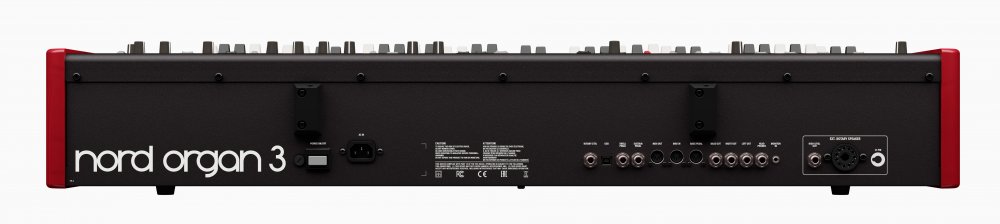

Stereo Headphone Output - ¼", 6,35 mm stereo jack2 Line Level Audio Outputs, L & R - ¼", 6,35 mm jacks, unbalanced11-pin Leslie standard connectorHigh Level Out ¼", 6,35 mm jackAux Out ¼", 6,35 mm jackMonitor Input - 1/8", 3,5 mm stereo jackSustain Pedal Input - ¼", 6,35 mm jackRotor Control Input - ¼", 6,35 mm jack, Half-Moon Switch or momentary pedalSwell Pedal Input - ¼", 6,35 mm TRS stereo jackMIDI In - 5 pin DIN connectorMIDI Out - 5 pin DIN connectorBass Pedal MIDI In - 5 pin DIN connectorUSB - type B connectorIEC C14 power connector
Dimensions
985mm(38,8") x 165mm (6,5") x 446mm (17,6")
Weight
17kg (37.5lbs)
Included Accessories
User ManualPower cord
Optional Accessories
Nord Pedal Keys 25Nord Pedal Keys 27Half-Moon SwitchNord Organ StandNord Single Pedal 1Nord Single Pedal 2Nord Triple Pedal 1
